5-14
ROTALIGN 01.2000
2) Enter dimensions

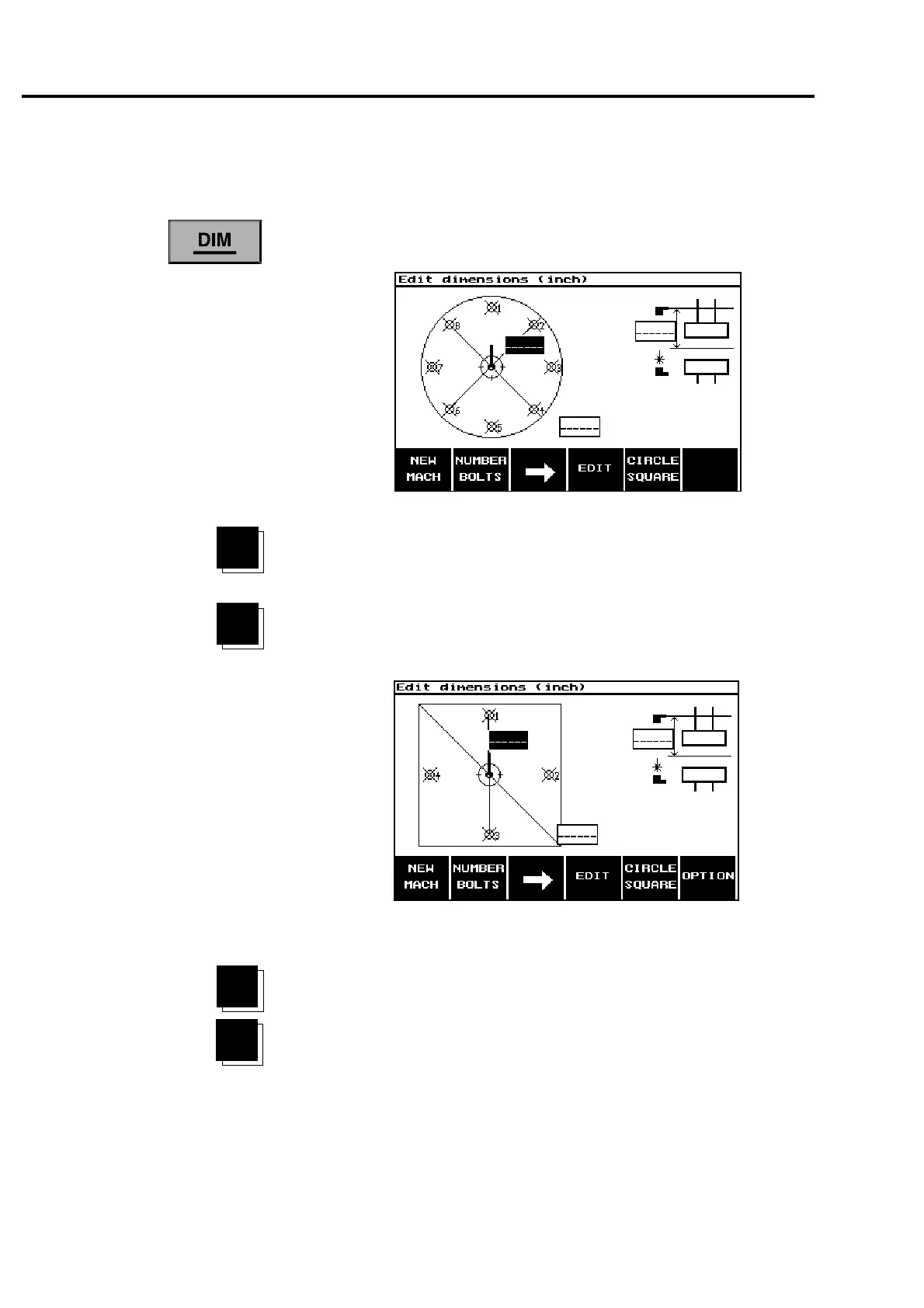

a) The flange dimension screen appears as shown below:
OPTION
EDIT
NUMBER
BOLTS
CIRCLE
SQUARE
b) The default bolt pattern is circular. Press CIRCLE/SQUARE once
to change this to a circular bolt pattern within a square flange
(see page 5-11).
c) The default shows a flange with 8 bolts. To change this to the
two-bolt flange with four shimming locations, press NUMBER
BOLTS, then "4," then press ENTER.
d) Since the two-bolt flange is not symmetrical, set the proper
flange dimensions:
1. Press the OPTION key. The vertical distance between bolts
is now highlighted in the displayed end view of the flange.
2. Enter the (vertical) distance between the centers of the
flange bolts. Press ENTER to confirm the entry.
(Note: for this and all other entries, the EDIT key may be
pressed, if desired, in order to display a description of the
required dimension in the status line at the top of the
screen.)
3. Enter the (horizontal) distance between the centers of the
left and right flange shimming locations. Press ENTER to
confirm the entry.
(The diagonal dimension is calculated automatically and can be
ignored for machines with two-bolt flange mountings.)
Flange-mounted horizontal machines
