8. Results

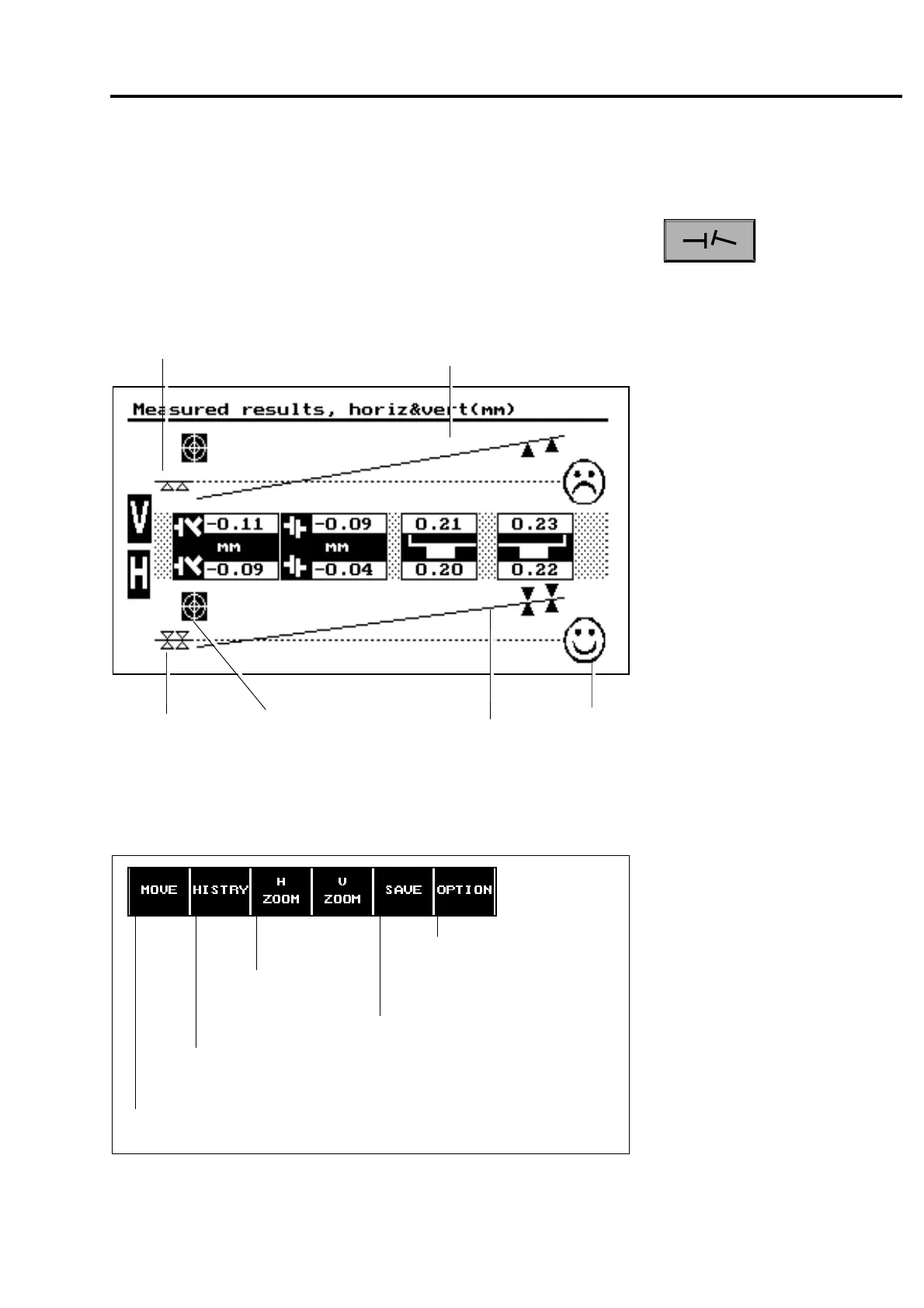

Press the RESULT key to display a graph of the alignment condition in
both vertical and horizontal directions:
Target values
are set (see
OPTION)
In / out of
tolerance!
(see OPTION)
Right machine
horizontal align-
ment viewed from
above with 4
machine feet
Show horiz. or
vert. graph only
page 4-52
Store results in a
table as a history
of the machine
page 4-58
Move and align
machine
page 4-51
Save results to a file
page 4-55
Softkeys in
Results screen
page 4-57
LEFT MACHINE vertical position viewed
from side and resting on feet
RIGHT MACHINE vertical alignment
viewed from side resting on feet
HORIZONTAL
ALIGNMENT
as viewed from
ABOVE
VERTICAL
ALIGNMENT
as viewed
from SIDE
Horizontal machine alignment - results
