The ROTALIGN package ALI 3.500
ALI 3.500EX

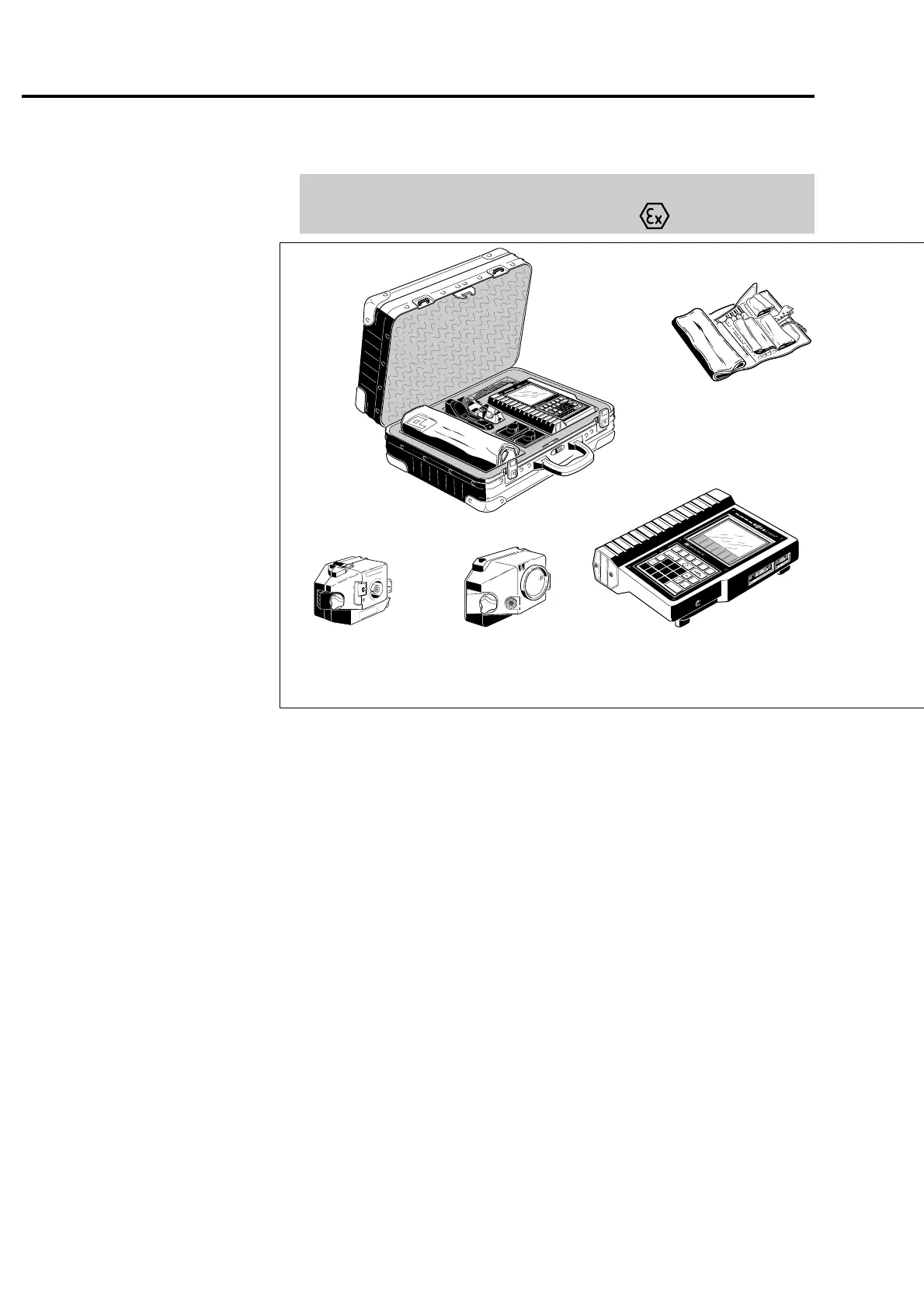

The ROTALIGN package contains the following items:
(Please see page 1-6 for further information on the intrinsically safe
version ALI 3.500EX.)
ALI 3.585 ROTALIGN Case (ABS, black), complete with key and
combination locks (page 6-14).
ALI 3.550 ROTALIGN Computer
Processes alignment measurements and displays results. Battery or
mains operated (page 2-3).
ALI 3.610 ROTALIGN Laser incl. dust cap, incl. 9 V battery
Mounted on left side of the machine coupling (page 2-13).
ALI 3.600 ROTALIGN Receiver incl. dust cap
Mounted on right side of coupling and connected to computer (page
2-15).
ALI 3.581-2 ROTALIGN Receiver cable 2 m (6½ ft.)
Connects receiver to computer (page 2-7).
ALI 2.891set Compact chain-type bracket set in pouch
Used to mount the components on the machine shaft (page 2-16).
