5-15
ROTALIGN 01.2000

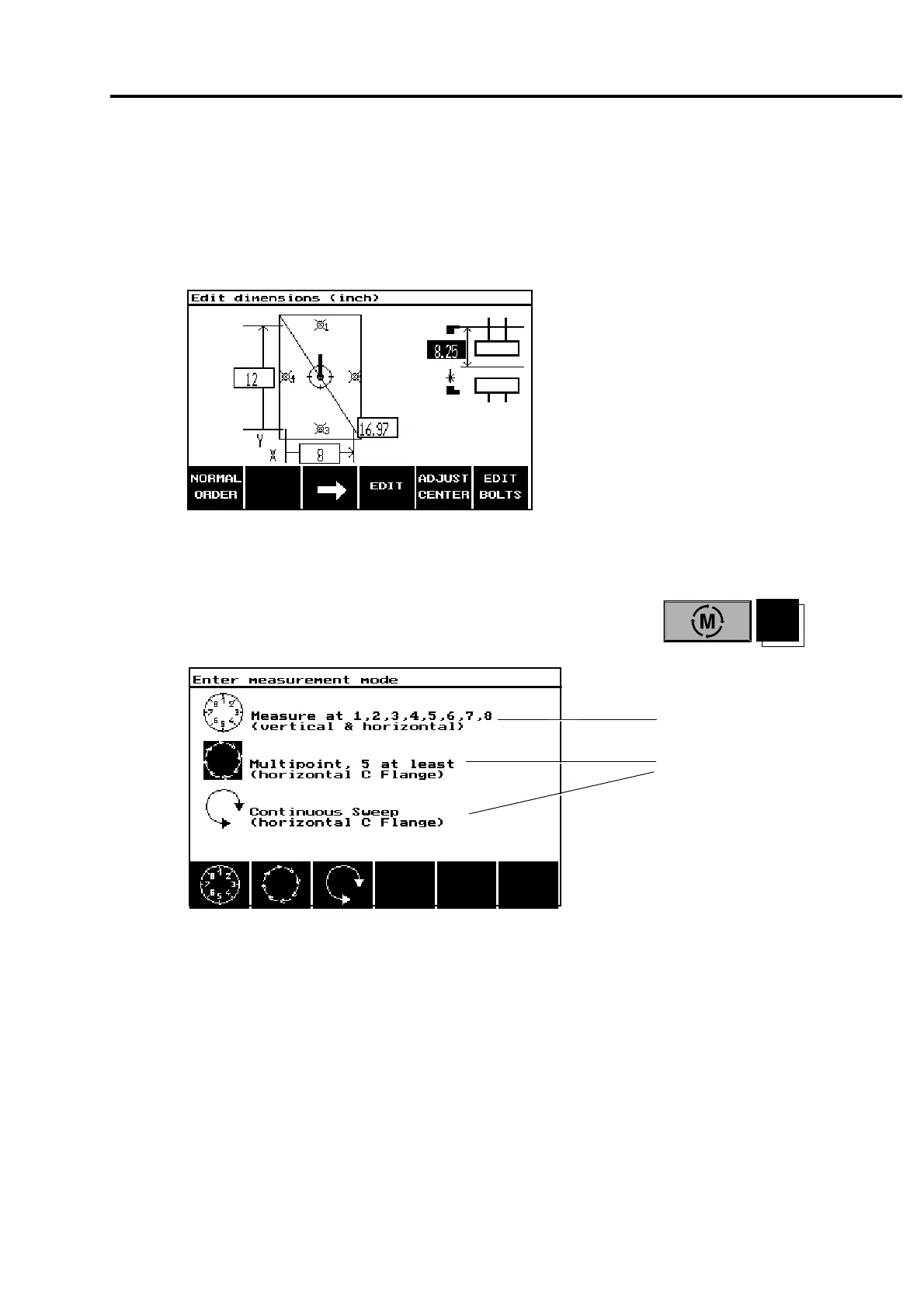

e) Press the arrow key to proceed to the distance between coupling
center and ROTALIGN receiver. Key in this distance and confirm
with the ENTER key.
For vertical machinery with bolt
flanges
For horizontal machinery with two-
bolt flanges
MEAS
MODE
3) Measure
Since the flanged machines under consideration here are mounted
horizontally, a wider choice of measurement methods is available.
a) Press the M key to open the measurement screen, then press the
MEAS MODE softkey to obtain the following display:
The lower two options rely on the inclinometer in the receiver to
determine rotational position; these are, therefore, reserved for
horizontal shafts.
b) Press the corresponding key to select the desired measurement
method.
Center the laser beam and proceed with measurement as would
be done for a standard horizontal machine (see page 4-34).
Flange-mounted horizontal machines
