4-8
ROTALIGN 01.2000

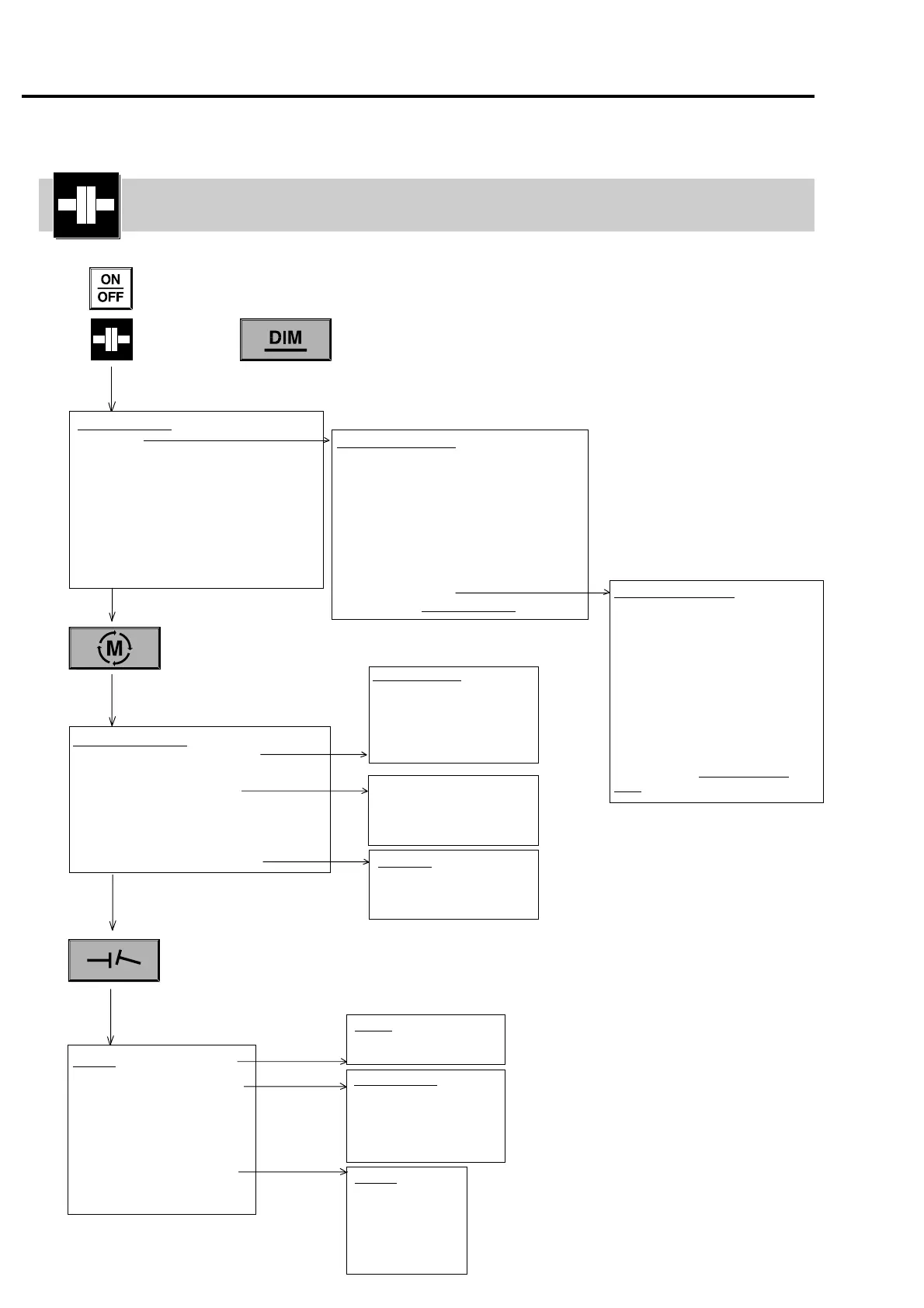

Horizontal machine alignment flow chart
Horizontal machine alignment flow chart
Edit dimensions (page 4-21)
OPTION :
EDIT :
Coupling diameter
Coupling spacing (spacer shaft only)
Coupling center to receiver
Receiver to front foot, right machine
Foot spacings (depending on type)
V-form angles (V-form only, page 4-18)
RPM (if TABLE tols selected, page 4-62)
NEW MACH (clears all entries)
Start measurement (page 4-28)
MEAS MODE
TABLE (view & average measurements)
XY VIEW (sensor readouts)
TAKE POINT ("Multipoint" mode)
START (for the other modes), STOP
Arrow selects point (except in Cont.
sweep)
CLR deletes selected point
SOFT FOOT
To review
dimensions
later press:
Select machine type (page 4-17)
L ? R (left/right machine)
EDIT NAME (press ENTER to return)
UP/DOWN (select type) :
CPLG TYPE:
OK returns to Edit dimensions
Normal 4 feet
6 Feet
Single bearing
V form
Stationary (left
only)
Select coupling type (page 4-19)
Short flex
Single plane
Spacer shaft
CHANGE MODE:
OK returns to Select coupling
type
TYPE MODES
Short flex: Angle/offset
Gap/offset
Single plane: Angle/offset
Spacer shaft: Alpha/beta
Offsets a & b
Results (page 4-49)
MOVE
HISTRY (history of results)
BOTH (horiz. and vert. move)
H ZOOM (horiz. with tols)
V ZOOM (vert. with tols)
SAVE (page 4-55)
OPTION (setup summary)
Option (page 4-57)
STATIC FEET
TARGET
THERM GROWTH
TOL
H ? V
Result History (page
4-58)
DELETE
SHOW GRAPH
ADD TO HISTRY
H ? V
Measure mode (page 4-33)
Continuous sweep
Measure at 0,3,6,9
Multipoint (5 at least)
Pass mode (uncoupled)
Dial gage values
Range extend (4-46)
Curve fit (4-45)
Average (page 4-44)
Soft foot (page 4-29)
Select foot:
Loosen foot, press STOP
and retighten
MOVE (page 4-51)
Autostart
XY VIEW
