Horizontal machine alignment - machines dimensions
OPTION
Machine setup
The MACHINE SETUP can be selected from either the Dimensions
screen with the OPTION softkey (see page 4-16) or from the Menu.
Machine Setup allows selection of horizontal machine and coupling
types, and you can give each machine a reference name. The setup
determines how calculations will be made during program operation.

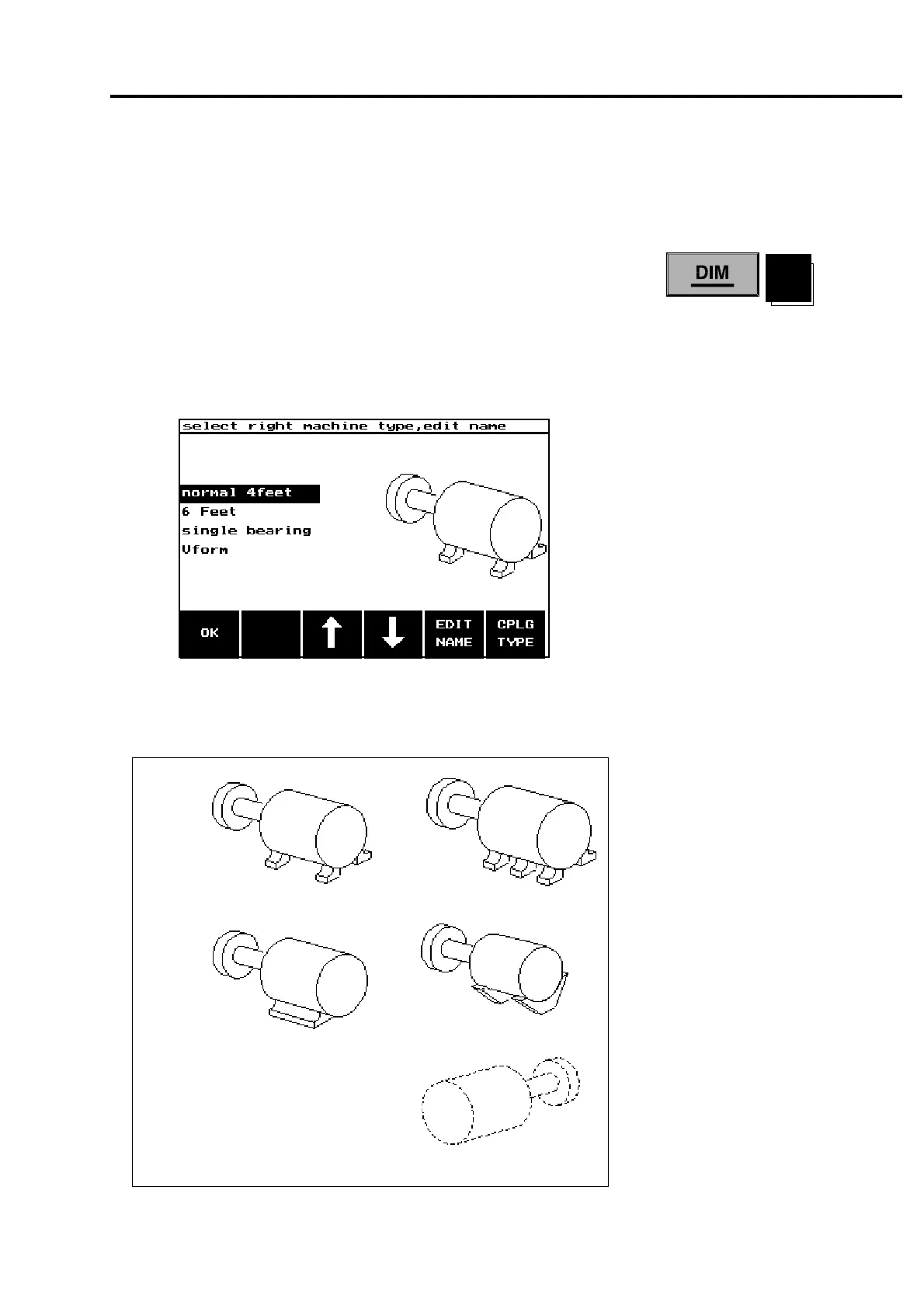

Here is the first screen showing the right-hand machine:
Proceed as follows:
Normal 4 feet 6 feet
Single bearing V-form
(see following page)
Stationary
(left machine only)
1. Select the right machine type (the machine with the receiver
mounted) from the options with the Up and Down arrows:
L ? R
OPTION
To Next Page
