6-23
ROTALIGN 01.2000
E
N
T
E
R

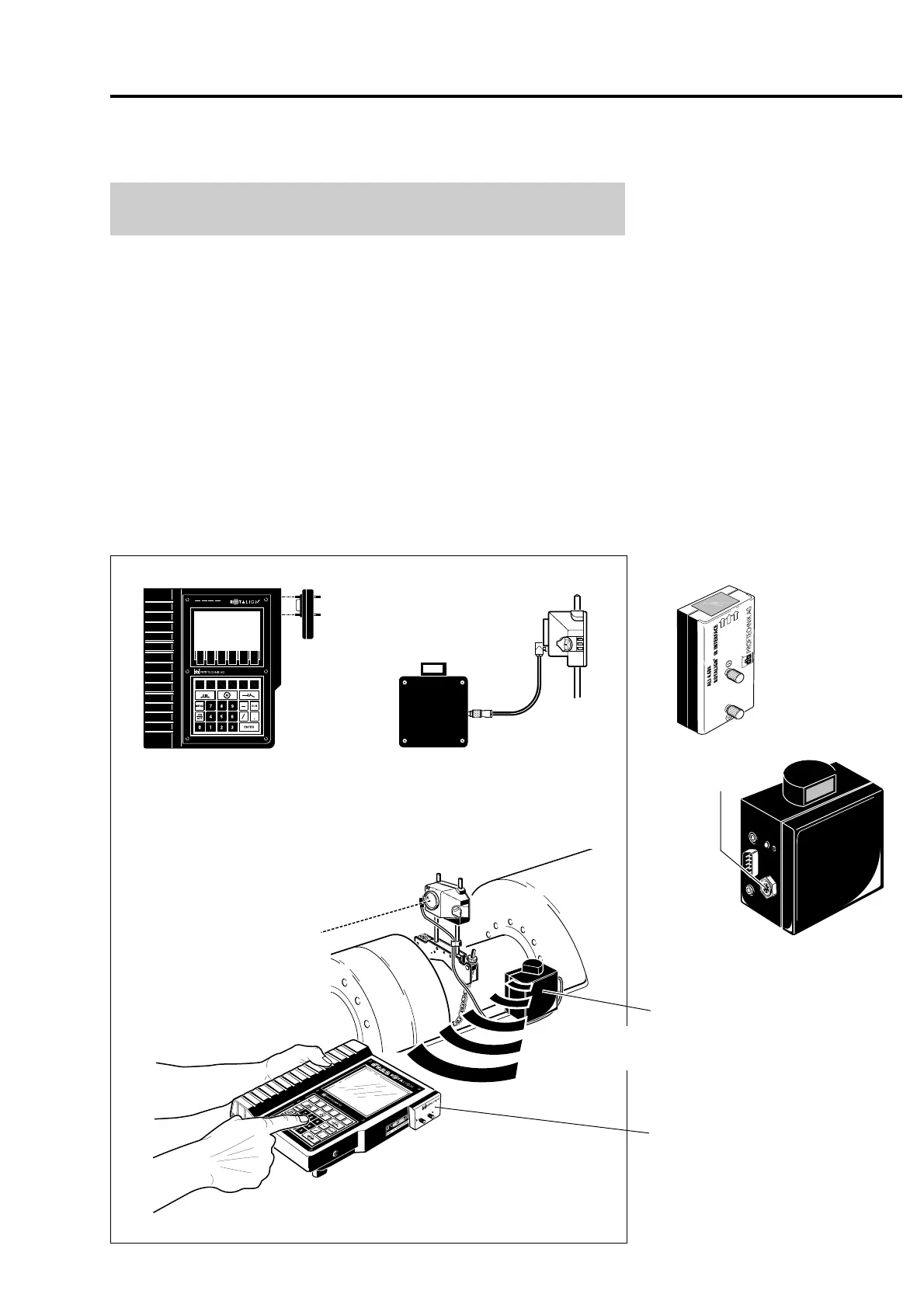

Infrared interface package ALI 4.609set
Infrared interface package ALI 4.609set
The ROTALIGN computer and receiver can be set up with an infrared
link instead of a cable. This is useful for continuously rotating shafts,
or where a cable could get caught during rotation. The infrared
interface package ALI 4.609set includes:
ALI 4.608 ROTALIGN infrared interface
ALI 4.610 External receiver battery with IR interface
ALI 4.701-2 Cable, 2 m (6.5') from receiver to external battery
When using this system, the "Sensorport" in the CONFIG options
must be set to "COM" - page 3-3.
The external receiver battery has two strong permanent magnets
built flush into one side of its housing. These let you mount the
battery quickly and easily onto any ferromagnetic shaft or coupling
surface.
......BATT....... ........... ..........
MAIN AUX
CHARGE
SLEEP
Computer External receiver battery Receiver
ALI 4.610
Connections
Infrared interface
ALI 4.608
Cable
ALI 4.701-2
ROTALIGN infrared
interface ALI 4.608
connected to
computer via RS232
(serial) port
Ext. Batt with IR turret
connected to receiver and
mounted on shaft
Infrared interface
ALI 4.608
To receiver
Recommended accessories:
ALI 3.576 Charger for
external battery
ALI 3.582 Charger T-cable for
two external batteries
simultaneously
