6-27
ROTALIGN 01.2000
Advanced diagnosis & correction of soft foot

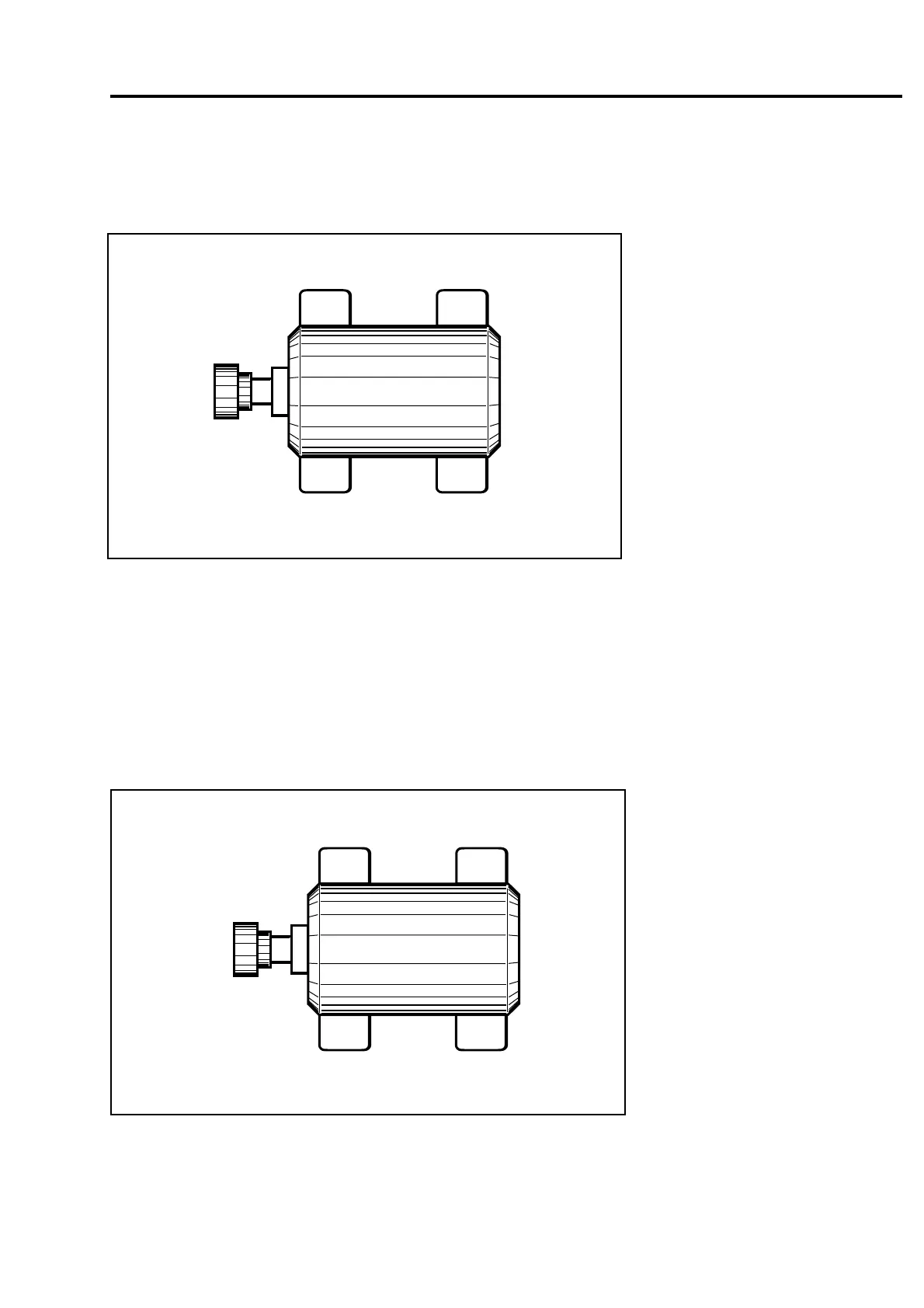

Example 4
One foot having high ROTALIGN readings prompts feeler gauge
examination of foot B. The feeler gauge readings show a clearly
defined bent foot. It is possible that all of the other readings are being
induced by the bend in foot B.
Conclusion: step shim 0-1 mm at foot B and recheck all four feet.
Example 5
100100
100100
100
44
44
4
9696
9696
96
24
40
12
00
00
0
48
24
4
5656
5656
56
6060
6060
60
00
00
0
00
00
0
0
0
C
D
A
B
C
D
A
B
Feeler gauge readings are taken to examine the foot with the high
ROTALIGN reading, and a bent foot is found. It is possible that other
feet have problems which are being masked by foot C.
Conclusion: step shim 0-60/100 mm at foot C and recheck all four
feet.
