4-20
ROTALIGN 01.2000

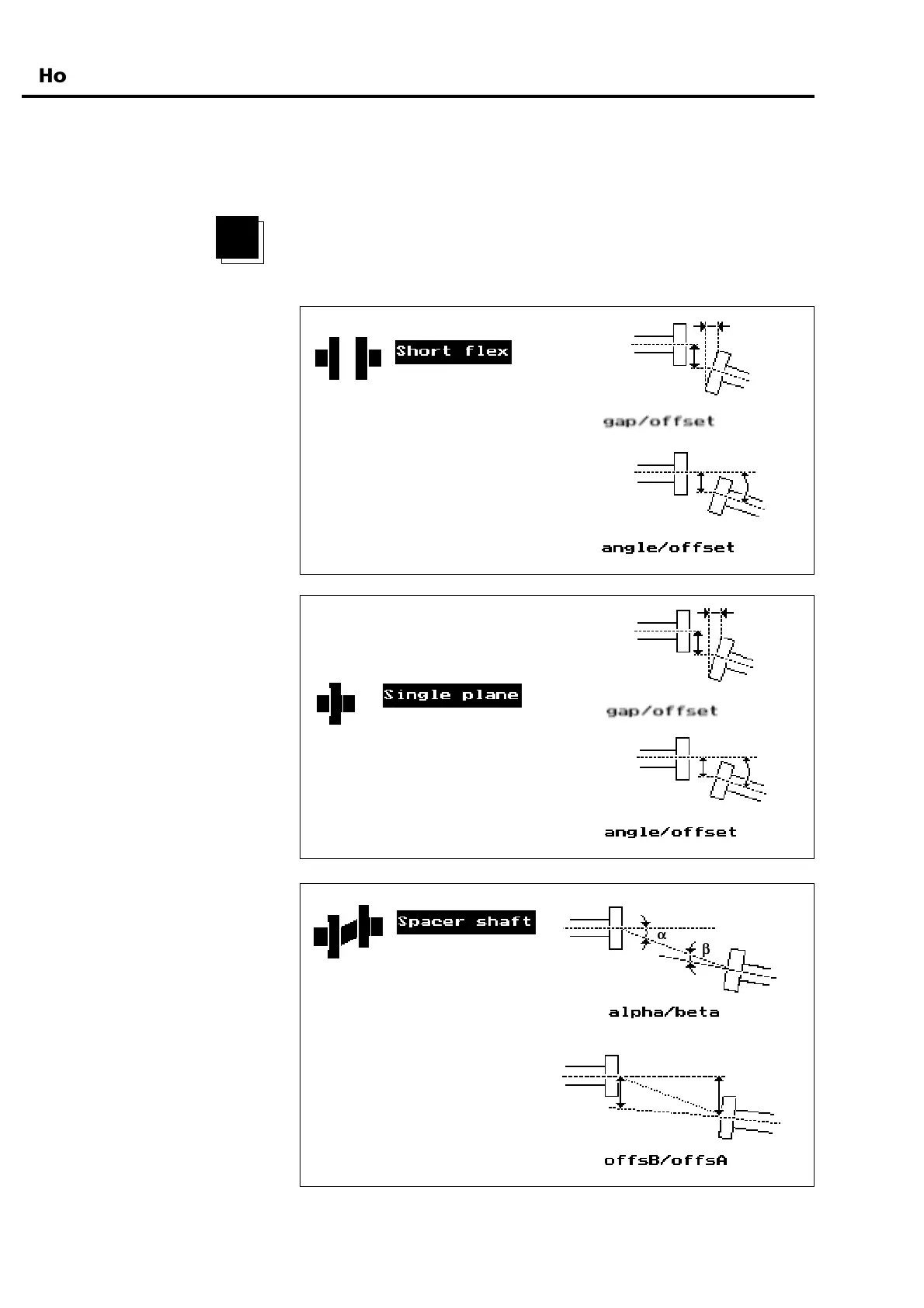

CHANGE MODE selects the way the coupling misalignment will be
displayed. This allows depiction of results in the same format as that
specified by the machine manufacturer. The format selection de-
pends on which type of coupling you have, thus:
CHANGE
MODE
Select the appropriate format, and when finished press OK to return
to the Menu.
Angles are given in
millirads (mrad) where:
1 mrad = 1 micron / mm
= 1 mil / inch
With spacer shafts the
results will be given in
terms of angles a and b or
offsets A and B. Sign
convention is explained on
the facing page.
A
B
a
b
Horizontal machine alignment - machine dimensions
