4-40
ROTALIGN 01.2000
Horizontal machine alignment - measurement

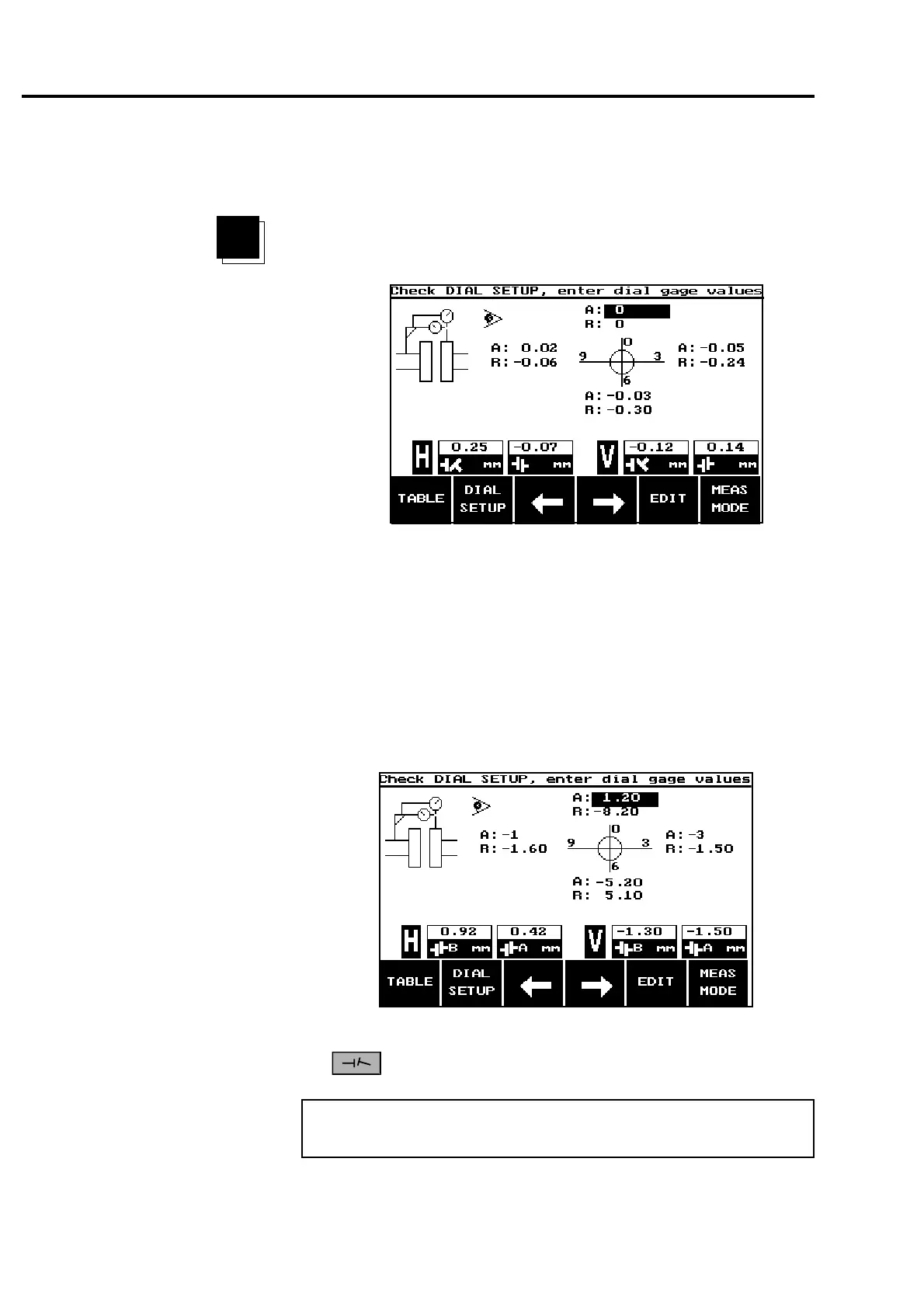

The calculated dial gauge values are now displayed. These calculated
values are zeroed to the 12 o'clock position:
It is also possible enter dial gauge readings and to calculate
misalignment and corrections. After entering machine dimension as
would be done for any machine, select the DIAL GAUGE option from
the MEAS MODE screen. Enter the gauge configuration and dial
dimensions as described on the previous page. Press OK to return to
the main screen.
Enter the Axial and Radial clock dimensions, using the arrow key to
navigate through the values. Misalignment is calculated after the
values have been entered:
You can now align the machines using the dial measurements with
the
key.
Note, a laser-assisted MOVE cannot be performed without actual
laser measurements.
EDIT
F
Note
