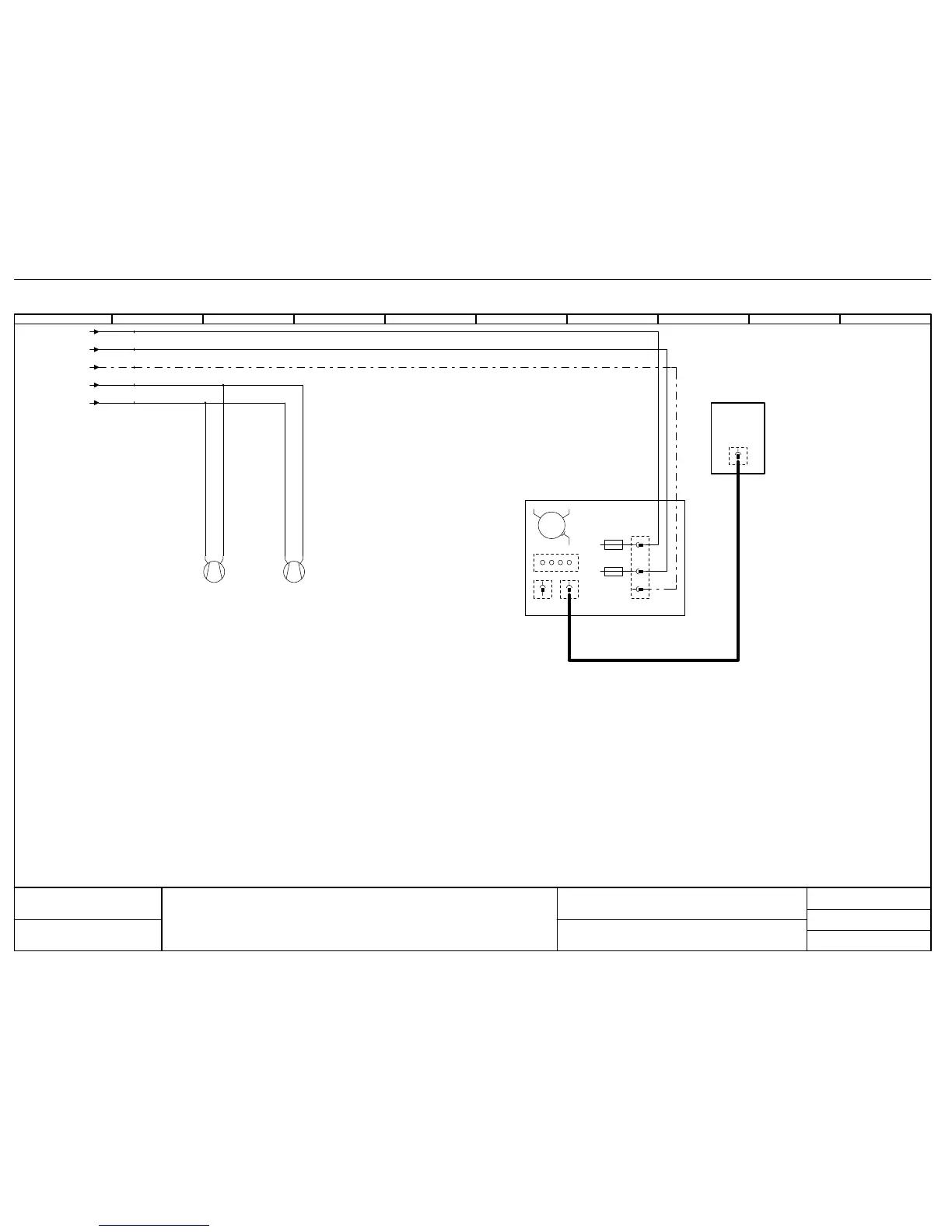

MODUL 5 Lüftermotor
Fan Motor, Cooling Fan
CM101E
3NAC400V 50-60Hz
Erstellt von
Created by
Datum
Date
Blatt
Page
PA
5
30.04.2004
1.08 / 2.00 / K1:1
1.08 / N
1.08 / PE
1.08 / K1:13
1.08 / K1:A2
BK
BU
YE/GN
BN
BU
M11
Kühllüfter Cooling fan
M
1
~
A2 A1
M5
Kühllüfter Cooling fan
M
1
~
A2 A1
Lüftermotor Fan motor
M1
M
~
RJ45
F20
6,3A
.
F21
6,3A
.
33
22
X22
11
A4 PCB
0
9
8
7
65
4
3
21
0
Blinkcode Lüftermotor
Siehe Trainingshandbuch Seite 83
Blink code fam motor
See Training manual page 83
