C
M
S2
B1
B3
F4
M4
Y1
Y2
B2
M1
B5
F3
M8
M9
Y11
Y12
A5
B11
B12

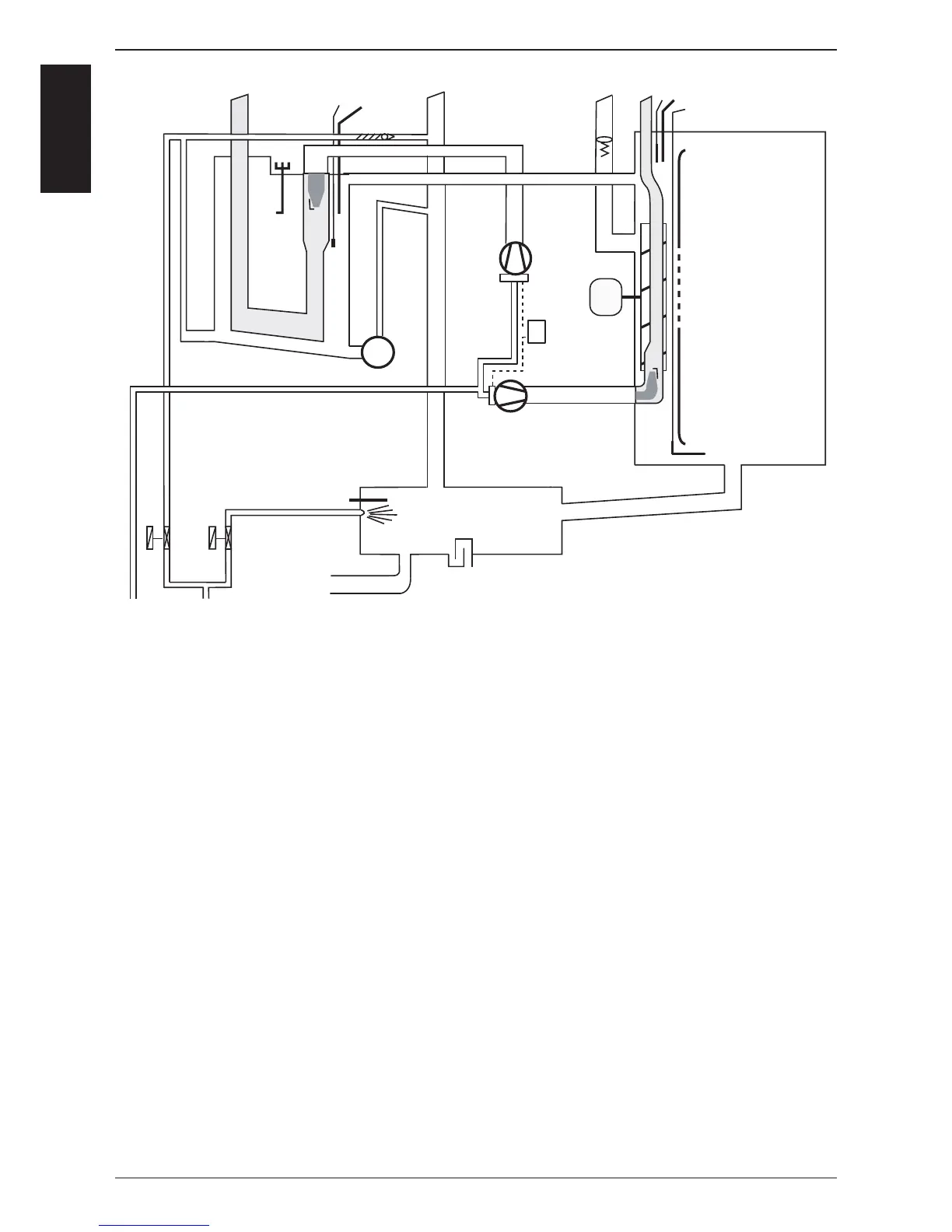

CM Gas from 04 - 2004
A5 Ignition module (Steam and Hot Air) (without jumper)
B1 Thermocouple interior cabinet
B2 Thermocouple quenching / Steam control
B3 Thermocouple core temperature
B5 Thermocouple steam generator
B11 Ignition/monitoring electrode steam
B12 Ignition/monitoring electrode hot air
F3 Safety thermostat steam generator 135°C
F4 Safety thermostat interior cabinet 360°C
M1 Fan motor
M4 SC-pump
M8 Gas blower motor hot air
M9 Gas blower motor steam
Y1 Solenoid valve fi lling
Y2 Solenoid valve quenching
Y11 Gas valve steam
Y12 Gas valve hot air
S2 Level electrode
Only fl oor units 201 - 202
A6 Ignition module hot air bottom (with jumper)
M2 Fan motor top (with jumper)
M10 Gas blower motor hot air bottom
Y13 Gas valve hot air bottom
B13 Ignition/monitoring electrode hot air bottom
