Software update CM units with Flash-Box 87.00.037
For downloading unit software from PC to CM fl ash box the program „Megaload“ must
be installed on the PC.
This program is available on the Rational Service internet page under:
„Technical documentation/Software update SCC-Line/CM“.
For installation on the PC proceed as follows:
A) Download Zip fi le to PC
B) Open Zip fi le
C) Start the program Setup.exe and follow the description on the screen. After
the installation of the program Megaload the following procedure must be
observed
1. Download CM-Software e.g. C-1-06.05.hex of the above mentioned Rational
Service page into a folder (e. g. Desktop) of your computer.

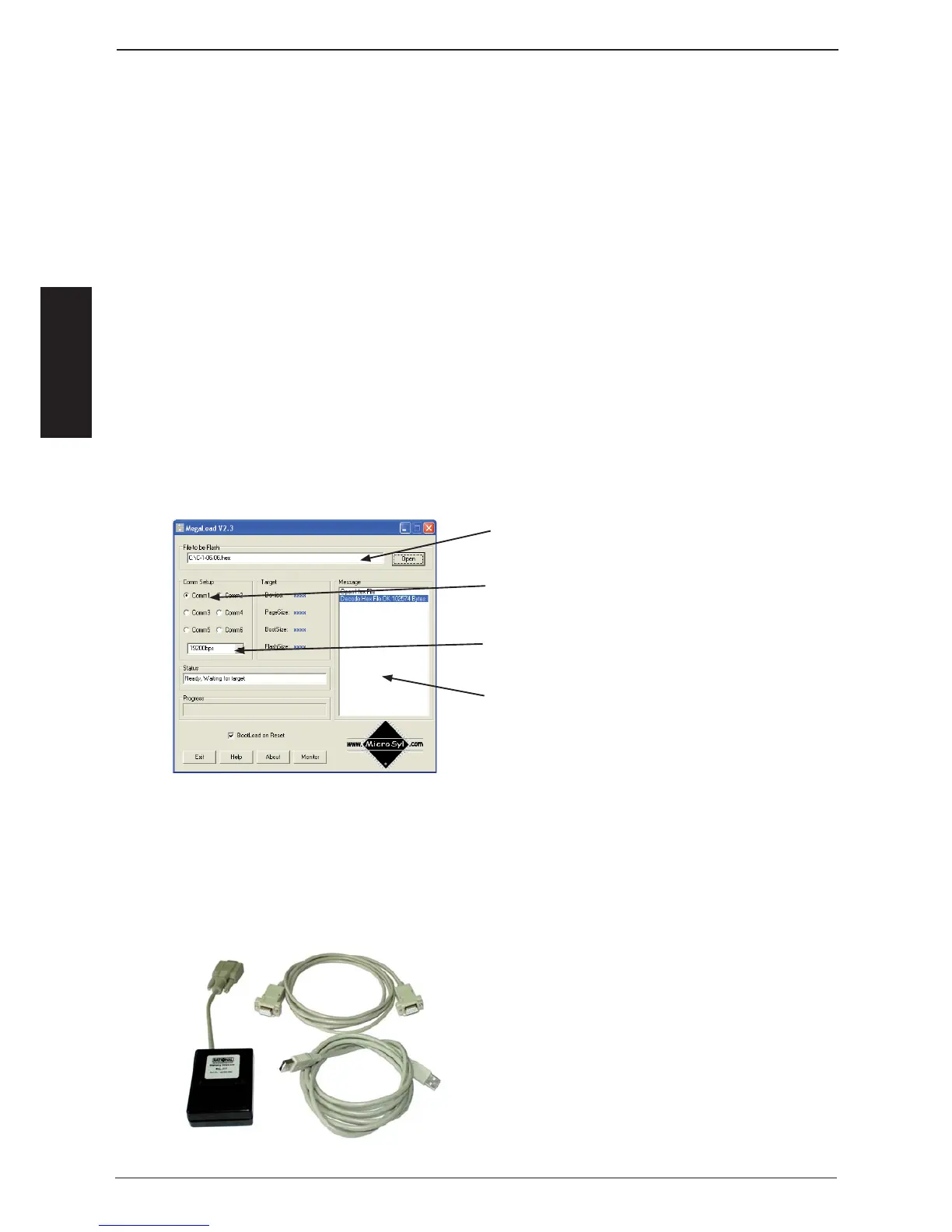

2. Start the program Megaload
3. Carry out basic settings of the Megaload program.
Open CM Software;
e.g.: C-1-06.05.hex
Select desired interface on the PC,
e.g. Com1
Transfer rate must be set to 19200 bps.
On the „Message“ window the progress of
the download software download is indicated.
If your laptop is not equipped with a RS 232 interface (serial interface) an USB - RS232
adapter is required.
Operation and connection of the adapter can be found in the adapter‘s operator manual
The kit (87.00.037) contains of:
1. Flash box
2. Adapter cable RS 232
3. USB-cable
Hint
The Rs232adapter cable as well as the
USB cable are only required for down
loading the unit software to the Flash-Box.
Uploading unit software from Flash-Box to unit
only requires the Flash-Box (cables are not
needed).
