S
-95-
COMMON

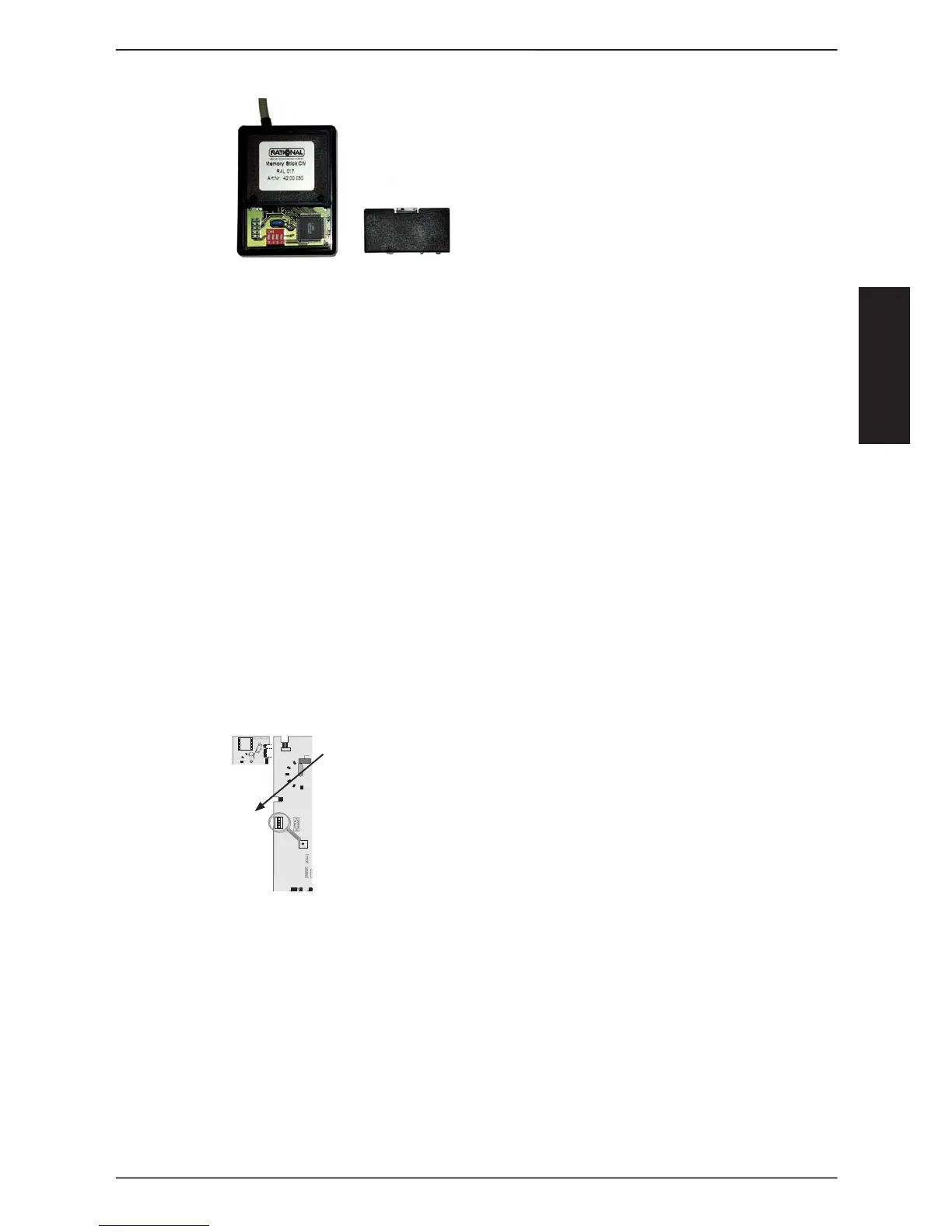

Copying unit software from PC to CM Flash-Box
- Open lid of the Flash-Box
1. - Set DIP - switch 2 to „ON“.
(other switches remain in the off
position)
2. Connect RS 232 adapter cable (item 2) to Flash-Box and to the selected
interface (e. g. COM 1) of the PC
3. Start program Megaload and open fl ash software (e.g.: C-1-06.02.hex)
4. Connect USB-cable (item 3) to fl ash box and PC
5. After the USB cable was connected the fi les which are transferred will appear
on the Message window. An end sign indicates that the transfer is completed.
6. On the fl ash box set DIP- switch 2 to OFF and 3 to ON (the other switches
remain off). Flash-Box is ready for use
Update unit software with CM Flash-Box to unit
1. Switch off unit with mode switch and open front panel.
Check that DIP 3 is in the ON position.
2. Connect Flash-Box to RS 232 interface of the operator pcb.
3. Switch on CM unit. After the software update is completed the unit switches
off and back on again.
4. Now the Flash-Box can be removed and the unit can be used.
