76-00050

0Version

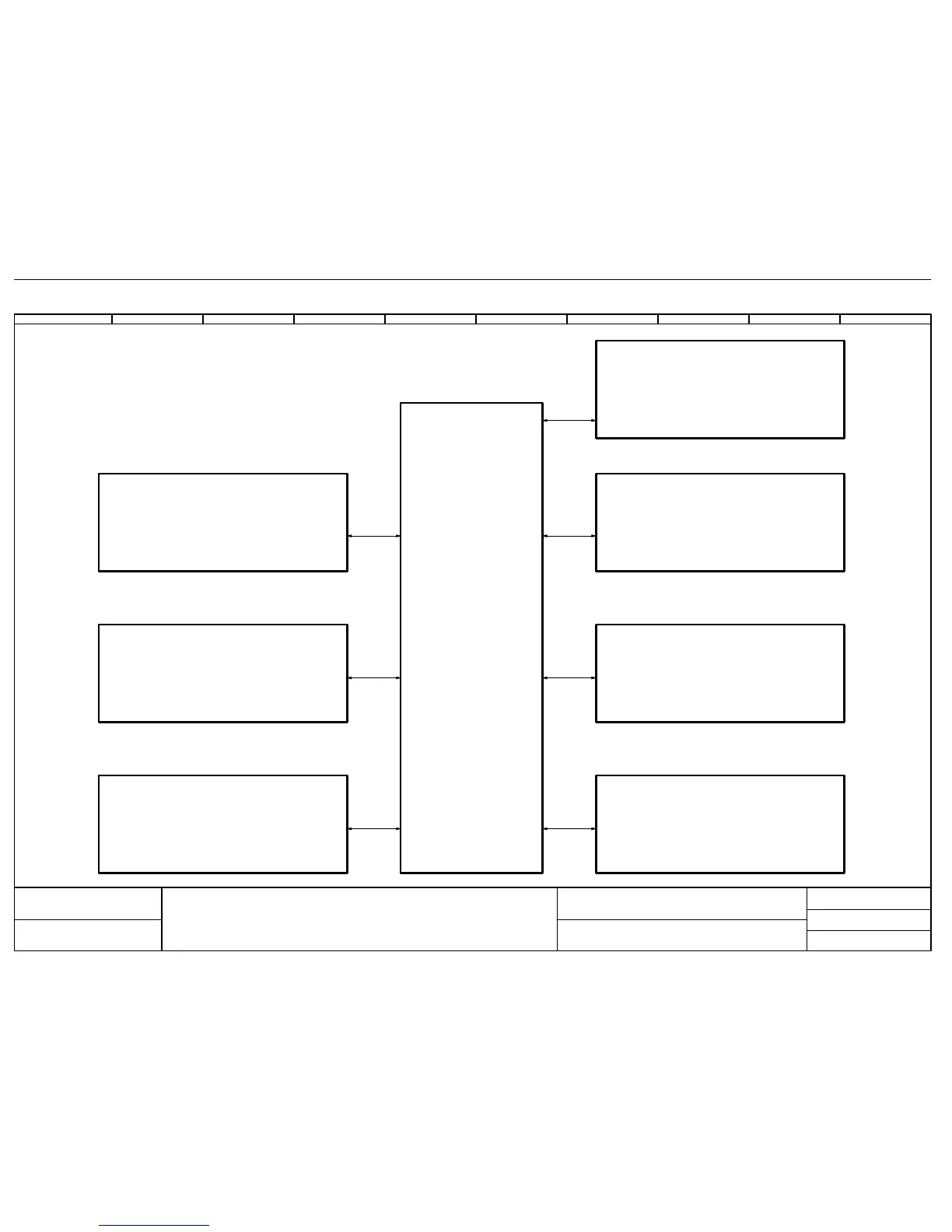

Überblick CM 101/102 G

1NAC230V 50-60Hz

Erstellt von

Created by

Datum

Date

Blatt

Page

30.04.2004

MODUL 3 Klima Plus, Fühler

Humidity control, Sensors

Blatt 3

Page

MODUL 2 Heißluftheizung/Dampfheizung

Hot air heating/Steam heating

Blatt 2

Page

MODUL 1 Sicherheitskette, Sp.-Versorgung PCB

Safety chain, Power supply pcb

Blatt 1

Page

PCB

MODUL 7 Option

Options

MODUL 6 Summer, EEPROM

Buzzer, EEPROM

MODUL 5 Lüftermotor

Fan Motor, Cooling Fan

MODUL 4 Wasser

Water, Drain, CleanJet

Blatt 7

Page

Blatt 5

Page

Blatt 4

Page

Blatt 6

Page

0123456789

Contents2
Table of Contents3
Overview4
Water Level Control Steam Generator6
Cleaning Program8
Empty Steam Generator8
Select Descaling Program8
Changing Temperature Display from °C to °F9
CM PCB (42.00.047) from 02-2006 (Without Transformer)10
LED Code Fan Motor SCC and CM from 04/200411
Motor for CM 40.00.27411
Service Level CM from 04 - 200417
Function Test17
Service Level: Dp -- Diagnostic Program18
Service Level: Rt -- Running Time19
Service Level: SE -- Basic Settings20
Service Level: F -- Function Test22
Service Level: er -- Error Code History24
Failure Codes CM from 04-200425
CM Gas from 04 - 200426
Gas Valve Components27
Identiﬁcation of the Different Gas Burners/Gas Blowers27
Ignition Box of Hot Air Blower, Bottom (201-202)27
Basic Info about CM Gas from 04-200427
Sequence of Events of Steam / Hot Air Burner (SCC as Well as CM)28
Check Gas Type / Gas Conversion: CM Gas from 04-200429
Changing Installation Altitude: CM Gas from 04-200430
Flue Gas Analysis: CM Gas from 04-200431
Values for Burner Adjustments of Gas Units SCC / CM33
Changing Gas Blower Speed (MAX, Start, MIN Rpm): CM Gas from 04-200434
SCC Control Panel35
SCC Electric from 04-200442
SCC Operator Pcb (42.00.002)44
Measuring Points I/O PCB SCC (40.00.049)45
Motor for SCC / CM46
SCC Units: Sequence of Events48
Service Level SCC54
SCC Diagnostic Mode Overview56
SCC Diagnostic Mode57
SCC Diagnostic Mode58
SCC Running Times Overview60
SCC Running Times61
- SCC Running Times62
- Overview Basic Settings64
- SCC Basic Settings (Switch off - on after Adjustment)65
SCC Basic Settings66
- Overview Function Test68
- Overview Service Messages72
- Service Messages SCC73
- Calibration SCC76
- Control Drain Valve 54.00.35778
- SCC Gas from 04-200480
- Basic Info about SCC Gas from 04-200482
- Check Gas Type - Gas Conversion: SCC Gas from 04 - 200484
- Adjustment of Installation Altitude above Sea Level SCC Gas from 04 - 200485
- Flue Gas Analysis: SCC Gas from 04-200486
- Changing Gas Blower Speed (MAX, Start, MIN Rpm) SCC Gas from 04 - 200489
- Flash SCC Software90
- Changing SCC Pcb / Changing SCC EEPROM / Software Update92
- Software Update CM Units with Flash-Box 87.00.03794
- Copying Unit Software from PC to CM Flash-Box95
- Fault Tree: Changing Pcb / Changing EEPROM / Fault "E1"96
- How to Update CM Units Via PC97
- User Instruction Electrical Descaler Pump98
- Descaling Interrupt SCC/CM99
- Rational Installation/Commissioning Checklist SCC/CM100
- Perimeter Clearances101
- Drain Connection101
- Levelling and Floor Fixing101
- Electrical Connection – Observe Local and National Codes102
Water Info108
- SCC Fault List - Troubleshooting110
- No Function - Safety Chain116
- No or to Low Steam Production117
- "RESET" Indication (Gas Units)119
- Indication Descaling/Service 12120
- Buzzer Sounds121
- No Function - Safety Circuit122
- No Steam123
- Indication "E13" (SC-Automatic)126
- Indication "Res" (= Reset)127
- Chng POL (Check Polarity)127
- Bill of Material139
- SCC Service Reference184
