Rational SCC Line User Manual

-5-
S
C
M
B1
B3
F4
M4
Y1
Y2
B2
M1
S2
B5
F3

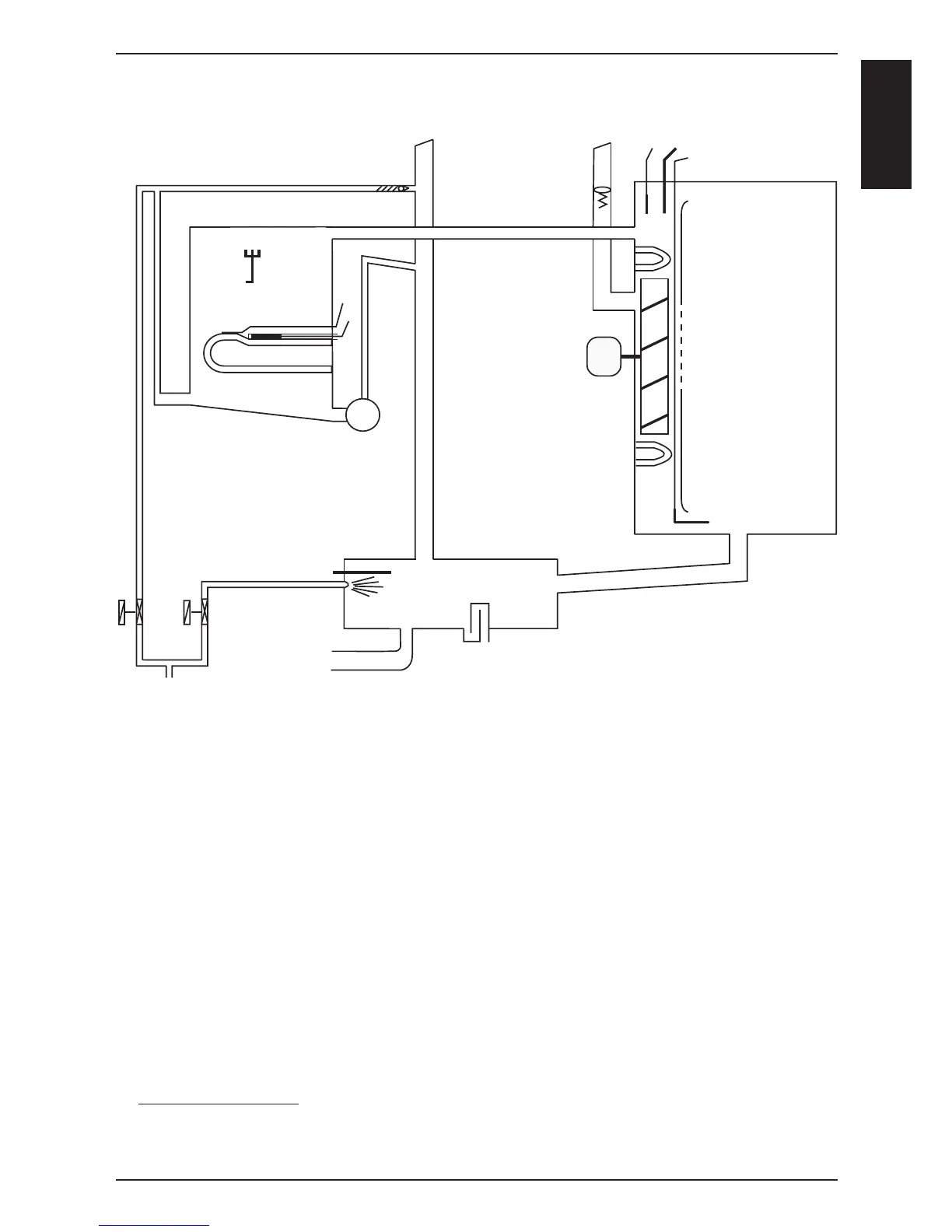

CM Technique from 04 - 2004
B1 Thermocouple cabinet
B2 Thermocouple quenching / Steam control
B3 Thermocouple core temperature
B5 Thermocouple steam generator (preheating, 180°C (356°F) max)
F3 Safety temperature limiter steam generator 160°C
F4 Safety temperature limiter cabinet 360°C
Y1 Solenoid valve fi lling
Y2 Solenoid valve quenching
M1 Fan motor (without jumper)
M4 SC-pump
S2 Level electrode
CM 201/202 only:
M2 Fan motor top (with jumper)
