°C / °F
t (sec)
B2 - 2
B2 - 1
B1 - 100°C(212°F)
70°C
(158°F)

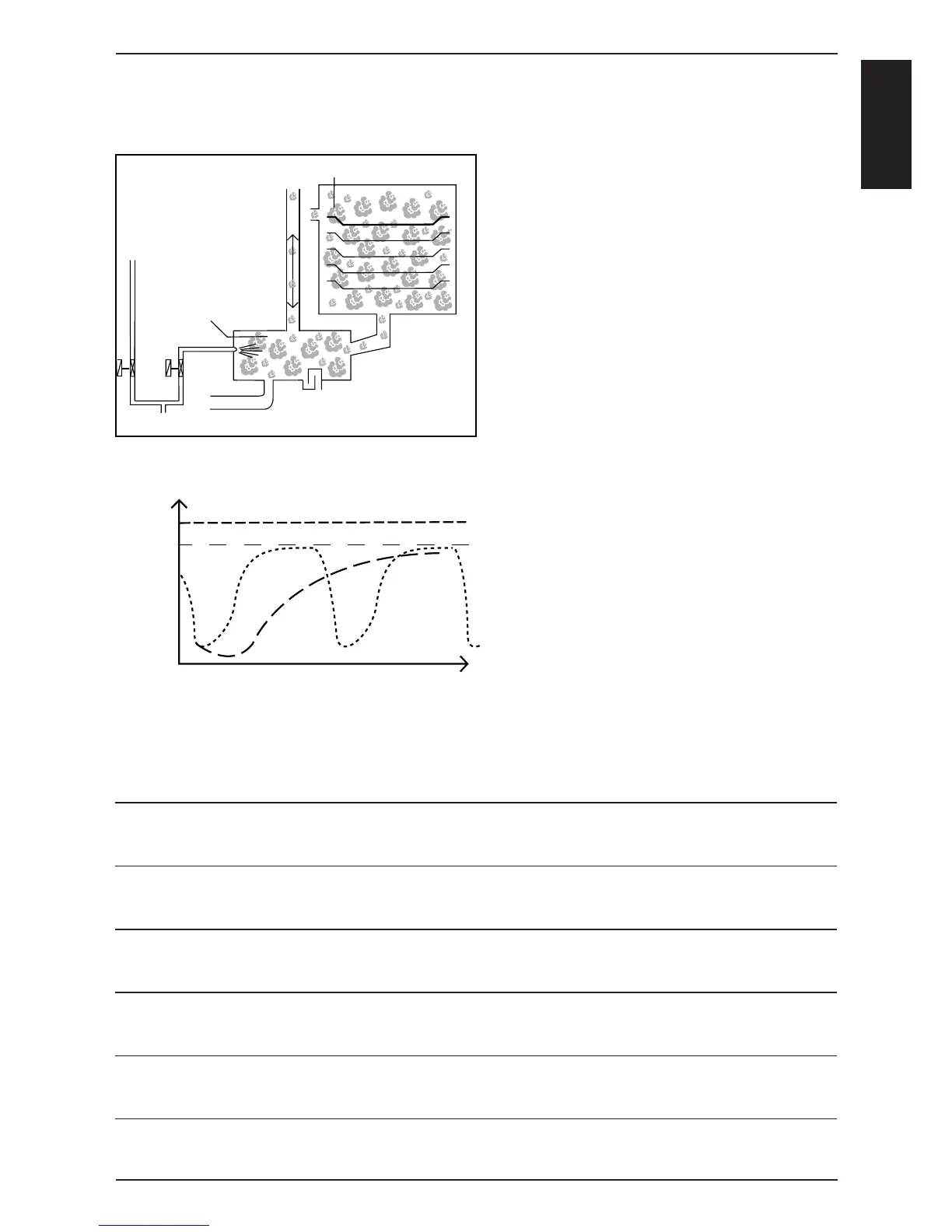

1. Filling of interior cabinet based on time
and temperature control of B1 cabinet sen-
sor
2. After steam saturation inside cabinet
steam will also fi ll quenching chamber
3. Depending on the frequency of tempera-
ture raise of the quenching sensor B2 the
duration of the next steam supply is
calculated.
B2-1: B2 temperature with partial load
B2-2: B2 temperature with full load
4. The amount of steam inside the cabinet is
directly depending on the temperature
variation of quenching sensor B2.
Steam Control CM from 04 - 2004
Intelligent steam control via quenching sensor
