Tools Menu
well as the baud rate for those messages. Contact a local Slingshot dealer for more information on the
Slingshot RTK services.
Note: The RTK option is only displayed after an RTK authorization key is entered using the procedure in
the Special Features Registration section on page 127. Contact a local Raven dealer to obtain the
authorization code.
Gl1de
®
Only
For areas with limited SBAS coverage, the Envizio Pro II dual frequency receiver features the NovAtel Gl1de
®
as a GPS correction source option. In Gl1de only mode, the Envizio Pro II will use existing GPS or EGNOS
satellites to locate the vehicle position within 20 in [50 cm].
Output

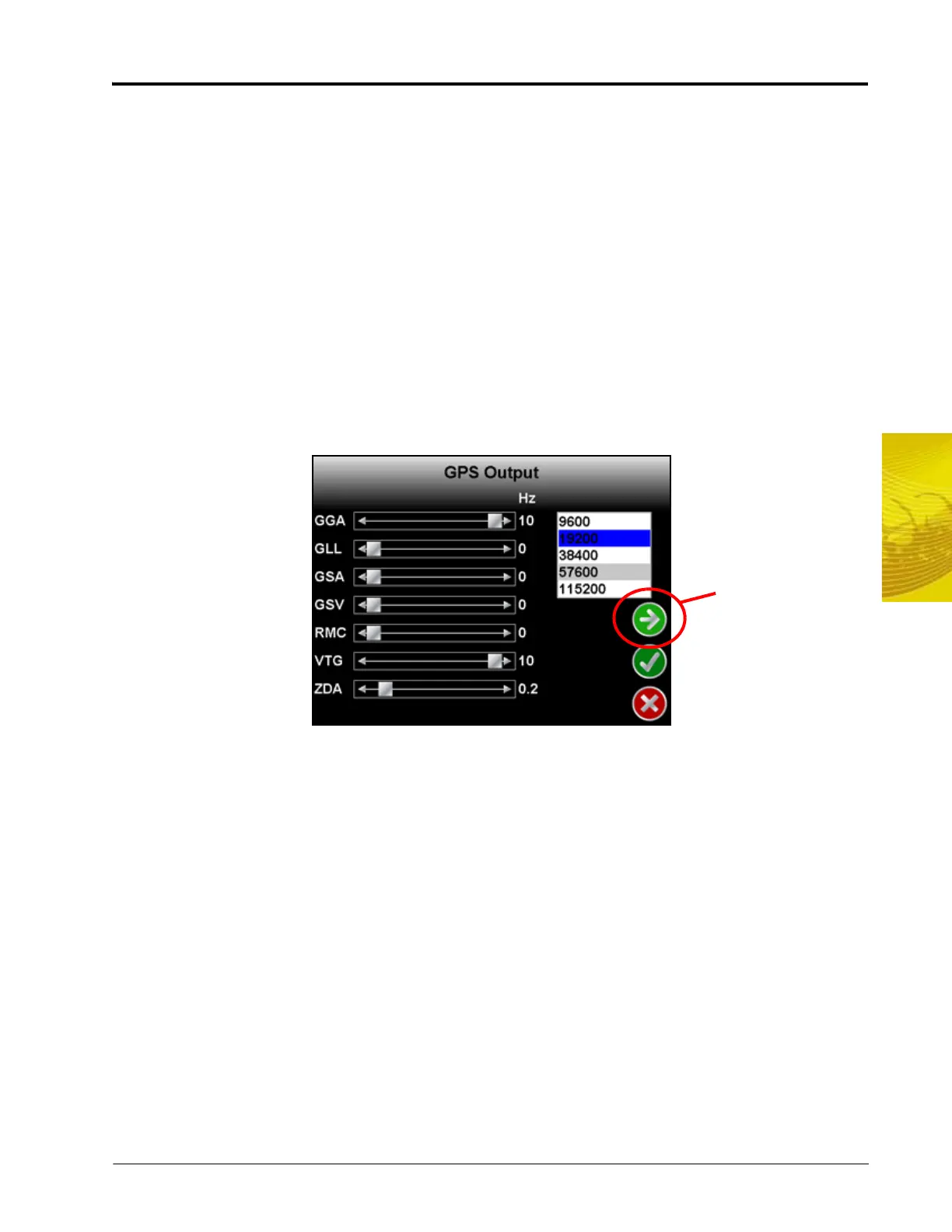

To setup the type, frequency and baud rate of message outputs from the built-in receiver, touch the Output
icon.
Note: The GPS Output screen is only available when using the internal GPS receiver. Message outputs
from an external GPS receiver must be setup through the external hardware.
Message Types and Frequency
Use the sliding bar next to the desired message type to set the frequency of the output message. Messages
may be sent out at 0.2, 1, 5 or 10 Hz, depending upon the message. Set the slider to 0 Hz to turn the
corresponding message off.
Messages sent out of the built-in receiver are sent out of the connector labeled ‘GPS Out’ on the auxiliary
interface cable or chassis interface cable. Contact a local Raven dealer for more information.
Baud
Select the Baud Rate of the message strings sent from the built-in receiver.
Note: Some GPS or Assisted Steering components may require specific Baud Rate settings.
Radar Output
