Chapter 7
122 Envizio Pro and Envizio Pro II Installation and Operation Manual

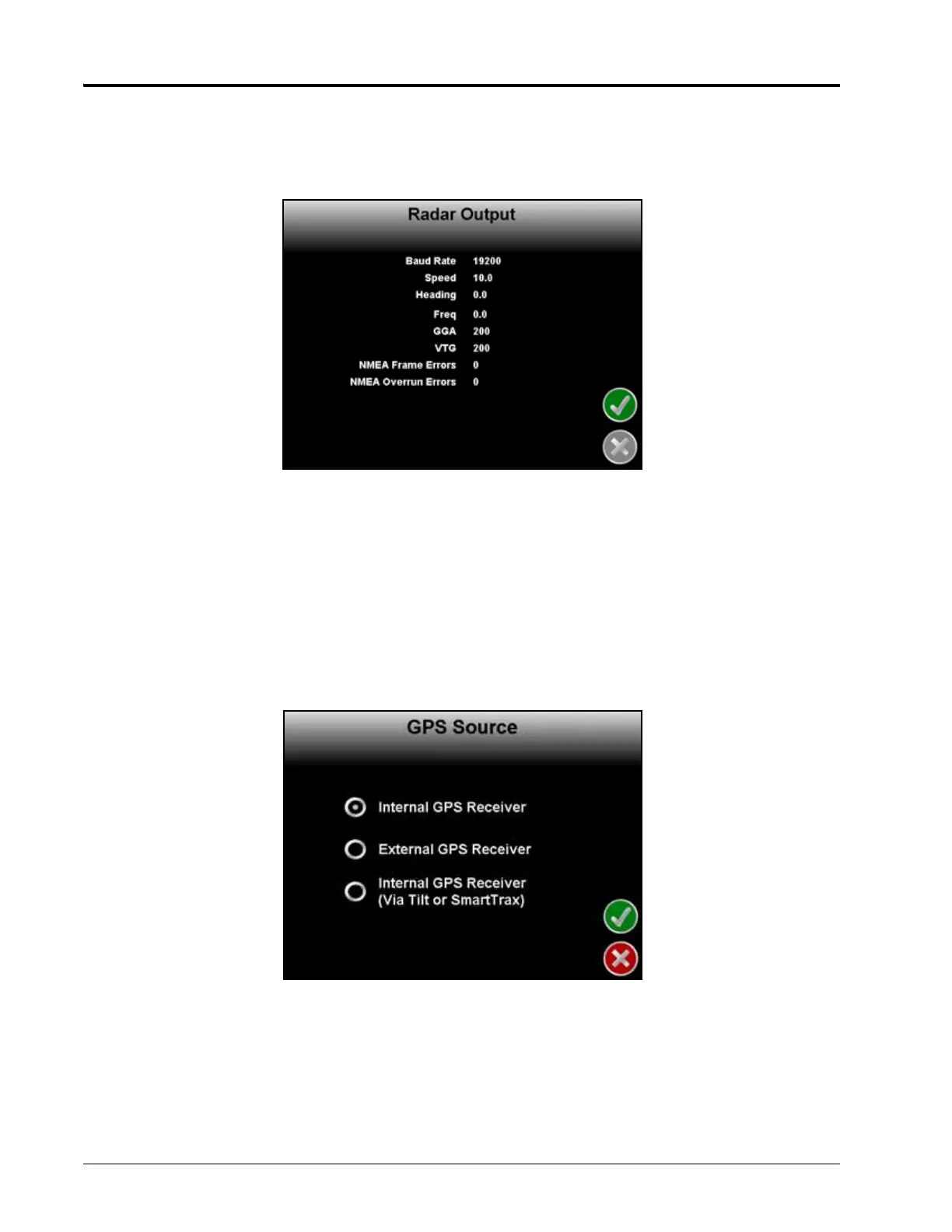

Simulated Radar Output
Touch the ‘Next’ icon displayed on the GPS Output screen to view the simulated radar output from the field
computer. These settings may be used to help set up an external device to receive GPS speed signal output
from the internal GPS receiver.
External Lightbar, TM-1 Tilt Module and SmarTrax™
If an optional SmarTrax or SmartSteer system, external lightbar or TM-1 Tilt Module is connected to the field
computer, the GPS Output Baud setting must be set to 19,200 before changing the Source selection. For more
information on the GPS Source settings, see the Source section on page 122.
Source
The GPS Source screen allows the operator to select between the internal GPS receiver or an optional
external receiver such as a Raven Phoenix 200/300.
Note: The GPS Source screen is only available on field computers with the internal DGPS receiver.
The GPS Source screen also displays an option to automatically setup the output messages from the built-in
receiver to route through an optional TM-1 Tilt Module or the SmarTrax or SmartSteer systems.
