Section Setup Wizard
The Section setup wizard will guide the operator through configuring section widths and will require the
following information:
• Number of sections
• Section widths
• Section configuration
• Desired section labels
Using the Section Setup Wizard
1. Touch the Section setup wizard icon. The Number of Sections screen will display.
2. Use the Up and Down arrow buttons to setup the number of sections for the vehicle or implement. Touch
the Next icon to proceed to the Section Width screen.
Note: To utilize individual section control or the AccuBoom automatic boom section control, plumbing on
the vehicle or implement must allow for individual section control. If the machine is not capable of
controlling individual sections, set the number of sections to 1 and enter the overall boom or
implement width on the Section Width screen.

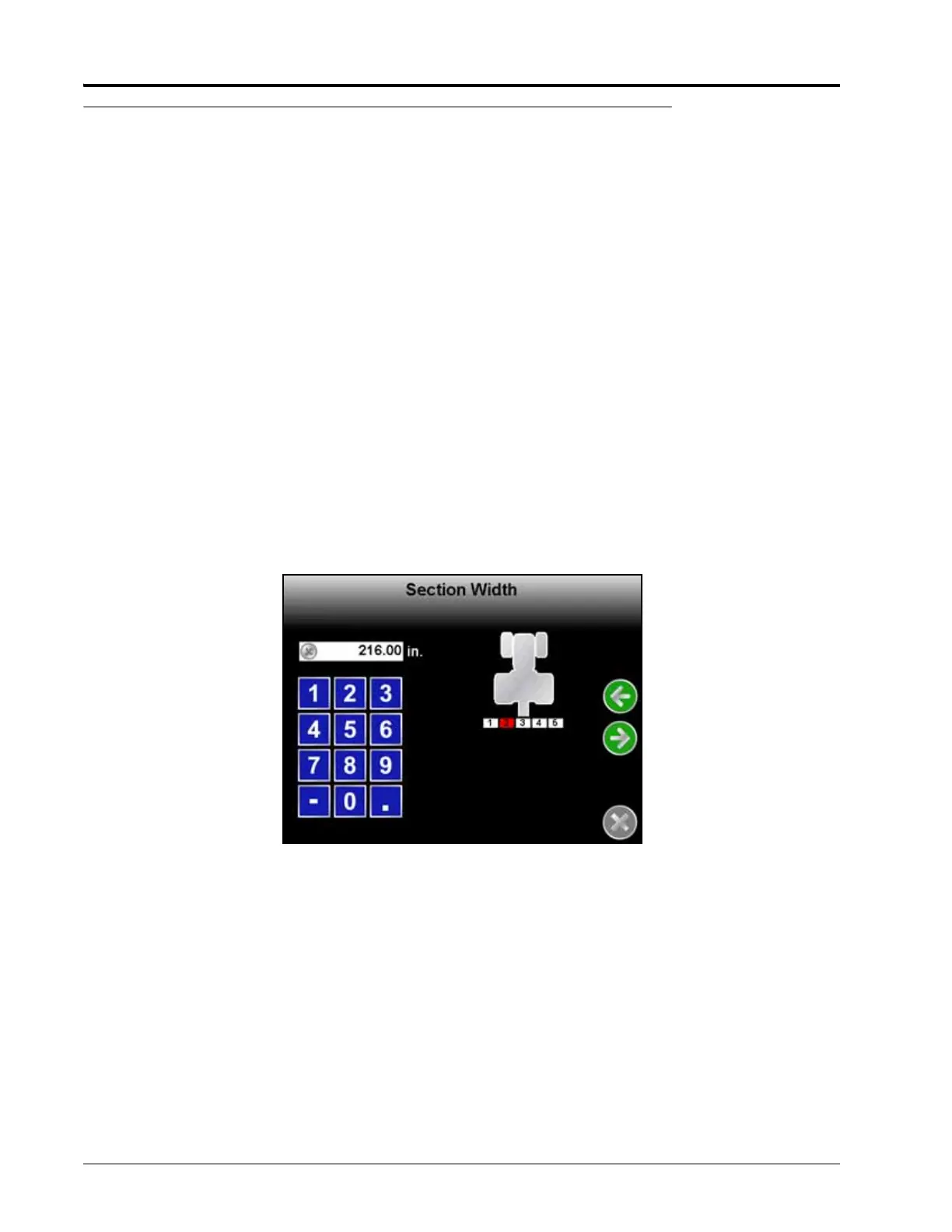

3. Configure the width of each section starting with the far left section. Use the on-screen keypad to enter the
section width.
Touch the Next icon to accept the entered value and advance to the next section to the right. To skip a
section, enter a value of zero as the section width.
4. Repeat step 3 until widths have been entered for all sections. Touch the Next icon on the last Section Width
screen to advance to the Configure Sections screen.
To Next Page
