Chapter 7
136 Envizio Pro and Envizio Pro II Installation and Operation Manual
Manually Configure Sections
If the boom or implement is not aligned end-to-end on the swath midpoint, the boom or implement sections will
need to be manually configured.

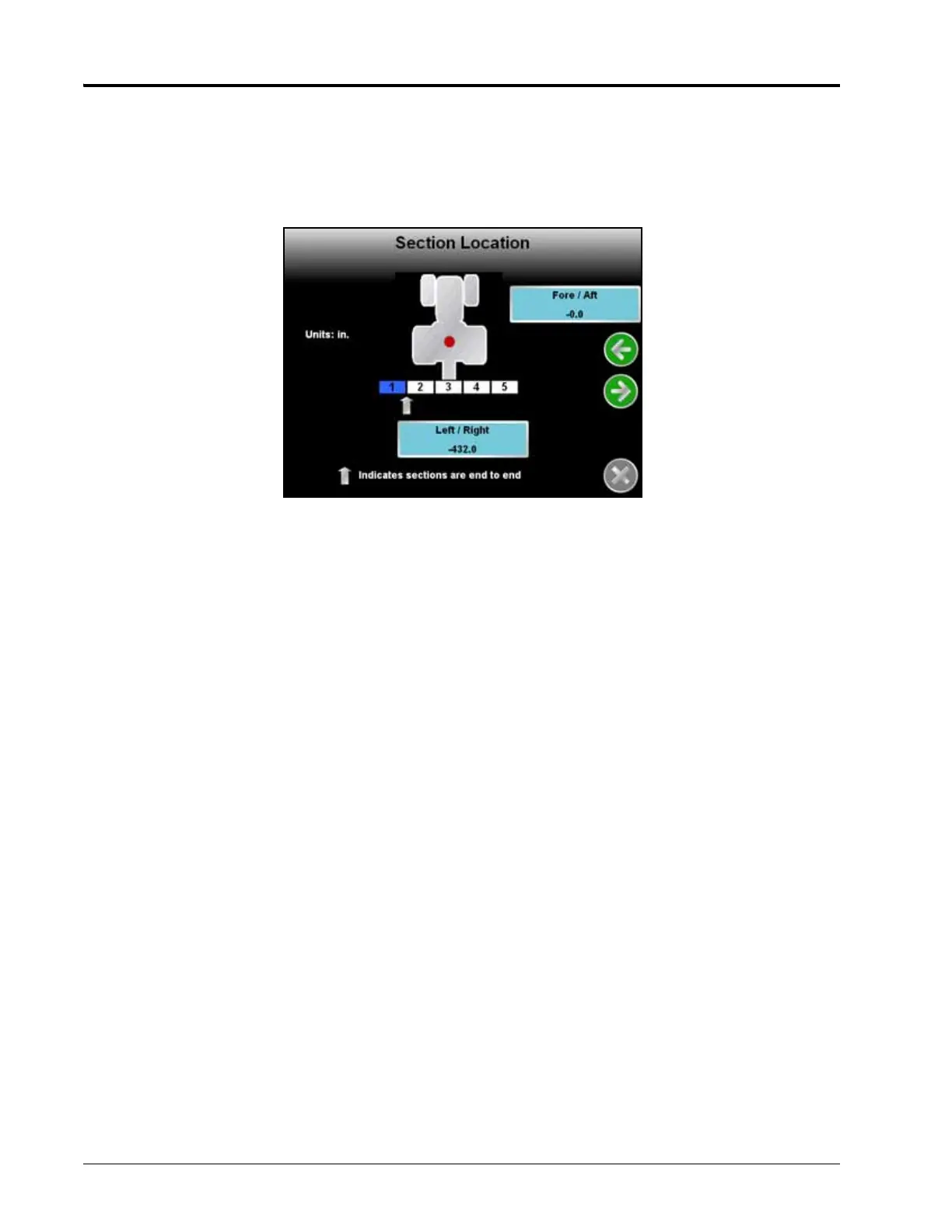

1. Select Manually Configure to begin locating boom or implement sections. The Section Location screen will
appear.
The currently entered offsets (if any) are displayed in the Left/Right and Fore/Aft buttons.
Note: The offset distances represent the offset from the DGPS antenna to the center of the selected
section.
2. Touch the left/right button to enter a left or right offset for the first section. Enter a negative value if the
center of the section is located to the left of the of the DGPS antenna.
3. Touch the fore/aft button to enter a fore or aft offset for the first section. Enter a negative value if the center
of the section is located behind the DGPS antenna.
4. Touch the Next icon and repeat steps 2 and 3 to continue programming individual section locations. When
finished, touch the Next icon to return to the Configure Sections screen.
5. Touch the Accept icon to return to the Section Configuration screen.
Profiles
Select the Profiles icon within the Vehicle submenu to select a previously created profile, or to save the current
settings as a new profile.
Profiles save the following settings:
• GPS Antenna Height and Offsets
• Swath Width
• Section Widths and Configuration
