CAN Diagnostics
The field computer must be able to communicate with the CANbus system when monitoring or controlling
product application. If configured as a CAN control console, the Envizio Pro or Envizio Pro II should
automatically establish communication with the boom/speed node, the AccuBoom, AutoBoom or SmarTrax
Terrain Compensation nodes (if installed) and up to four product control nodes via the CANbus.
Note: Product nodes may need to be readdressed prior to detecting each node on the CANbus. See the
Readdressing the Nodes section on page 31 for detailed instructions on readdressing the product
nodes.
Contact a local Raven dealer for more information on required activation keys for controlling up to
four products using the Envizio Pro and Envizio Pro II field computers.

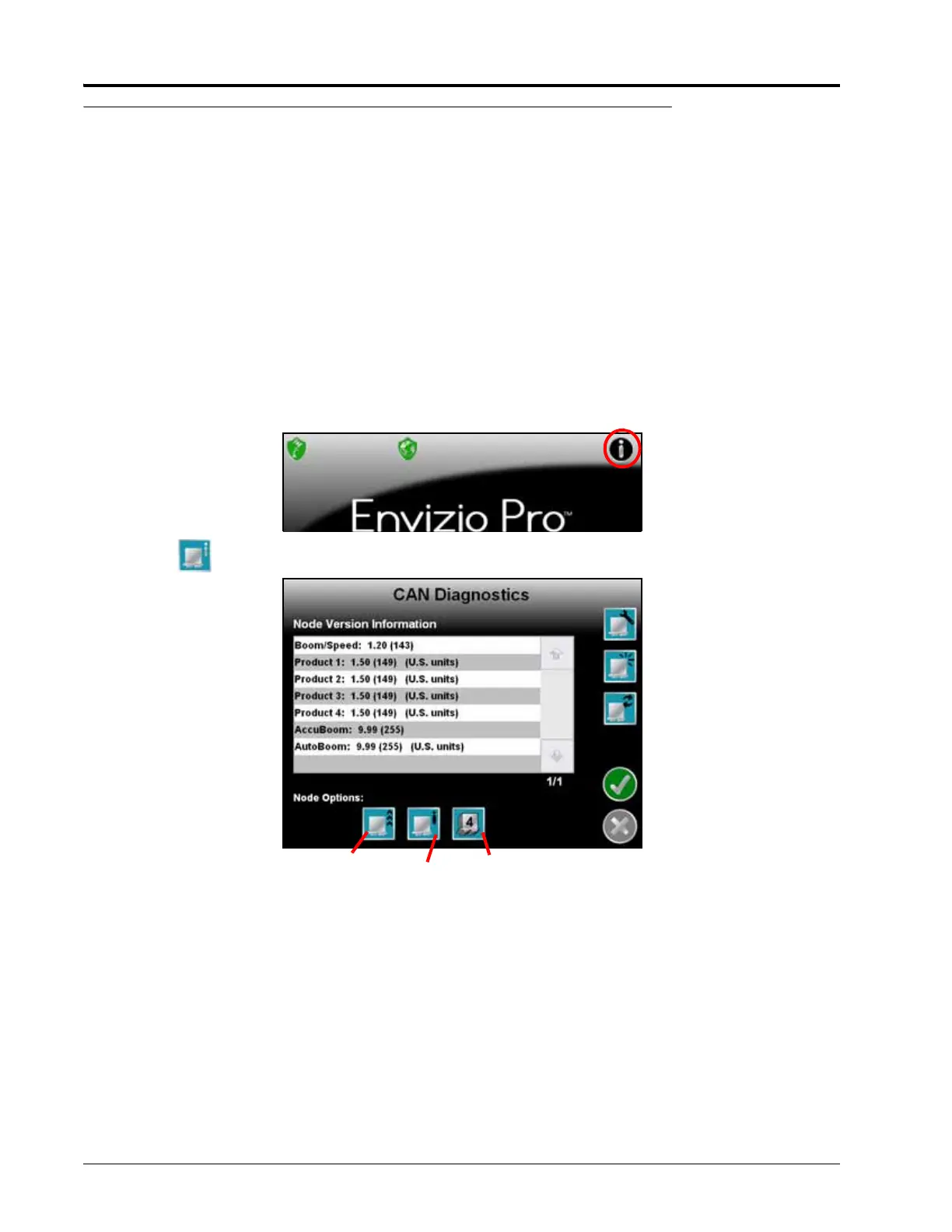

To view a list of nodes currently detected on the CANbus network:
1. Select the Information icon in the upper, right corner of the Home screen.
2. Touch the icon on the About Envizio Pro screen to display the CAN Diagnostics screen.
Note: If a product is not found, troubleshoot the node to determine why the field computer cannot
communicate with the node. See the CAN Troubleshooting section on page 34 for more
information about CAN communication failures.
Readdress Nodes
Reset Defaults
Retry CAN
Communication
Select Channels
Update Nodes
Node Hardware
Information
To Next Page
