Chapter 3
22 Envizio Pro and Envizio Pro II Installation and Operation Manual
Installing Optional Equipment
The following sections offer descriptions of optional hardware or configurations in which the Envizio Pro or
Envizio Pro II is capable of operating.
Boom Sense Wire (Interface Cable Only)
The boom sense wire can be connected to the master switch functions of the machine to allow seamless
operation of vehicle master on/off and the field computer mapping feature.
If the boom sense wire is properly connected, the vehicle master on/off switch also toggles the product
coverage mapping based on a +12V signal detected on this wire. Connect the spade connector on the main
interface cable (P/N 115-0171-746) labeled “Ext. Switch” (external switch) to the machine master switch.
Contact the machine manufacturer for more information on connecting the boom sense wire on the specific
machine.

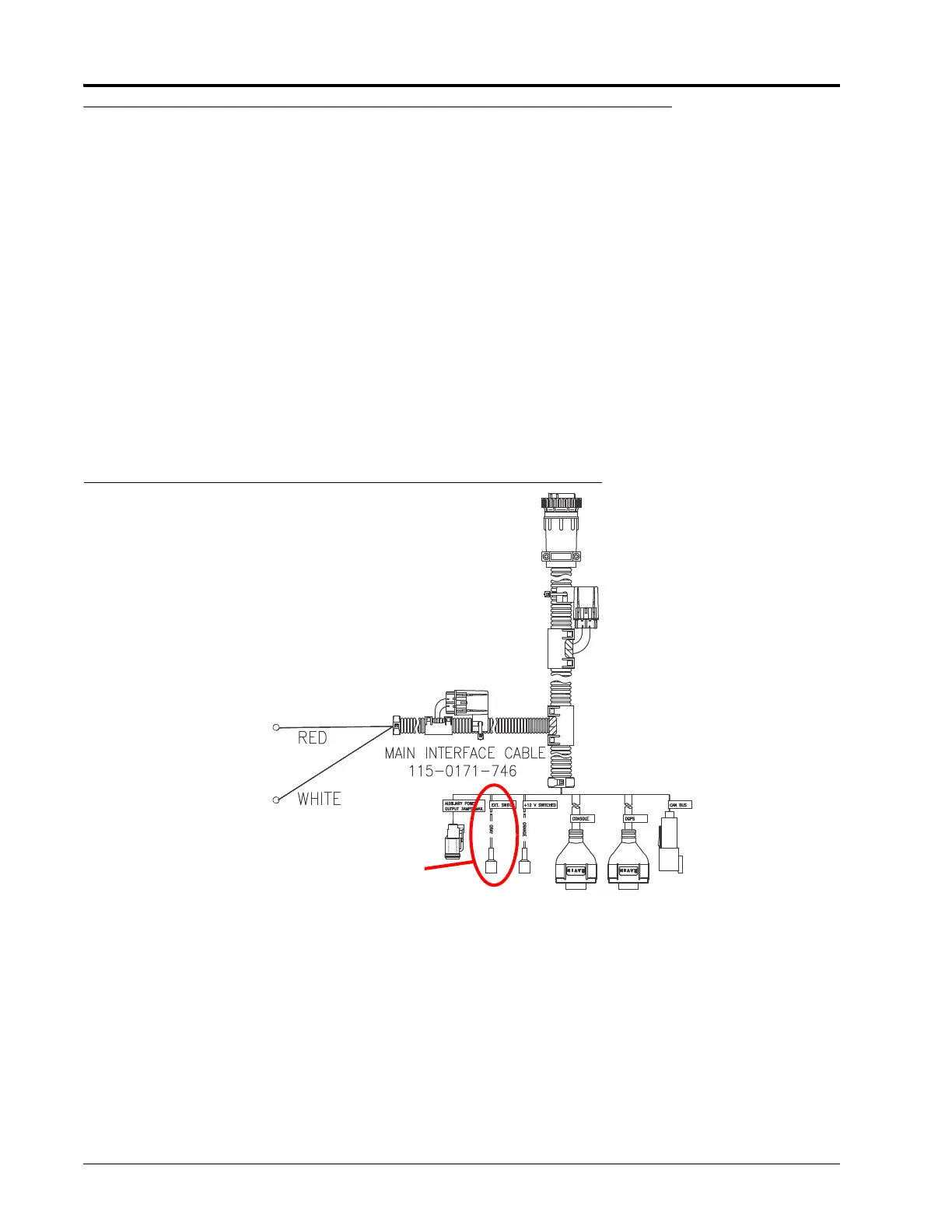

FIGURE 9. Main Interface Cable (P/N 115-0171-746) Boom Sense Wire Connection
