Chapter 6

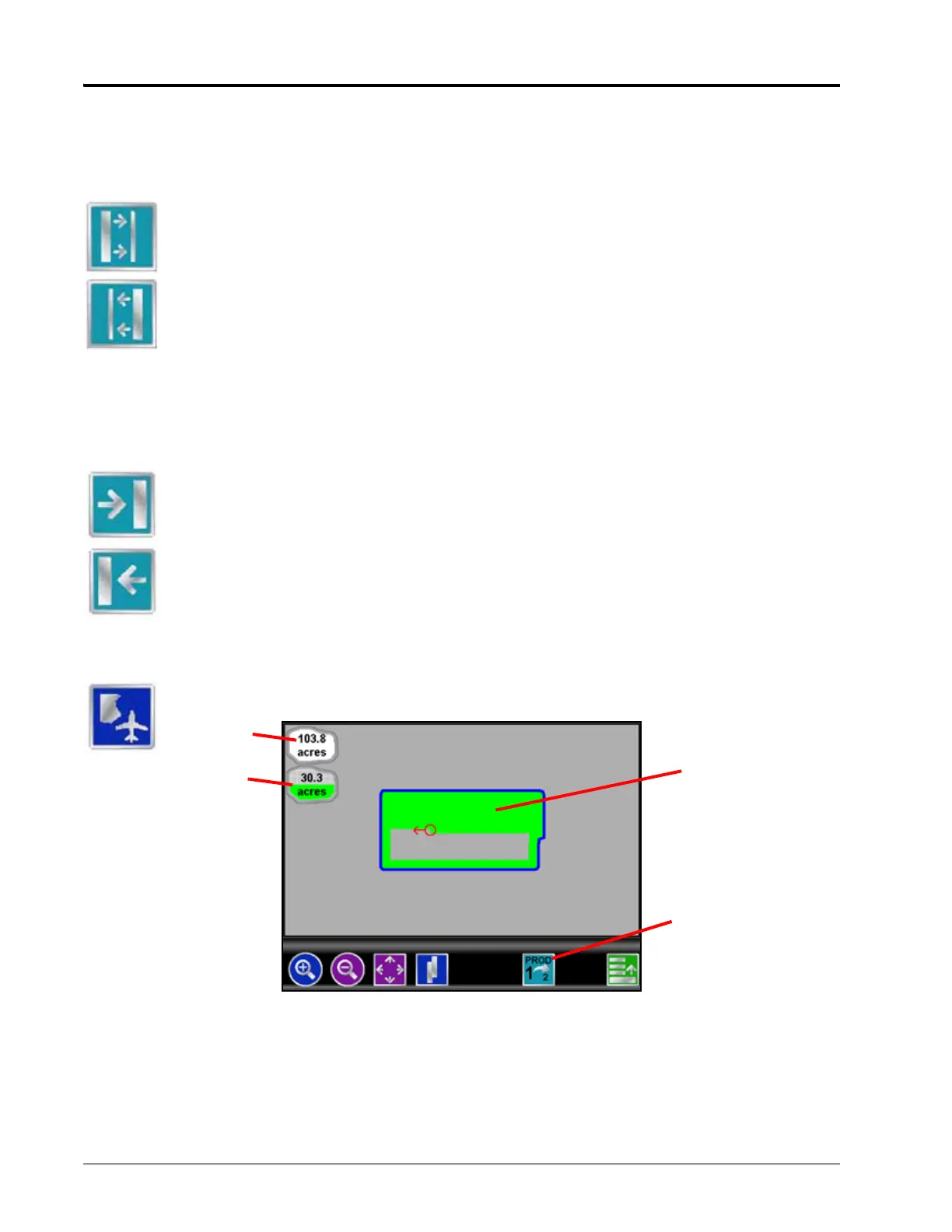

78 Envizio Pro and Envizio Pro II Installation and Operation Manual
On-Screen Nudge Enabled
The following icons will be displayed on the Guidance screen if the on-screen nudge controls option is set to
Enabled.
Touch the Nudge Right icon to move the displayed guidance path to the right. The distance which
the path will be nudged is determined by the user defined value for the Active Nudge.
Touch the Nudge Right icon to move the displayed guidance path to the left. The distance which
the path will be nudged is determined by the user defined value for the Active Nudge.
A-B Tools Menu Nudge
The following nudge icons appear in the Menu on the Guidance screen. Touch Menu then the A-B Tools icon to
access the following nudge tools.
Touch the Nudge Right icon to move the guidance path to the right in 1 inch [2 cm] increments.
Touch the Nudge Left icon to move the guidance path to the left in 1 inch [2 cm] increments.
Field Review Mode
Unlike the guidance views, the field review mode allows the operator to pan and zoom the display
to any area of the field.
The field review mode displays the following information:
1. Coverage map
2. Area within a completed field boundary
3. Coverage area tally
4. Selected product
3
5
2
1
