Raven Envizio Pro - Chapter 4 CAN Networking and Diagnostics

3
Manual No. 016-0171-148 19
Installation
Generation 2 Cable Connections
The chassis cable platform requires the following components:
• Machine specific chassis cable
• Envizio Pro or Envizio Pro II chassis interface cable (P/N 115-0171-926)
• CAN Switch Box kit (P/N 117-5020-001)
Note: Refer to the Raven CANbus Network Installation Manual for additional cabling information for the
generation 2 cable platform.

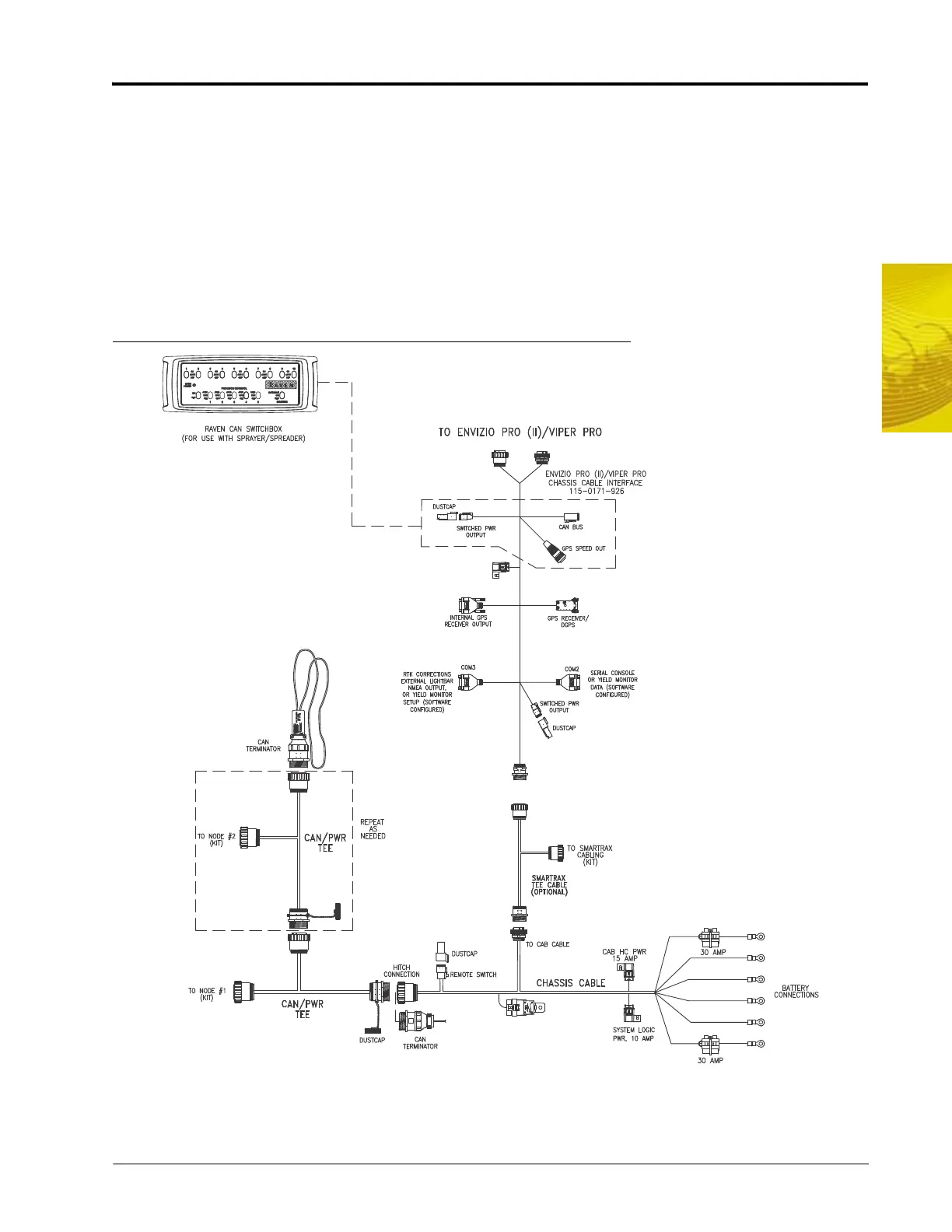

FIGURE 6. Generation 2 Cable Connection Diagram
Note: The CAN Switch Box is not used with the OmniRow system.
