Chapter 3
16 Envizio Pro and Envizio Pro II Installation and Operation Manual
Mounting the Field Computer
Refer to the following requirements when selecting a mounting location for the Envizio Pro or Envizio Pro II
field computer:
The field computer is not weatherproof. Mount the field computer inside of the machine’s cab or driver’s
compartment within easy reach of the driver or operator.
Securely fasten the RAM mounting arm to a suitable, flat surface. Once mounted, the RAM mounting arm
must provide a stable base for the console and should not impede normal machine operation.
The field computer should be mounted in a location where it will not be jarred during normal equipment
operation. Keep the computer clear of moving elements within the machine’s cab.
Route all cables to avoid tripping hazards and protect the cable from kinking or breaking during operation.
To mount the field computer:
Note: If the CAN Switch Box will be installed with the Envizio Pro or Envizio Pro II field computers, use
the mounting hardware provided with the CAN Switch Box. Refer to the CAN Switch Box
Installation and Operation Guide for mounting instructions.
1. Mount the circular base of the RAM socket arm (P/N 117-0171-132) securely within the cab of the vehicle.
2. Using the four mounting posts and supplied hardware, secure the field computer to the square plate of the
RAM mounting arm.

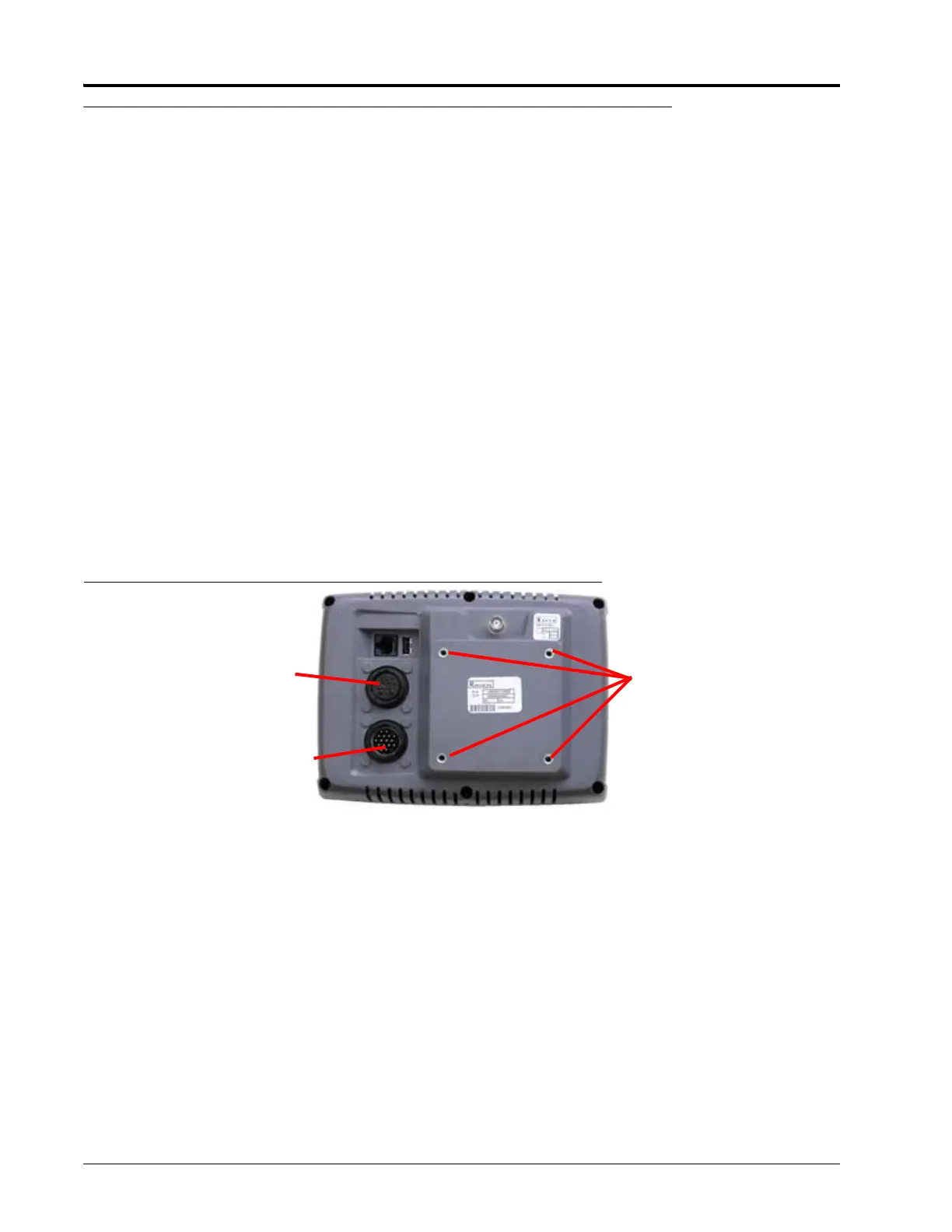

FIGURE 3. Field Computer Rear Panel
Mounting Posts
Main Interface
Connector
Auxiliary Interface
Connector
