Chapter 7
132 Envizio Pro and Envizio Pro II Installation and Operation Manual
To set the left/right value:
1. Touch the current left/right value displayed on the Raven Offsets Setup screen.
2. Use the keypad to enter the measured left/right value in inches (U.S.) or centimeters (Metric) (see Figure 2
above).
3. If the center line of the boom or implement is to the left of the GPS antenna, select the ‘Left of Center’
option.

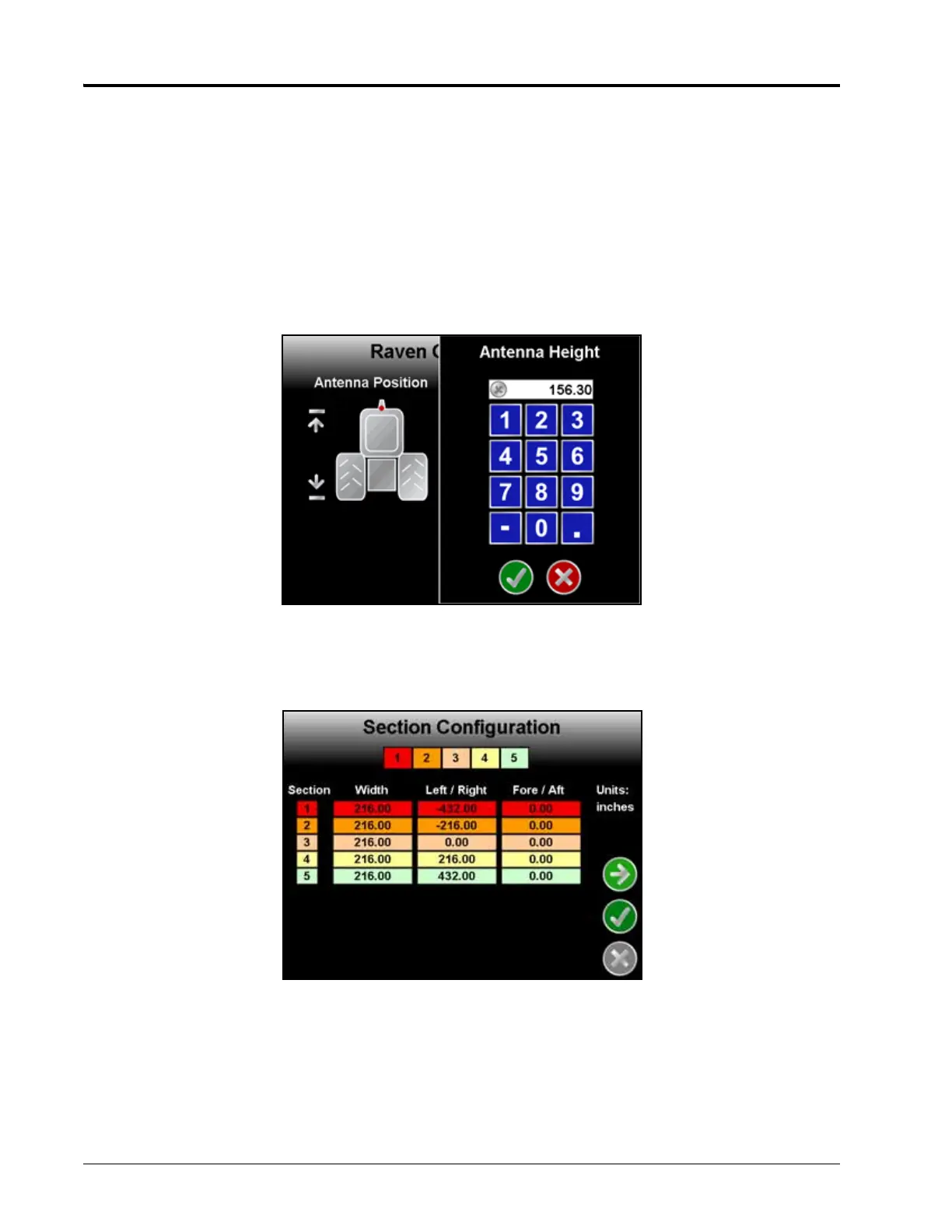

Height
Touch this icon and use the on-screen keypad to enter the height (in inches or centimeters) of the DGPS
antenna above ground. This value is only required if a tilt corrected DGPS signal is sent to the field computer.
Boom Sections
Touch the Boom Sections icon to display the Section Configuration screen.
The Section Configuration screen shows an overview of the current section configuration including section
widths, left or right offsets and fore or aft offsets. This screen is used only to review the current section
configuration.
