Manual No. 016-0171-148 125
Tools Menu

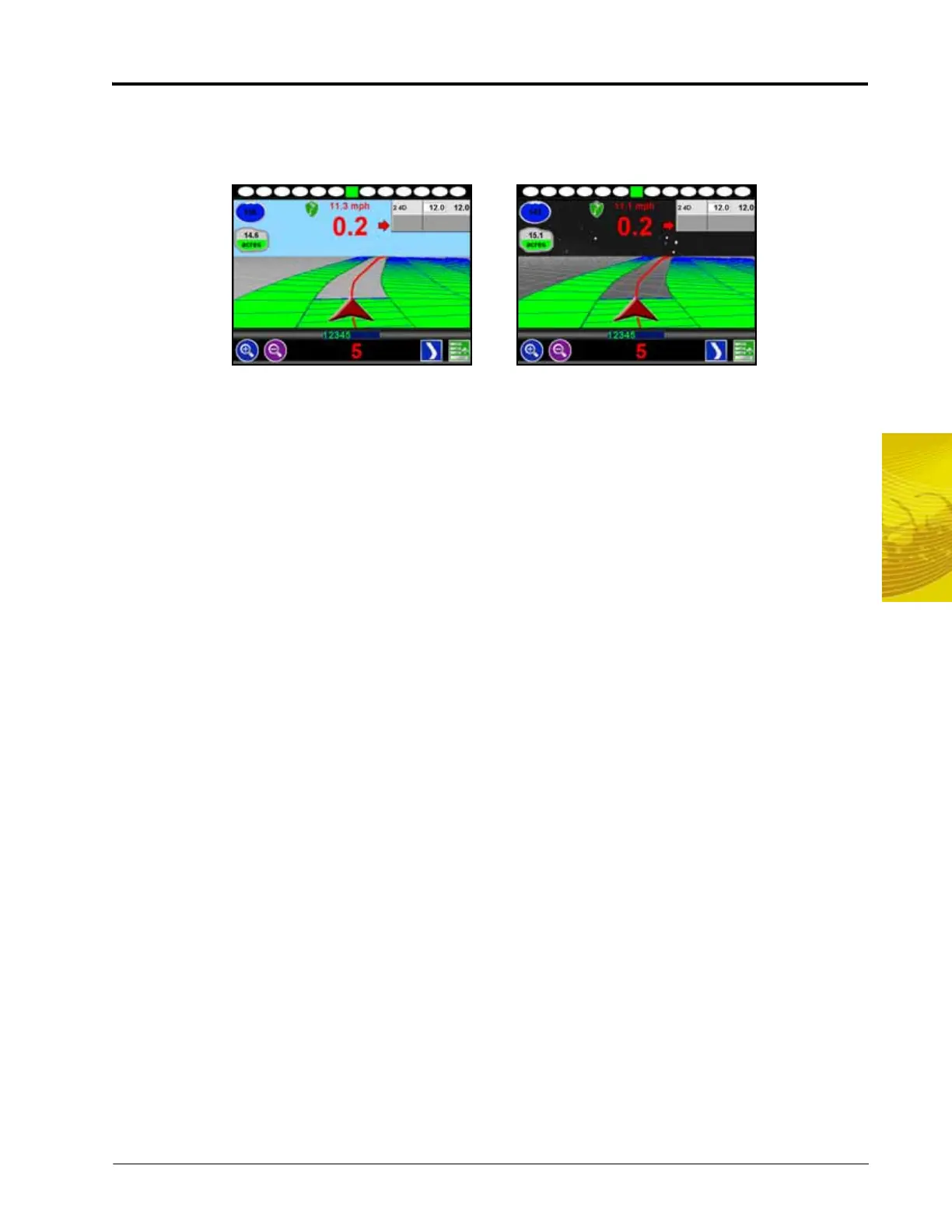

Display Mode
Select Day or Night to adjust the guidance screen for day or night operations.
Screen Brightness
The Screen slider adjusts the brightness of the field computer display.
On-Screen Lightbar
Offset Scale Sensitivity. The lightbar sensitivity can be adjusted to match the type of application with which
the field computer will provide guidance. Select between the coarse, normal and fine adjustments. The
example lightbar displays the units and measurements used for each setting.
External Lightbar
The brightness of an external lightbar, controlled by the field computer, may be adjusted using the External
Lightbar slider on the Display screen.
Note: The External Lightbar adjustment will only display if the field computer is configured to control an
external lightbar. See the Serial Port Configuration section on page 97 to setup the external
lightbar interface.
