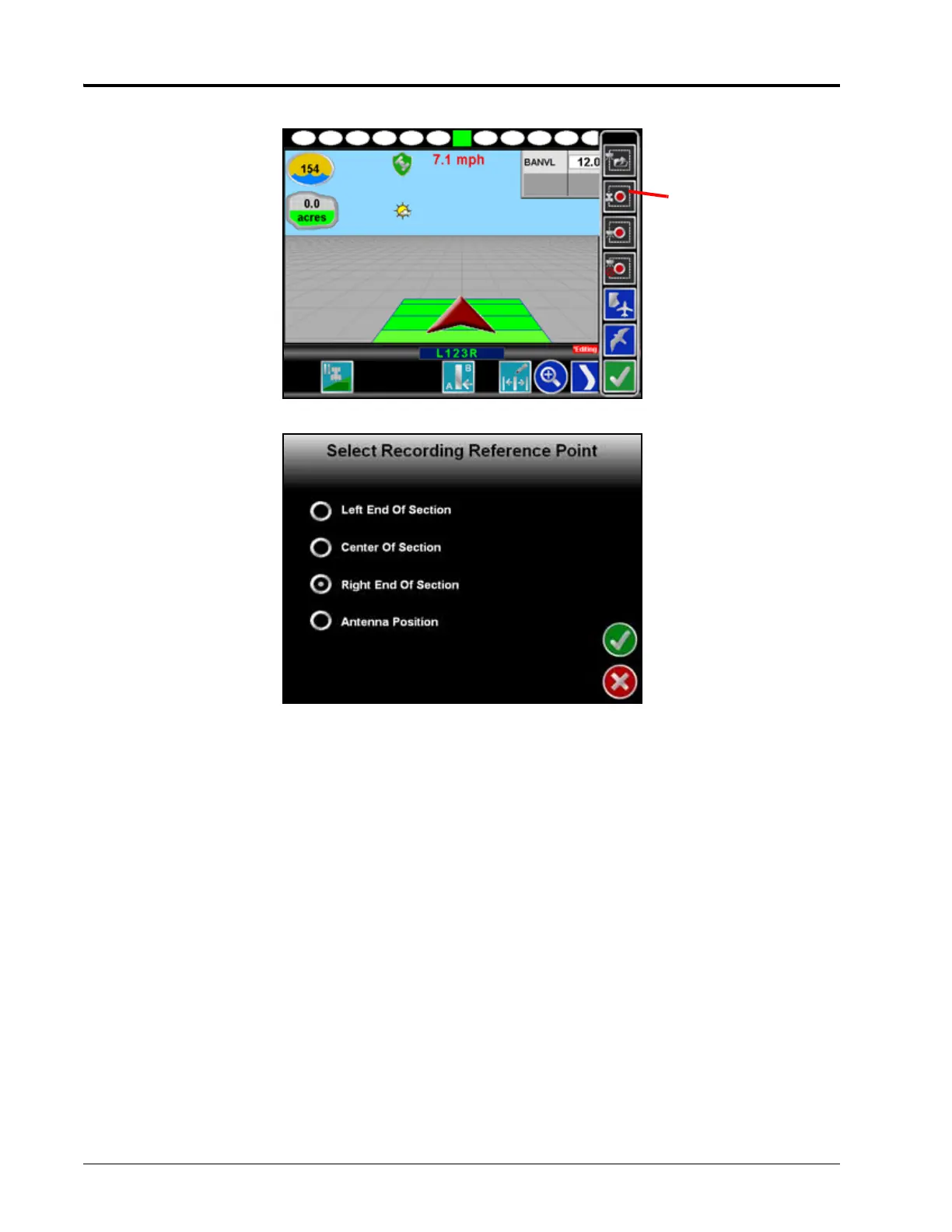

2. Select the Record Field Boundary button to begin recording a new AccuBoom field boundary.
3. The Select Reference Point screen appears.
The Reference Point is the point on the vehicle where the field computer will record the selected feature’s
boundary.
• Left and Right End of Boom options set the Reference Point at the left or right end of the
guidance width.
• Center of Boom sets the Reference Point at the center of the configured guidance width.
• Antenna Position uses the left/right and fore/aft offset values to determine the DGPS antenna
location.
4. To set the Reference Point, select the option that corresponds to the orientation of the vehicle with respect
to the feature being recorded and then touch the Accept icon.
Record AccuBoom
Field Boundary
