MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

8540780 • 30/03/2016 • Rev.26 111

English

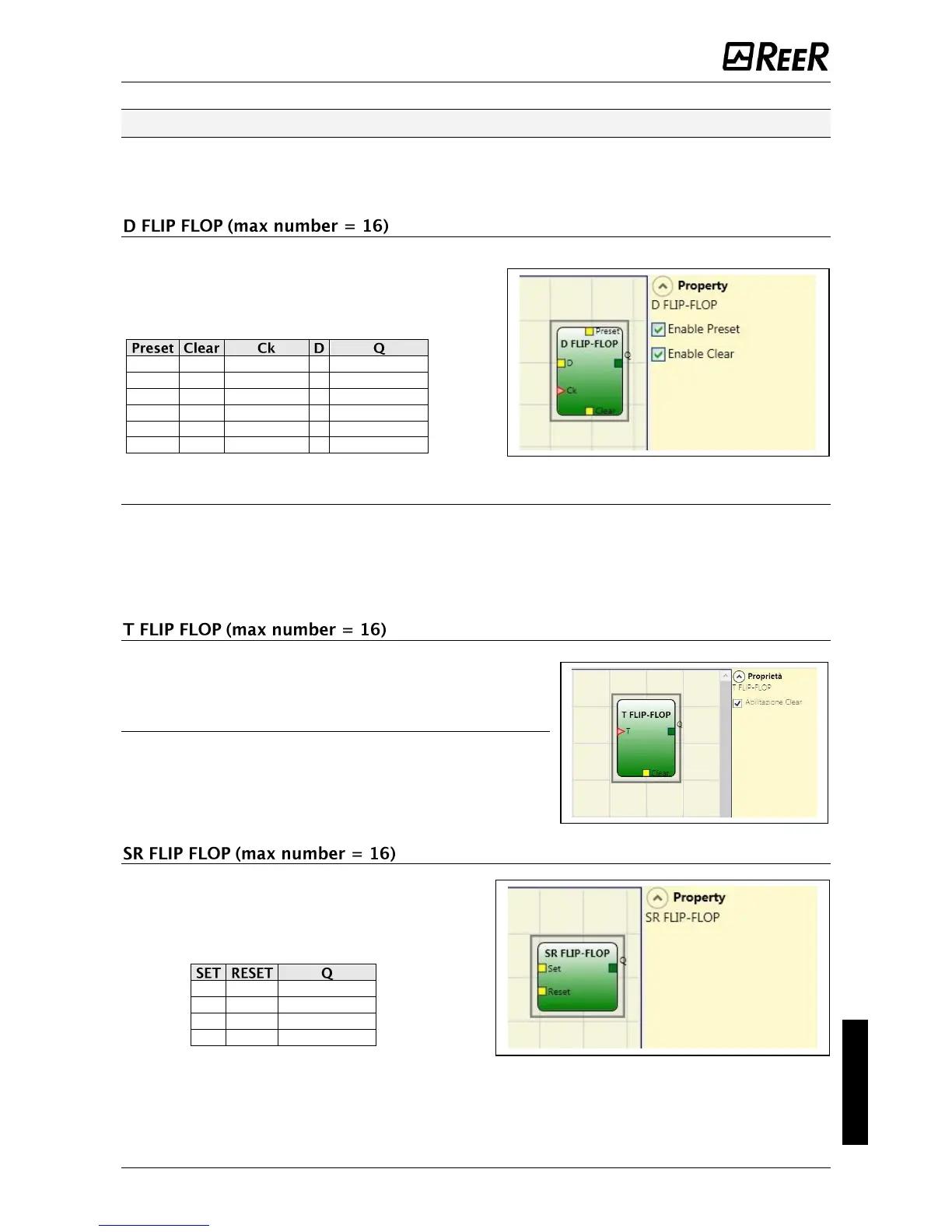

MEMORY OPERATORS

MEMORY operators can be used if you decide to save any data (TRUE or FALSE) from other

project components.

Status changes are performed according to the truth tables shown for each operator.

The D FLIP FLOP operator saves the previously

set status on output Q according to the

following truth table.

Keep memory

Rising edge

Parameters

Preset: If selected enables output Q to be set to 1 (TRUE).

Clear: If selected enables the saving process to be reset.

This operator switches the Q output at each rising

edge of the T input (Toggle).

Parameters

Enable Clear: If selected enables the saving process

to be reset.

SR FLIP FLOP operator brings output Q at 1

with Set, 0 with Reset.

See the following truth table.

Keep memory
