MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

64 8540780 • 30/03/2016 • Rev.26

english

Textual tool bar

Optionally the textual tool bar shown below is also available (drop down).

Figure 38

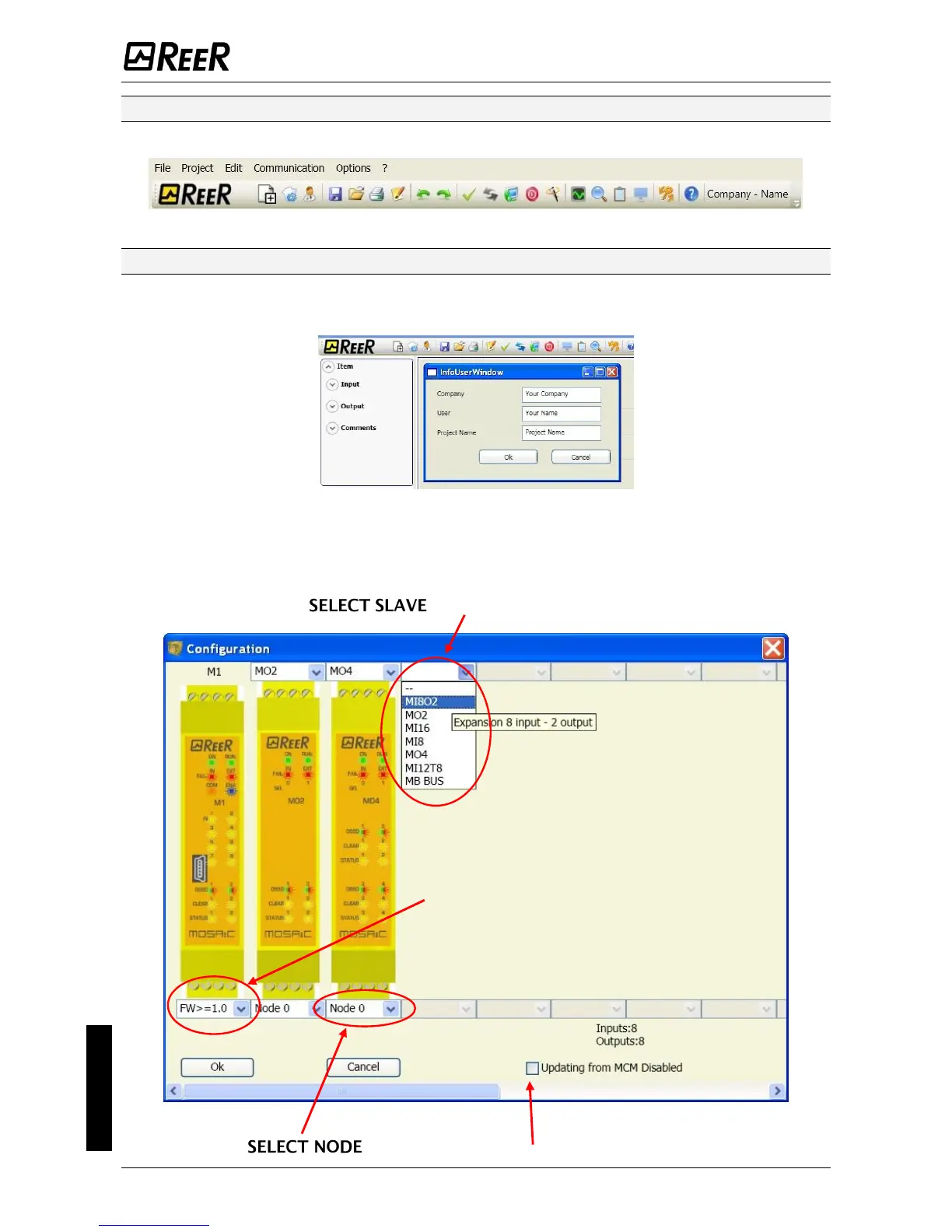

Create a new project (configure the MOSAIC system)

Select icon CREATE (Figure 37) from the standard tool bar to start a new project. The user

authentication window is displayed (Figure 39).

Figure 39

Next the MSD displays a window showing the M1 only.

You may add the various units needed to create your system, using the pull-down menus

at the top of the screen (select slave) and at the bottom to select the relative node (0÷3).

(to add to your configuration)

Figure 40

(from 0 to 3) Select to disable MCM operations

Firmware version
