Power-on test: If selected, enables the power-on test of the device. This test requires
activation and de-activation of the device in order to run a complete functional check and
enable the Output terminal. This test is required only at machine start-up (power-on of
the module).
Filter (ms): Permits filtering of signals from the device. This filter can be set to between 3
and 250 ms and eliminates any rebounds on the contacts. The duration of the filter
affects calculation of module total response time.
With simultaneity: If selected, activates control of simultaneity between switching of
signals from the device.
Simultaneity (ms): Is active only if the previous parameter is enabled. Determines the
maximum permissible time (msec) between switching of two different signals from the
sensor.
Enable Error Out: If selected reports a fault detected by the function block.
Item description: Permits insertion of a descriptive text of the function of the component.
This text will be displayed in the top part of the symbol.

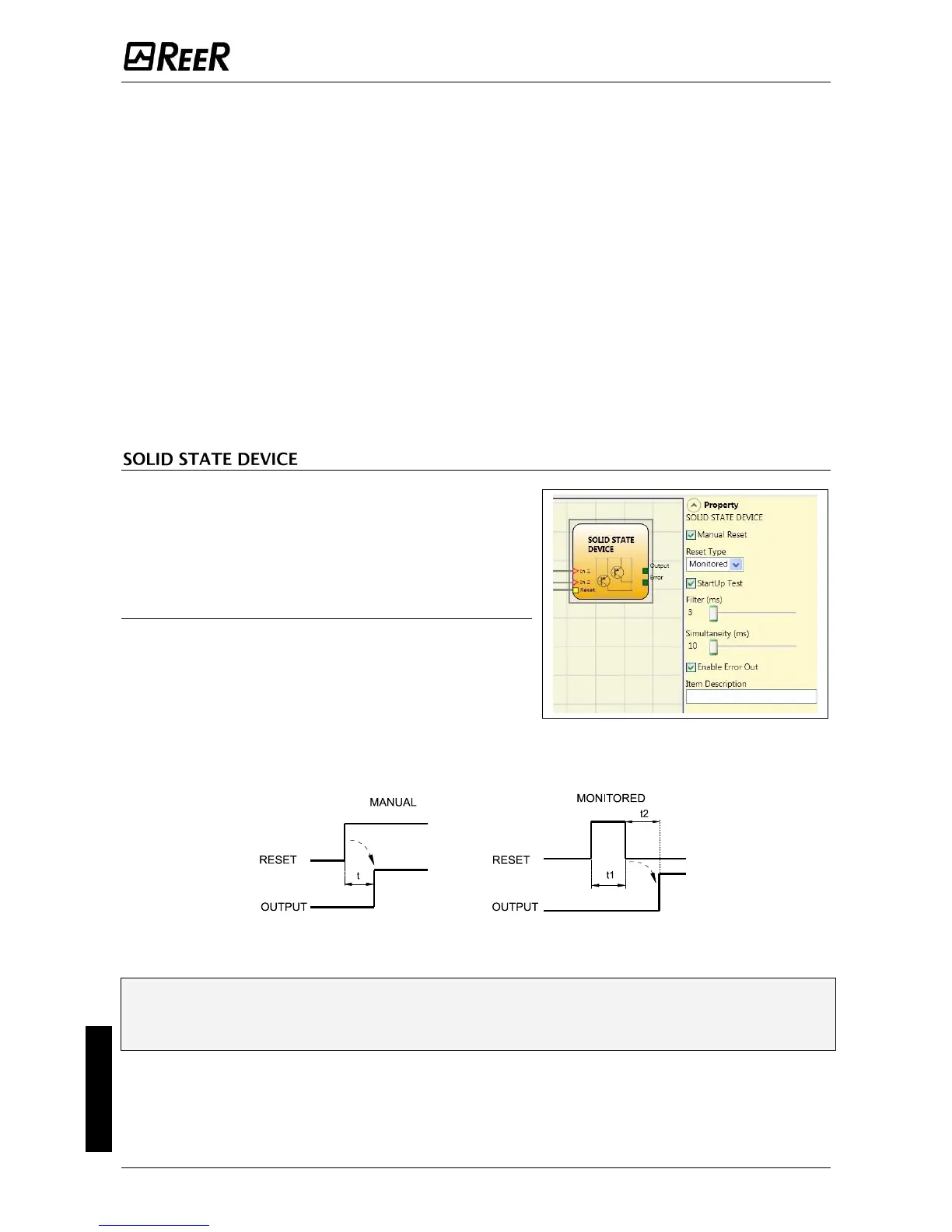

The SOLID STATE DEVICE functional block checks
the status of the Inx inputs. If the inputs are at
24VDC, the Output will be 1 (TRUE), otherwise the
OUTPUT will be 0 (FALSE).
Parameters
Manual Reset: If selected, enables the reset request
after each safety function activaction. Otherwise,
enabling of the output follows directly the
conditions of the inputs. Reset may be of two
types: Manual and Monitored. Selecting the Manual
option, only transition of the signal from 0 to 1 is
checked. If Monitored is selected, double transition from 0 to 1 and return to 0 is
checked.
WARNING: if Reset is enabled, the input consecutive to those used by the functional
block must be used. For example: if inputs 1 and 2 are used for the functional block,
input 3 must be used for Reset.
Power-on test: If selected, enables the power-on test of the safety device. This test
requires activation and de-activation of the device in order to run a complete functional
check and enable the Output terminal. This test is required only at machine start-up
(power-on of the module)
