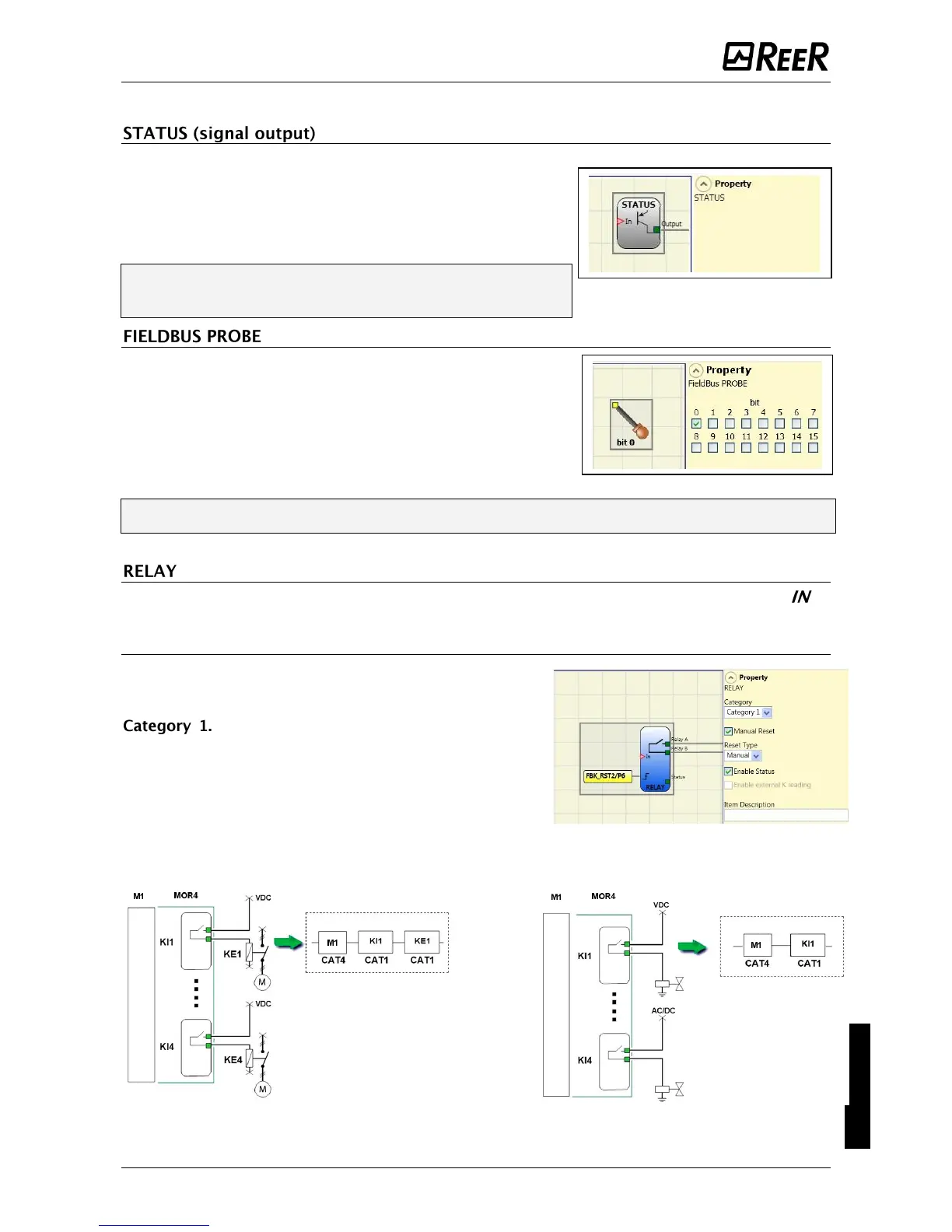

STATUS output (NOT SAFETY OUTPUT) makes it possible
to monitor any point on the diagram by connecting it to
the input. The output returns 24Vdc if the input is 1
(TRUE), or 0Vdc if the input is 0 (FALSE).
WARNING: The STATUS output is NOT a safety
output.
Element that permits display of the status of any point
of the scheme on the fieldbus.
Up to 16 probes can be inserted and the bit on which
status is represented must be entered for each.
States are represented with 2 bytes on the fieldbus.
(For more detailed information, consult the fieldbus
manual on the MSD CD-ROM).
WARNING: the PROBE output is NOT a safety output
The Output relay is a N.O. relay output. Relay outputs are closed when the input is
equal to 1 (TRUE), otherwise they are open (FALSE).
Parameters
Category There is a choice of 3 different relay
output categories:
Outputs with single Category 1 relay. Each
MOR4/S8 unit may have up to 4 of these outputs.
Features:
• Internal relays are monitored.
• EDM feedback (check of FBK 1-4) not used (not
requested for Category 1).
• Each output can be set as AUTO or MANUAL RESTART.
Example with external relay Example with the internal relay only
