MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

8540780 • 30/03/2016 • Rev.26 107

English

All the input of these operators could be inverted (logical NOT). It could be done clicking

with the right mouse key on the input to be inverted. A little circle will be showed on the

inverted input. To cancel the inversion, simply click another time on the same input pin.



The maximum number of user blocks is 64.

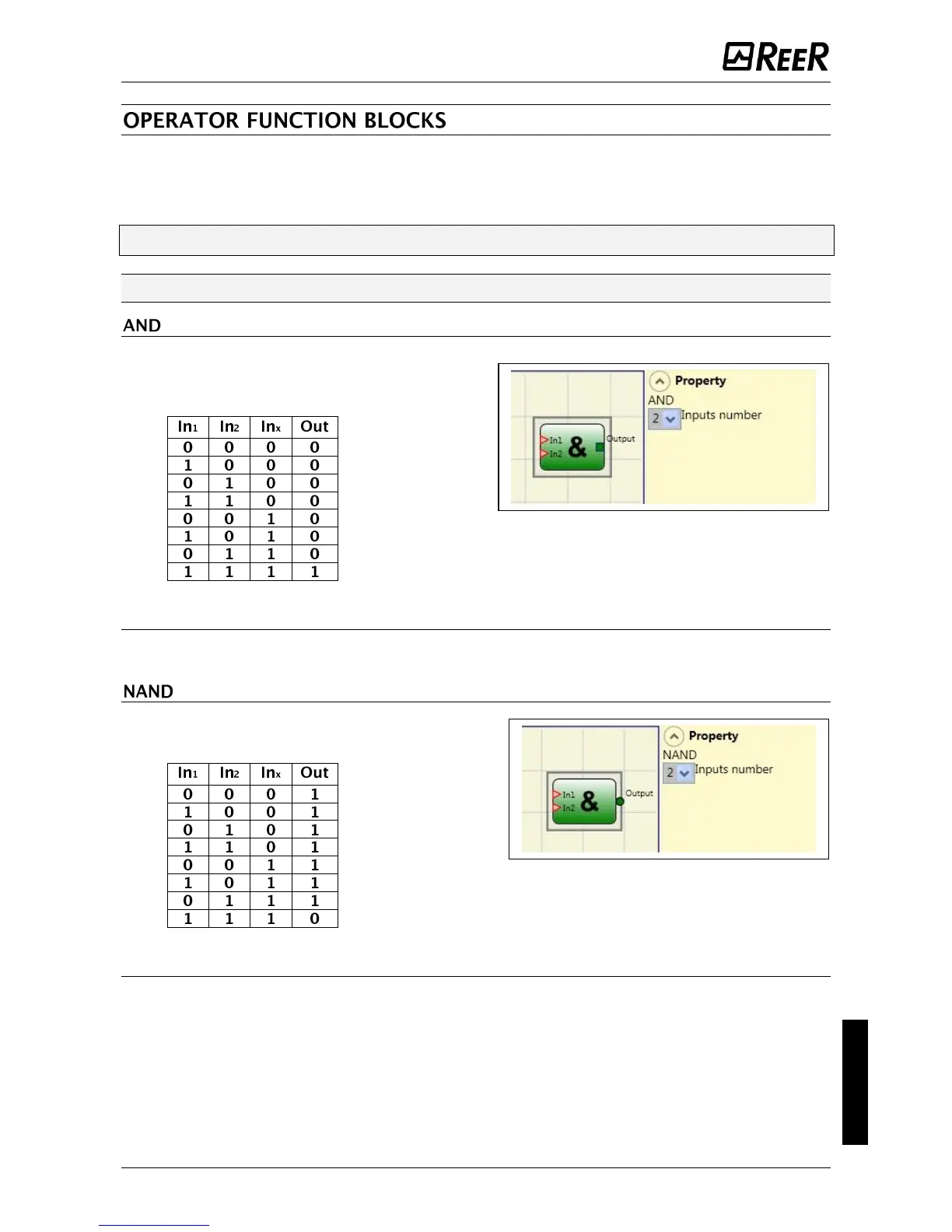

LOGICAL OPERATORS

Logical AND returns an output of 1 (TRUE) if

all the inputs are 1 (TRUE).

Parameters

Number of inputs: this is used to set between 2 and 8 inputs.

Logical NAND returns an output of 0 (FALSE) if

all the inputs are 1 (TRUE).

Parameters

Number of inputs: this is used to set between 2 and 8 inputs.
