TIMER OPERATORS (max number = 32)
TIMER operators allow you to generate a signal (TRUE or FALSE) for a user-definable
period.

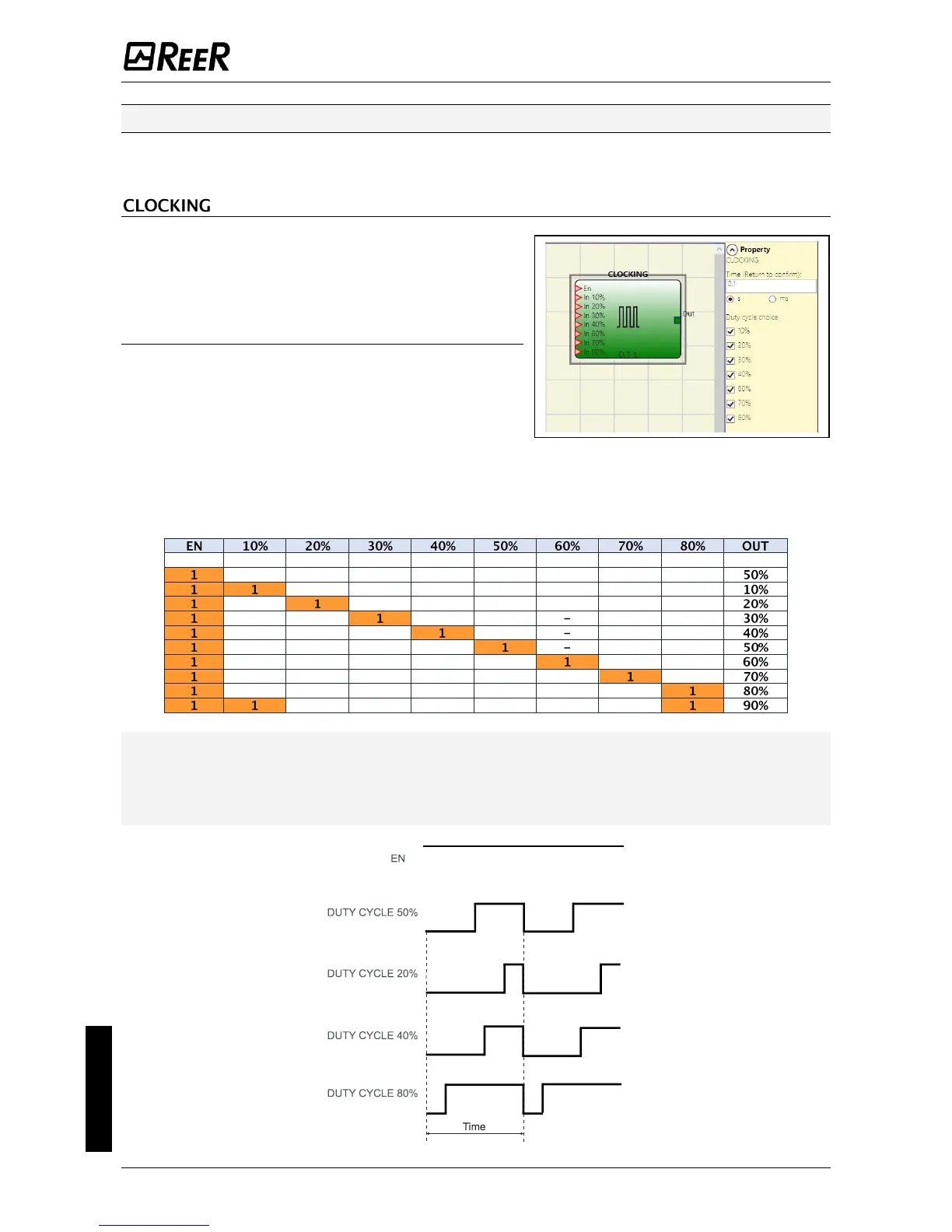

The CLOCKING operator generates a clock signal
output with the set period if the IN input is 1
(TRUE). Clocking has up to 7 inputs to control
output Duty Cycle.
Parameters
Time: The period can be set to between 10 ms and
1098.3 s.
Duty cycle selection: Up to 7 inputs can be
selected for 7 different output signal duty cycles.
Depending on the active input, the OUT clock signal has its corresponding duty cycle.
EN input must always be high level (TRUE).
Refer to the table below to check operator functioning.
The circuit upstream of the CLOCKING operator must guarantee the presence of a
single input signal other than the EN enable (apart from the pair 10% 80%).
The presence of the EN input together with > 1 high level (TRUE) inputs, generates
an output signal with a duty cycle = 50%.
