MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

8540780 • 30/03/2016 • Rev.26 27

English

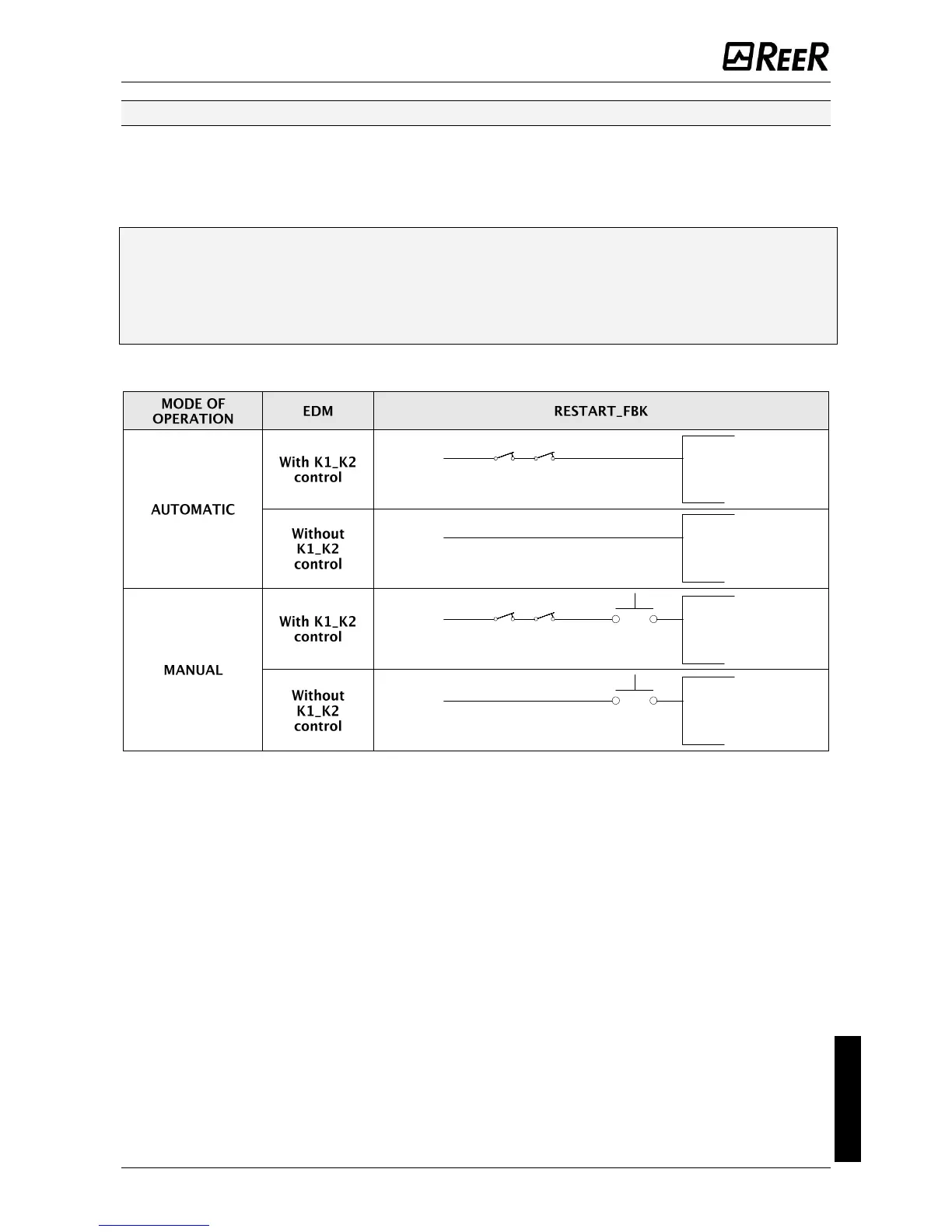

RESTART_FBK

The RESTART_FBK signal input allows the MOSAIC to verify an EDM (External Device

Monitoring) feedback signal (series of contacts) from the external contactors, and to

monitor Manual/Automatic operation (See the list of possible connections in Table 16).

 If the application requires it, the response time of the external contactors must be

verified by an additional device.

 The RESTART command must be installed outside the danger area in a position where

the danger area and the entire work area concerned are clearly visible.

 It must not be possible to reach the control from inside the danger area.

24V

ext_Restart_fbk

24V

ext_Restart_fbk

24V

ext_Restart_fbk

24V

ext_Restart_fbk

Table 16
