MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

8540780 • 30/03/2016 • Rev.26 51

English

MI8O2 (Figure 26)

OFF

Shows the

physical

address of the

unit

OFF

Red

OFF

• Return the unit to

ReeR to be repaired

OFF

• Firmware version not

compatible with M1,

return to ReeR for FW

upgrade.

OFF

• Check OSSD1/2

connections

• If the problem

persists, return the

MI8O2 to ReeR to be

repaired

OFF

• Restart the system

• If the problem

persists, return the

MI8O2 to ReeR to be

repaired

OFF

• Restart the system

• Check which unit is in

FAIL mode

OFF

• Change the unit's

address (see

)

OFF

• Return the unit to

ReeR to be repaired

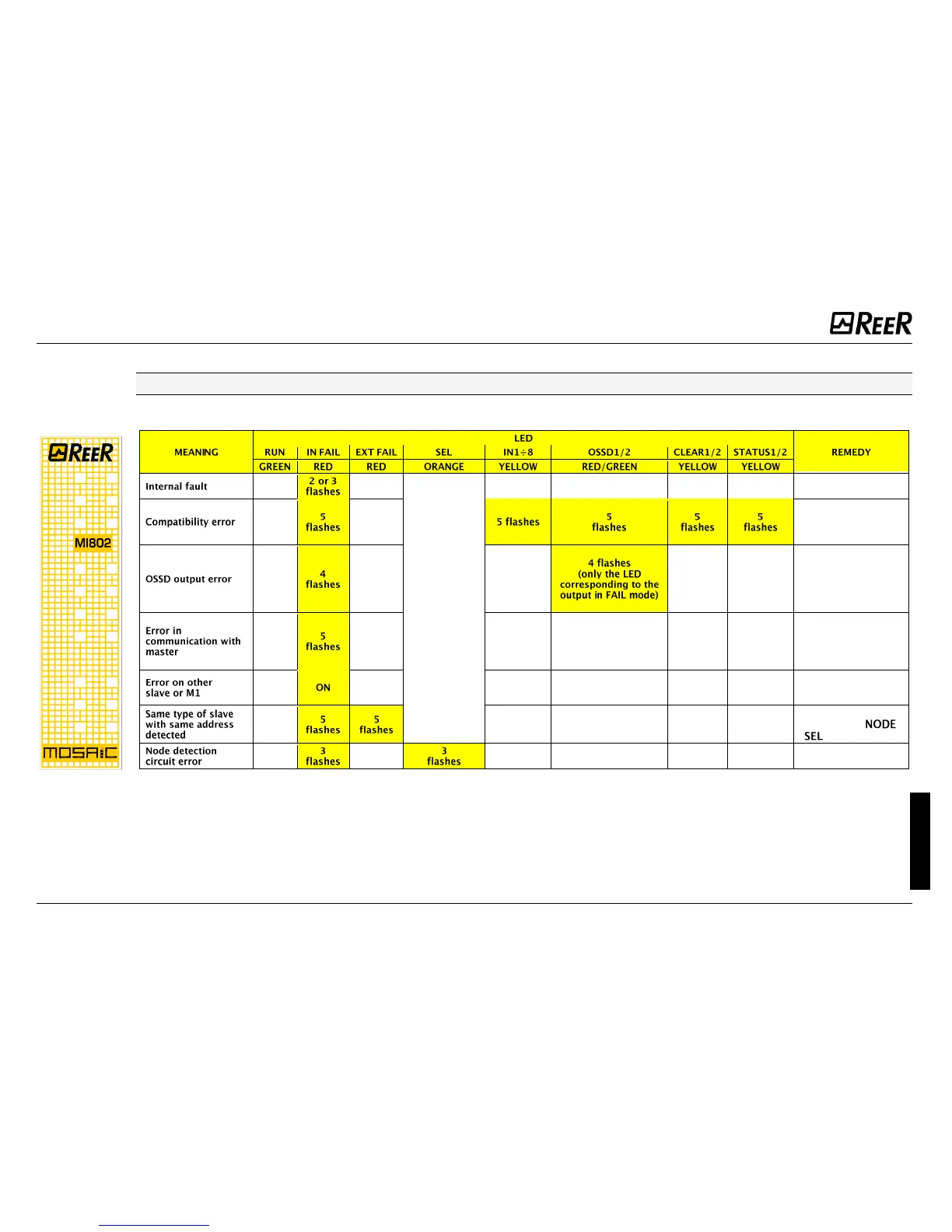

Table 46 - Troubleshooting MI8O2

SEL

EXT

RUNON

FAIL

STATUS

CLEAR

OSSD

Figure 26 - MI8O2
