Enable Error Out: If selected reports a fault detected by the function block.
Item description: This allows a description of the component's function to be entered. The
text is displayed in the top part of the symbol.

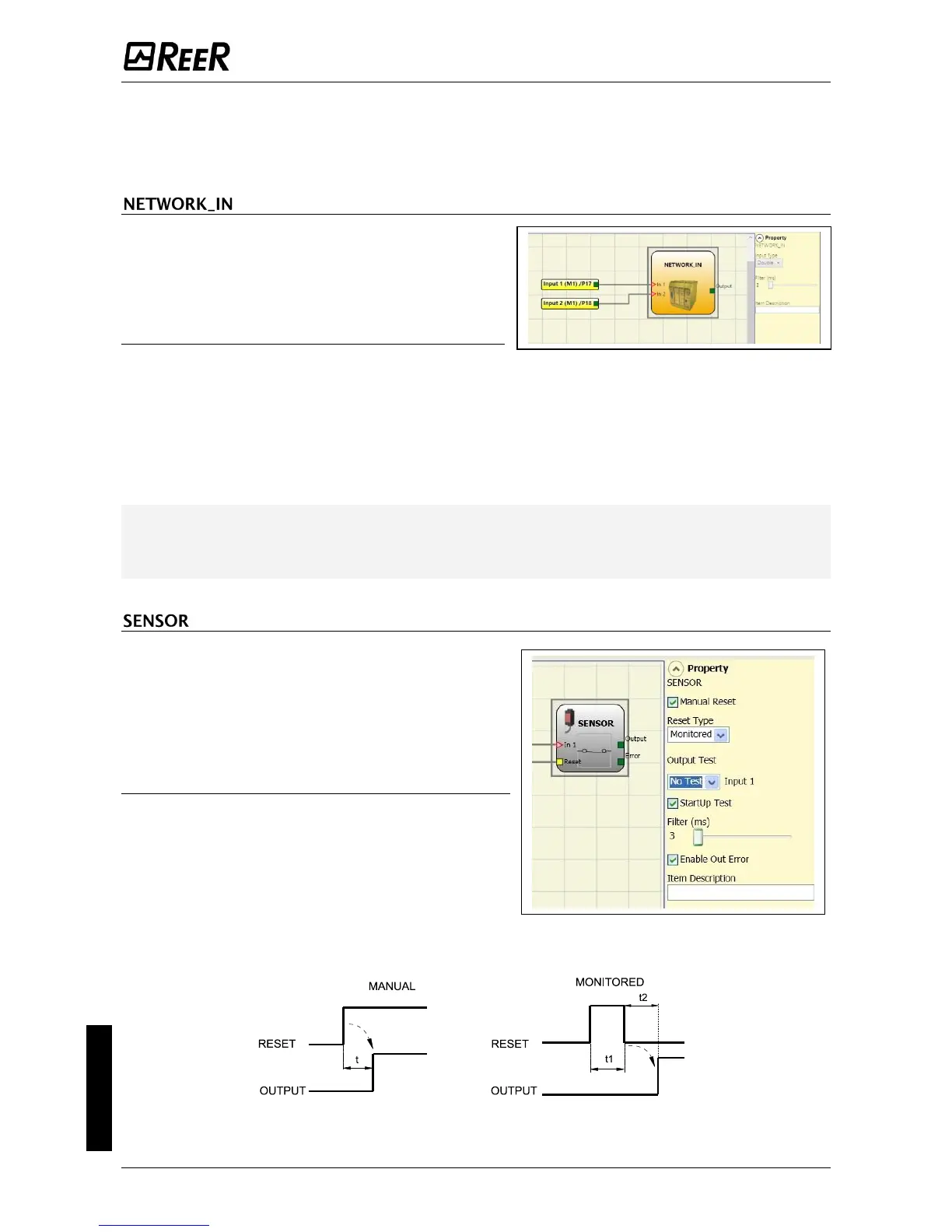

This functional block implements a Network
connection input interface; it generates an LL1
in the OUT output when the line is high,
otherwise an LL0.
Parameters
Type of input:
- Single - enables the connection of Signaling outputs of an additional M1 unit.
- Double - enables the connection of OSSD outputs of an additional M1 unit.
Filter (ms): Enables the filtering of signals from an additional M1 unit.
This filter can be set to between 3 and 250 ms. The length of the filter affects the
calculation of the unit's total response time.
This input can only be allocated on M1.
This input must be used when Mosaic OSSD outputs are connected to the inputs of a
second downstream Mosaic or together with the NETWORK operator.
The SENSOR function block verifies the status of
the input of a sensor (not a safety sensor). If the
beam of the sensor is occupied (sensor output
FALSE) the output is 0 (FALSE). Otherwise, with
the beam clear and an output of 1 (TRUE) then
the output is 1 (TRUE).
Parameters
Manual reset: If selected this enables the request
to reset each time the area protected by the
sensor is occupied. Otherwise, enabling of the
output directly follows the input conditions.
There are two types of reset: Manual and
Monitored. When Manual is selected the system
only verifies the signal's transition from 0 to 1. If
Monitored is selected the double transition from 0 to 1 and then back to 0 is verified.
