MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

8540780 • 30/03/2016 • Rev.26 123

English

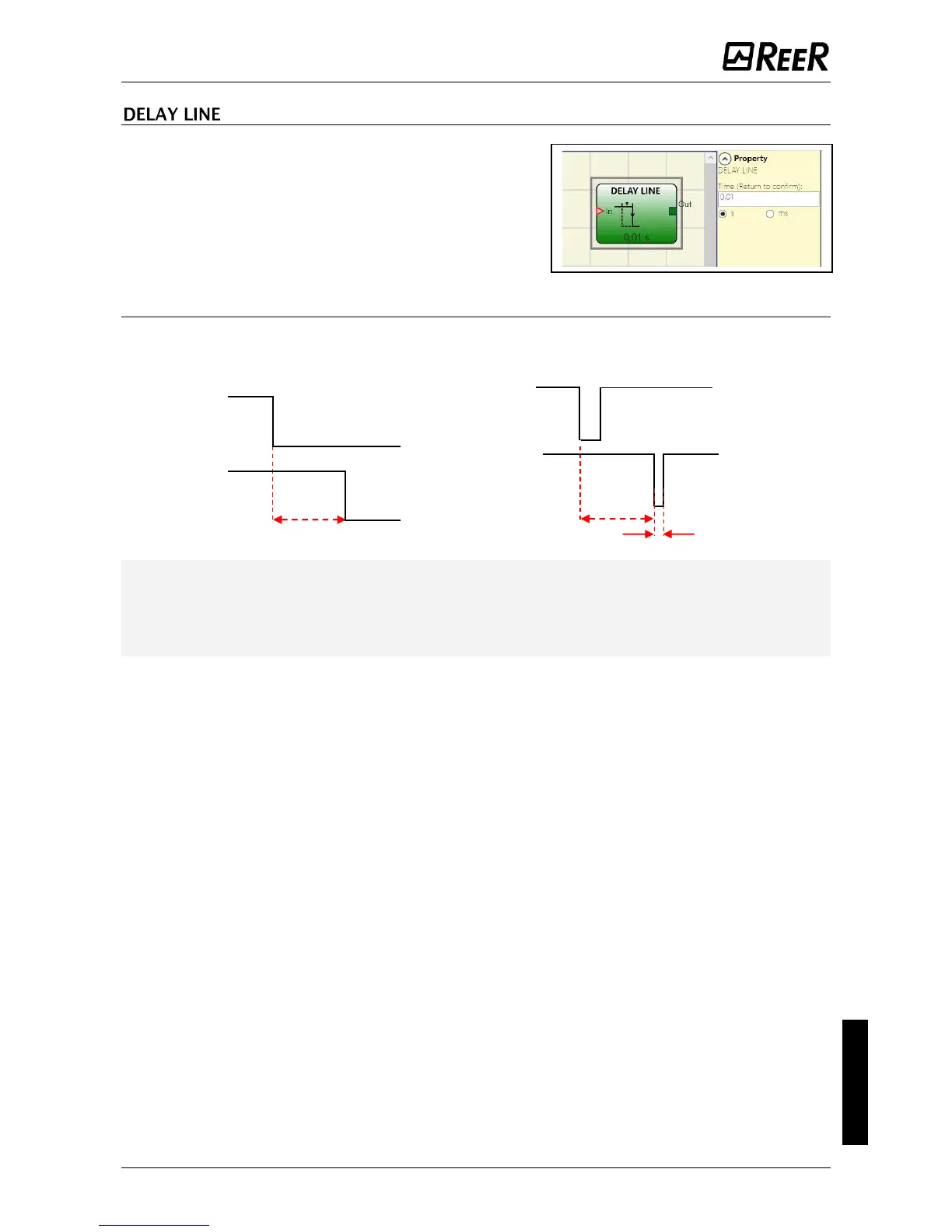

This operator applies a delay to a signal by setting the

OUT output to 0 after the set time, set at a falling edge of

the IN signal.

If IN returns to 1 before the end of the set time, the OUT

output still generates an LL0 impulse lasting

approximately twice the response time and delayed by the

set time.

Parameters

Time: Enables the insertion of the desired delay time by selecting the preferred unit of

measurement. The delay can be set to between 10 ms and 1098.3 s.



Unlike the DELAY operator, the DELAY LINE operator does not filter any

interruptions in the IN input which are shorter than the set time.



This operator is recommended when using delayed OSSD (the OSSD must be

programmed with RESTART MANUAL).

OUT

2xtrisp
