Filter (ms): Permits filtering of signals from the safety device. This filter can be set to
between 3 and 250 ms and eliminates any rebounds on the contacts. The duration of the
filter affects calculation of module total response time.
Simultaneity (ms): always active. Determines that maximum permissible time (msec)
between switching of the various signals from the external contacts of the device.
Enable Error Out: If selected reports a fault detected by the function block.
Item description: Permits insertion of a descriptive text of the function of the component.
This text will be displayed in the top part of the symbol.

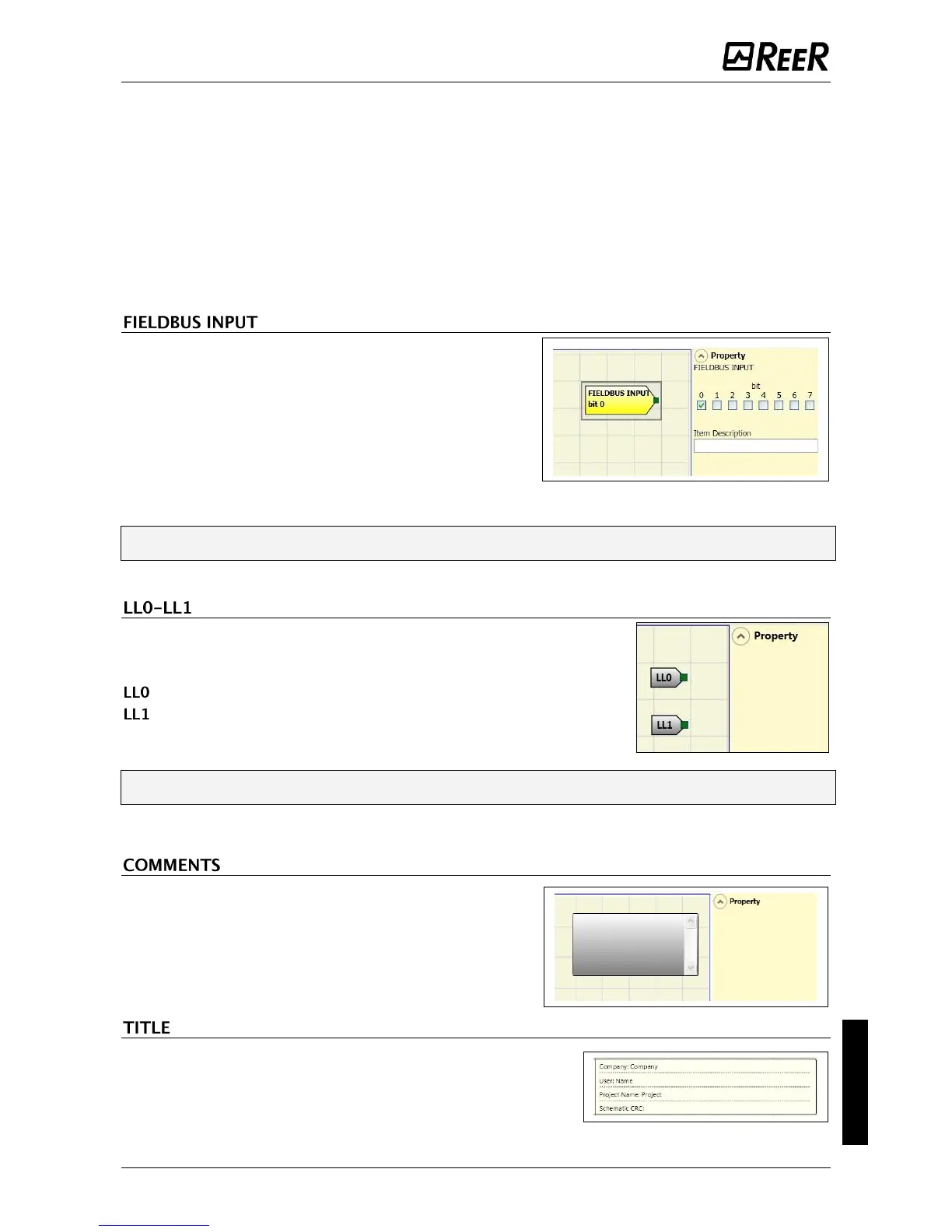

Element that permits insertion of a non-safety input
whose status is modified via the fieldbus.
Up to 8 virtual inputs can be inserted and the bit
on which status is to be modified must be selected
for each.
They are represented with one byte on the fieldbus.
(For more detailed information, consult the fieldbus
manual on the MSD CD-ROM).
WARNING: the FIELDBUS INPUT is NOT a safety input.
These allow a predefined logical level to be entered on a component’s
input.
-> logical level 0
-> logical level 1
IMPORTANT: LL0 and LL1 cannot be used to disable the logical ports in the diagram.
This allows a description to be entered and placed
in any point of the diagram.
Automatically adds the name of the manufacturer, the
designer, the project name and the CRC.
