MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

122 8540780 • 30/03/2016 • Rev.26

English

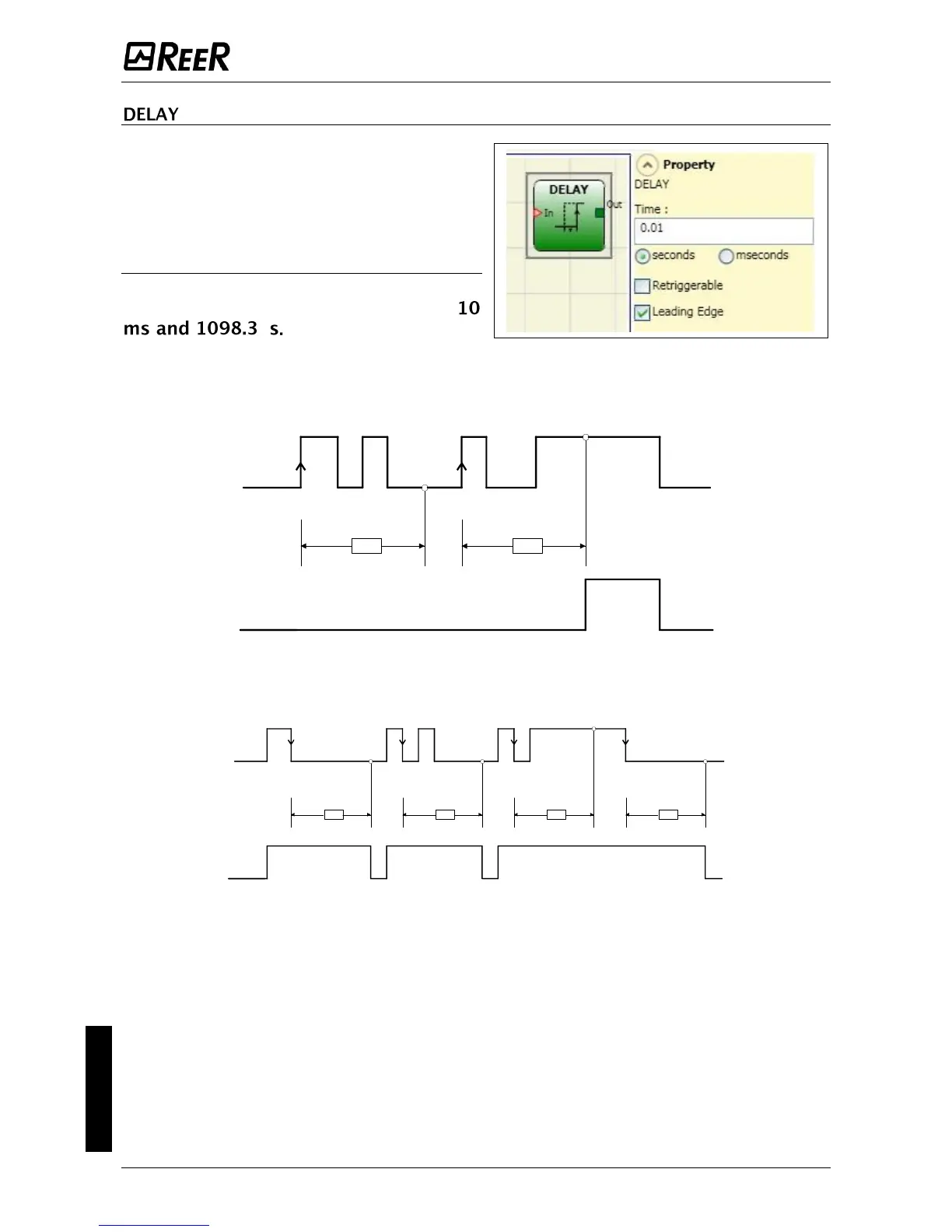

DELAY operator applies a delay to a signal by

setting the output to 1 (TRUE) after the set

time, against a change in the level of the

input signal.

Parameters

Time: The delay can be set to between

Rising edge: If selected, the delay starts on the input signal's rising edge at the end of

which the output changes to 1 (TRUE) if the input is 1 (TRUE) where it remains for as long

as the input stays at 1 (TRUE).

Out

T T

If not selected the logic is inverted, the output is set to 1 (TRUE) on the input signal's

rising edge, the delay starts on the input signal's falling edge, at the end of the set time

the output changes to 0 (FALSE) if the input is 0 (FALSE) otherwise it remains 1 TRUE.

Out

T T T T

Retriggerable: If selected the time is reset each time the input status changes.
