MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
8540780 • 30/03/2016 • Rev.26 135
English

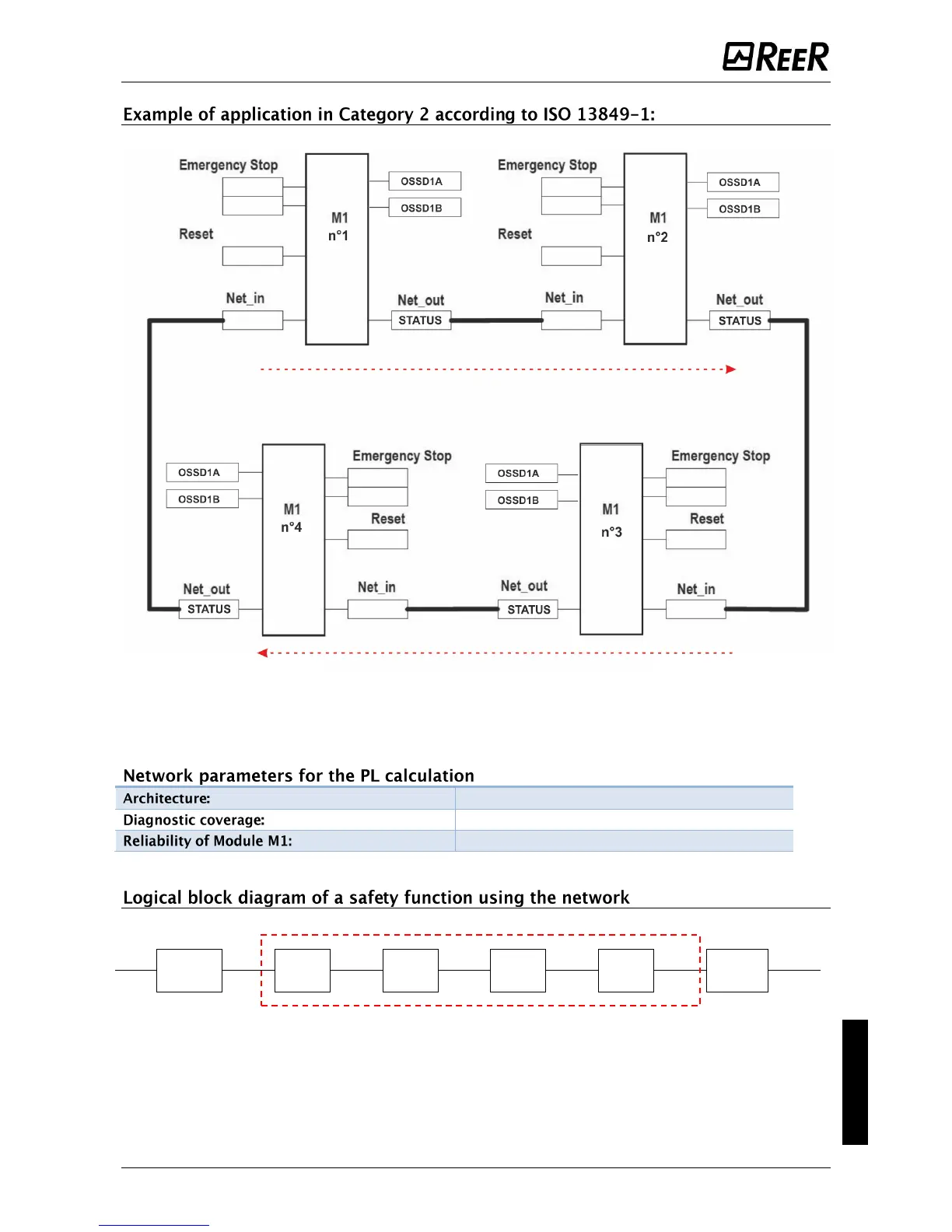

Network data flow
Figure 57
Cat.2
DC = 90%
MTTFd = 437 (years)
INPUT
M1 n°1
M1 n°2
M1 n°3
M1 n°4
OUTPUT
LOGIC (NETWORK)
