Reer MOSAIC Master M1 User Manual

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
8540780 • 30/03/2016 • Rev.26 137
English

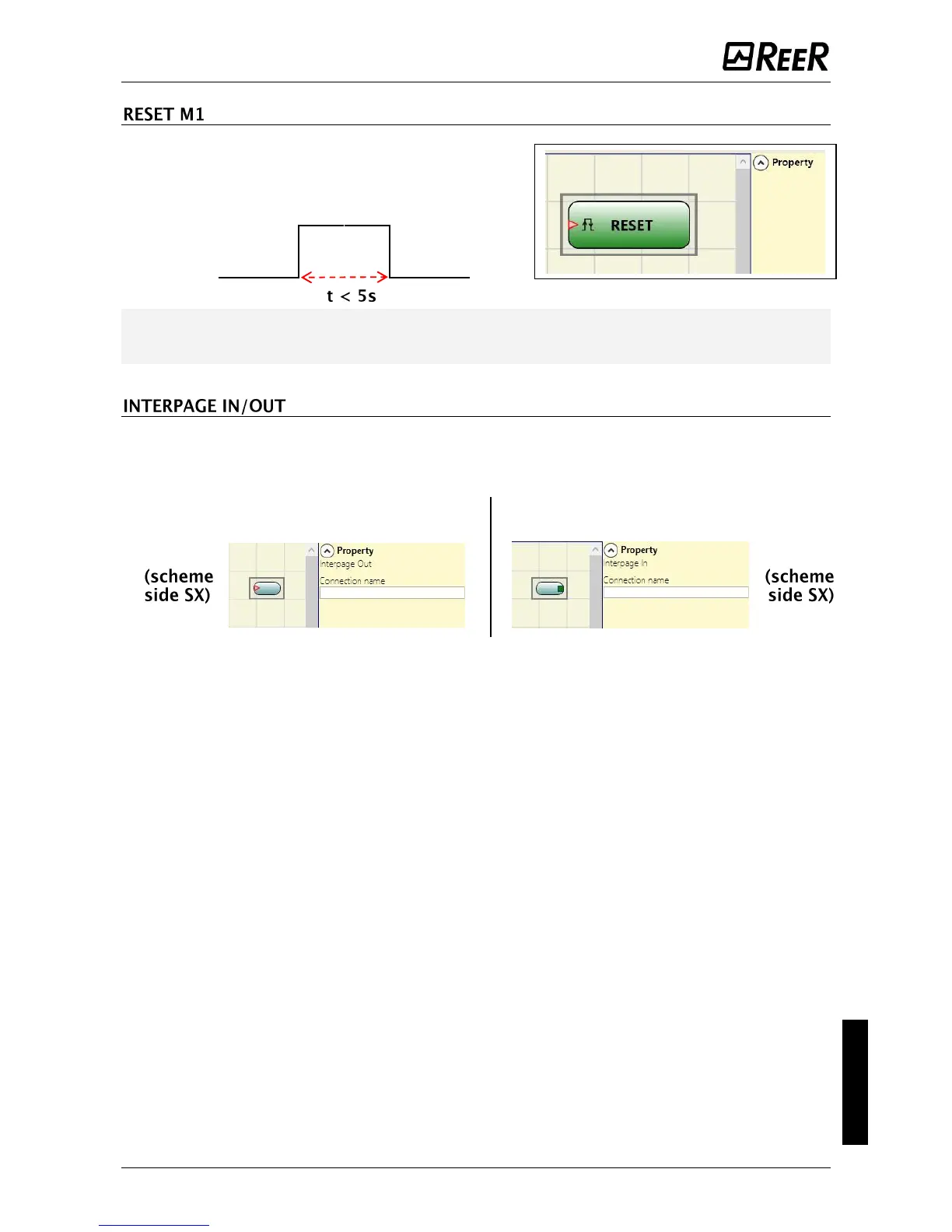

This operator generates a system Reset when
there is a double OFF-ON-OFF transition on the
corresponding input which lasts less than 5 s.

If > 5s, RESET is not generated.

It can be used to reset faults without disconnecting system power.
If the scheme is very complicated and requires a connection between two elements very
far, use the "Interpage" component.
INTERPAGE OUT
INTERPAGE IN
The element "Interpage out" must have a name which, invoked by the
corresponding "Interpage in", allows the desired link.
t
IN

Reer MOSAIC Master M1 Specifications

General

Type	Safety Controller
Operating Voltage	24 VDC
Protection Rating	IP20
Communication	Ethernet
Safety Standards	EN ISO 13849-1
