External K delay (ms): Select the Maximum delay the external contactors are allowed to
introduce. This value can be used to check the maximum delay between switching of the
internal relays and switching of the external contactors (during both activation and
deactivation).
Manual Reset: If selected this enables the request to reset each time the IN input signal
falls. Otherwise, the output is enabled directly according to the condition of the IN input.
There are two types of reset: Manual and Monitored. When Manual is selected the system
only verifies the signal’s transition from 0 to 1. If Monitored is selected, the double
transition from 0 to 1 and then back to 0 is verified.
Enable status: If selected this enables the connection of the current status of the relay
outputs to a STATUS.

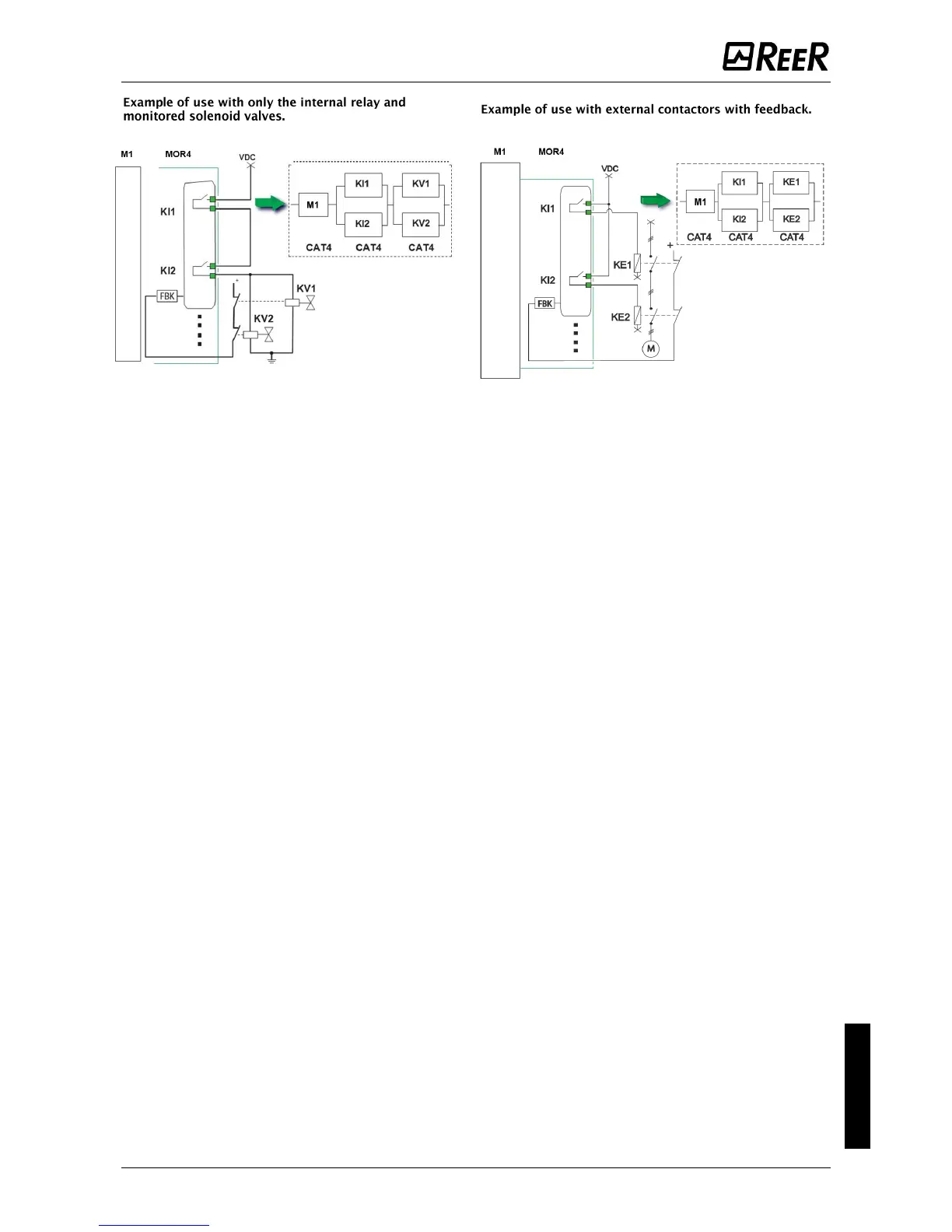

Enable reading of external K: When this is selected it enables reading and verification of
external contactor switching times:
With Category 1 control of external contactors cannot be enabled.
With Category 4 control of external contactors is mandatory (always enabled).
