64 RT100 Control System - Maintenance/repair RT100 Control System

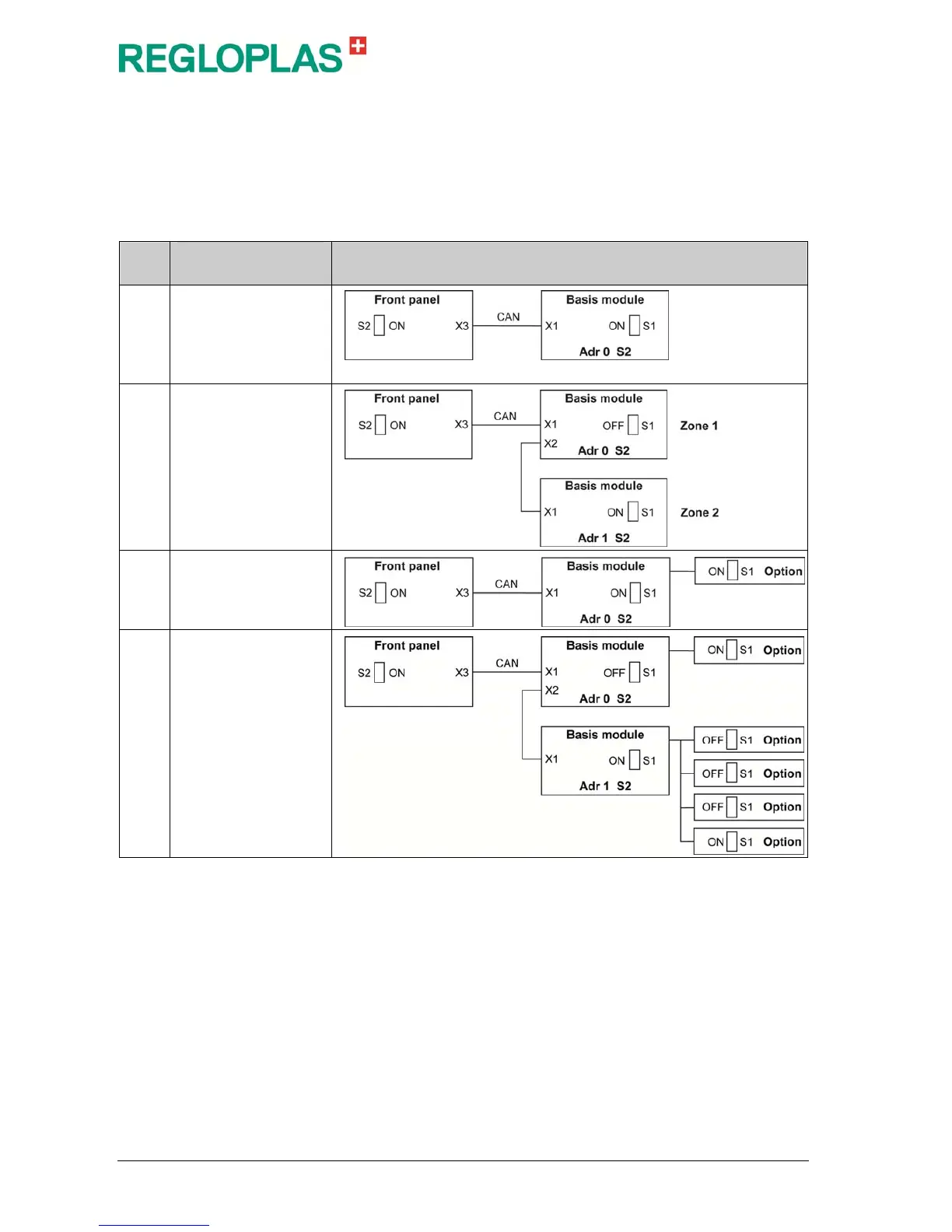

CAN terminating resistors and address settings
On delivery of the assembly, the CAN terminating resistors on the base
module (switch S1) and on the front panel (switch S2) are set to ON.
On delivery, the address of the base module is 0 (rotary switch S2).
In the case of dual units, address 1 is set for zone 2 (rotary switch S2).
No.
Connection com-
bination
Description
1
Front panel with one
base module
Both terminating resistors are switched on (checked by Regloplas)
2
Front panel with two
base modules
3 One option
4 Several options
