USER GUIDE
SMART-SPACE CONTROLLER
SMART-SPACE CONTROLLER
™
SMART-SPACE CONTROLLER
The Reliable Controls
®
SMART-Space Controller
™
is a fully programmable, BACnet
®
controller in a
compact, economical wall-mount package.
Three base models provide input/output capacity to match standard single zone HVAC applications
including radiators, reheat coils, fan coils, heat pumps, VVT boxes, and small packaged rooftop units.

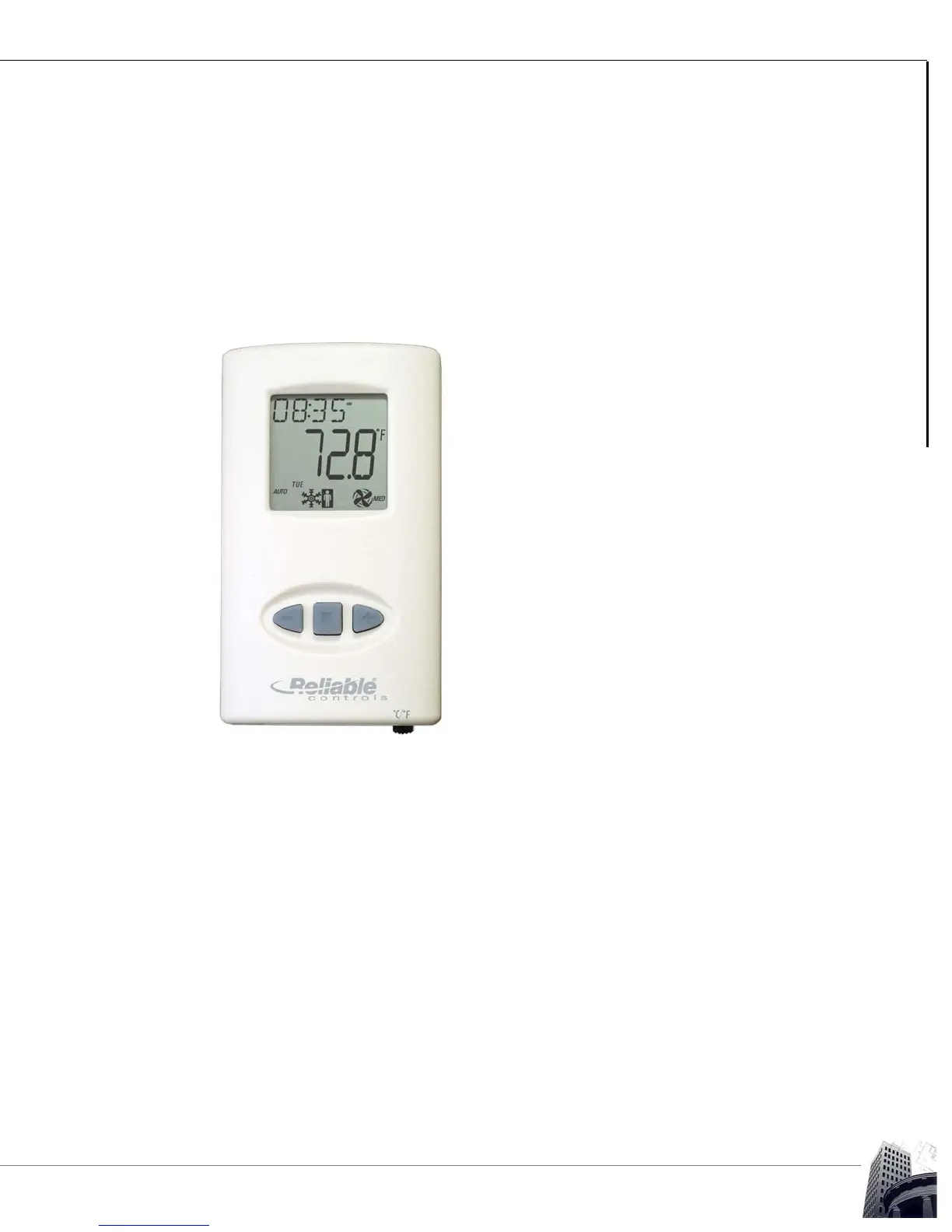

FIGURE 1: SMART-SPACE CONTROLLER
• Standalone operation, or part of any BACnet MS/TP network
• Programmable BACnet schedule with onboard real-time clock and optional
capacitor backup
• Three base models with different input/output configurations ranging from 2
inputs and 2 outputs up to 3 inputs and 4 outputs, plus an onboard temperature
sensor and optional humidity, occupancy, and CO2 sensors
•
Optional Degrees switch allows selection of
o
C or
o
F display units
• Fully programmable, with up to four programs, 2000 bytes each.
• Ventilated base-plate and latching relays minimize on-board heating and allow
for accurate room temperature readings.
• Display/adjust up to 10 points via the LCD screen
• 5-year warranty
