INSTALLATION PROCEDURE
USER GUIDE
INSTALLATION
SMART-SPACE CONTROLLER
™
DISASSEMBLY
The SMART-Space Controller can be disassembled into two main pieces: the controller
head, and the backplate. Prior to installation, remove the controller head using the steps
below.
TO REMOVE THE CONTROLLER HEAD
1
Use a
1
/
16
" Allen key to tighten (clockwise) the two Allen screws at the bottom of
the controller.

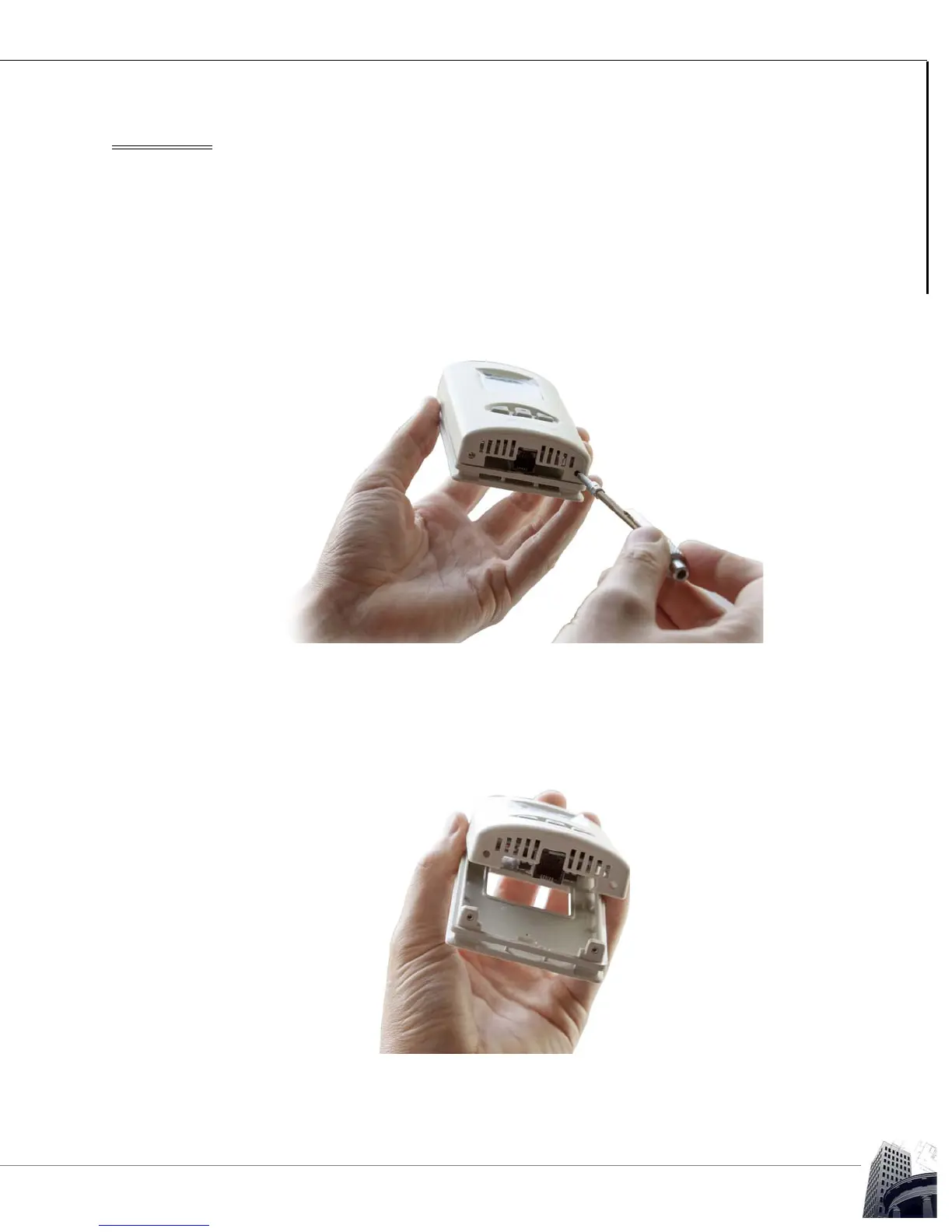

FIGURE 6: ALLEN SCREWS
2 Pull the bottom of the controller head outwards and rotate it upwards.
FIGURE 7: CONTROLLER HEAD SEPARATION
