Reliable Controls SMART-Space Controller User Manual

BACNET NETWORK APPLICATIONS
34
 2012-2015 Reliable Controls Corporation
OUTPUTS
As detailed in Table 5, each of the three SMART-Space Controller base models has a
different output configuration.
JUMPER SETTINGS
For outputs that are selectable as universal or relay, a corresponding jumper shunt is
located between the two terminal strips of a SMART-Space Controller.
5 Click the Write Property button to send the calibration value to the controller.
Successful Write should appear near the bottom of the dialog box.
6 Click the Read Property button at the bottom of the dialog box to check that
the new value was written correctly. The present value displayed will be slightly
different than the calibration value due to constant fluctuations of CO2.
7 The CO2 sensor is now calibrated.
TABLE 5: OUTPUT CONFIGURATIONS
Model Output Configuration
SMART-Space Controller (SSC)
2 outputs, each jumper selectable as universal or relay
SMART-Space Controller Package (SSCP)
Output 1 is jumper selectable as universal or relay
Outputs 2, 3, and 4 are fixed relay
SMART-Space Controller Enhanced (SSCE)
Outputs 1 and 2 are jumper selectable as universal or relay
Outputs 3 and 4 are fixed relay

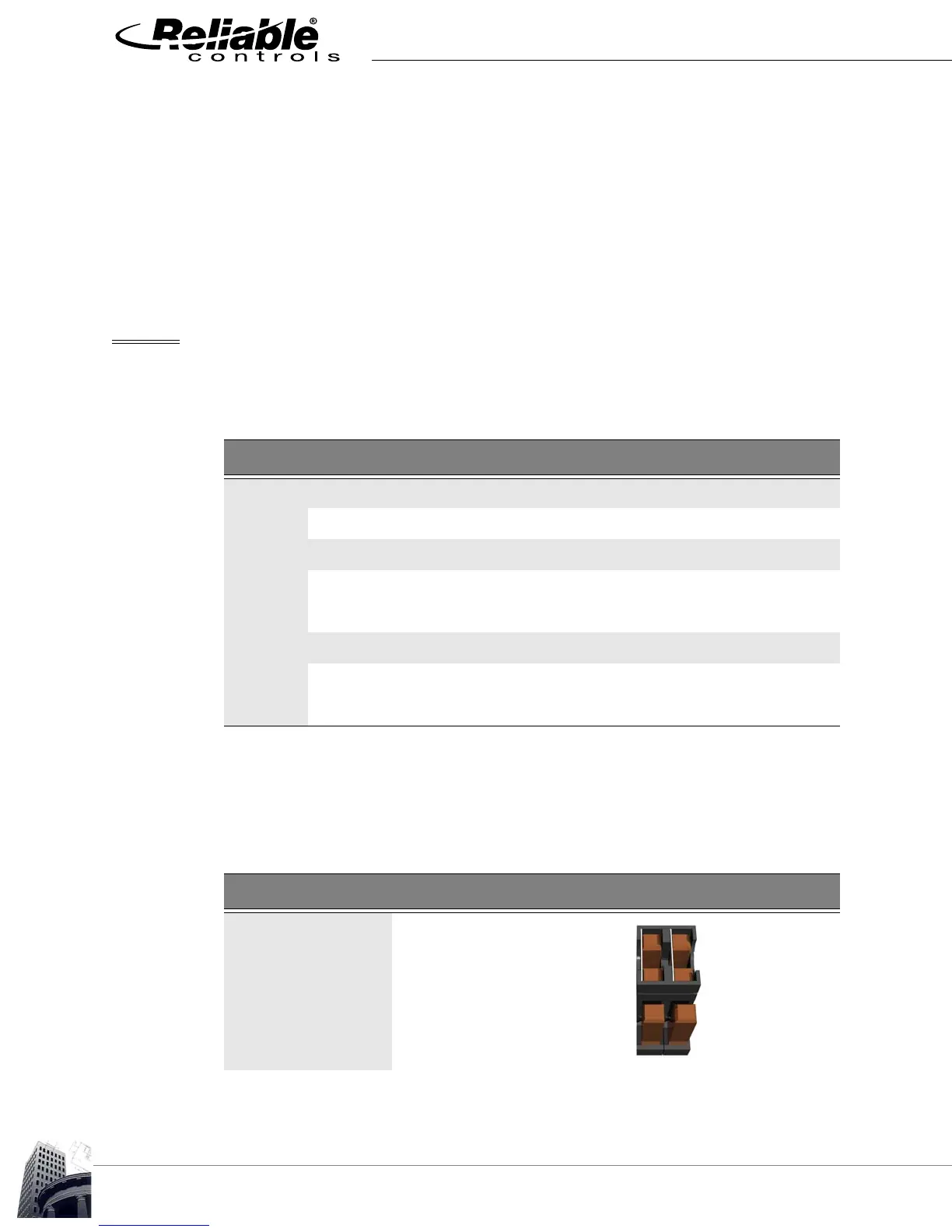

TABLE 6: OUTPUT JUMPER SETTINGS
Jumper Position Jumper Type Image
Up Relay
