Reliable Controls SMART-Space Controller User Manual

33
 2012-2015 Reliable Controls Corporation
BACNET NETWORK APPLICATIONS
USER GUIDE
INPUT/OUTPUT CONFIGURATION
SMART-SPACE CONTROLLER
™

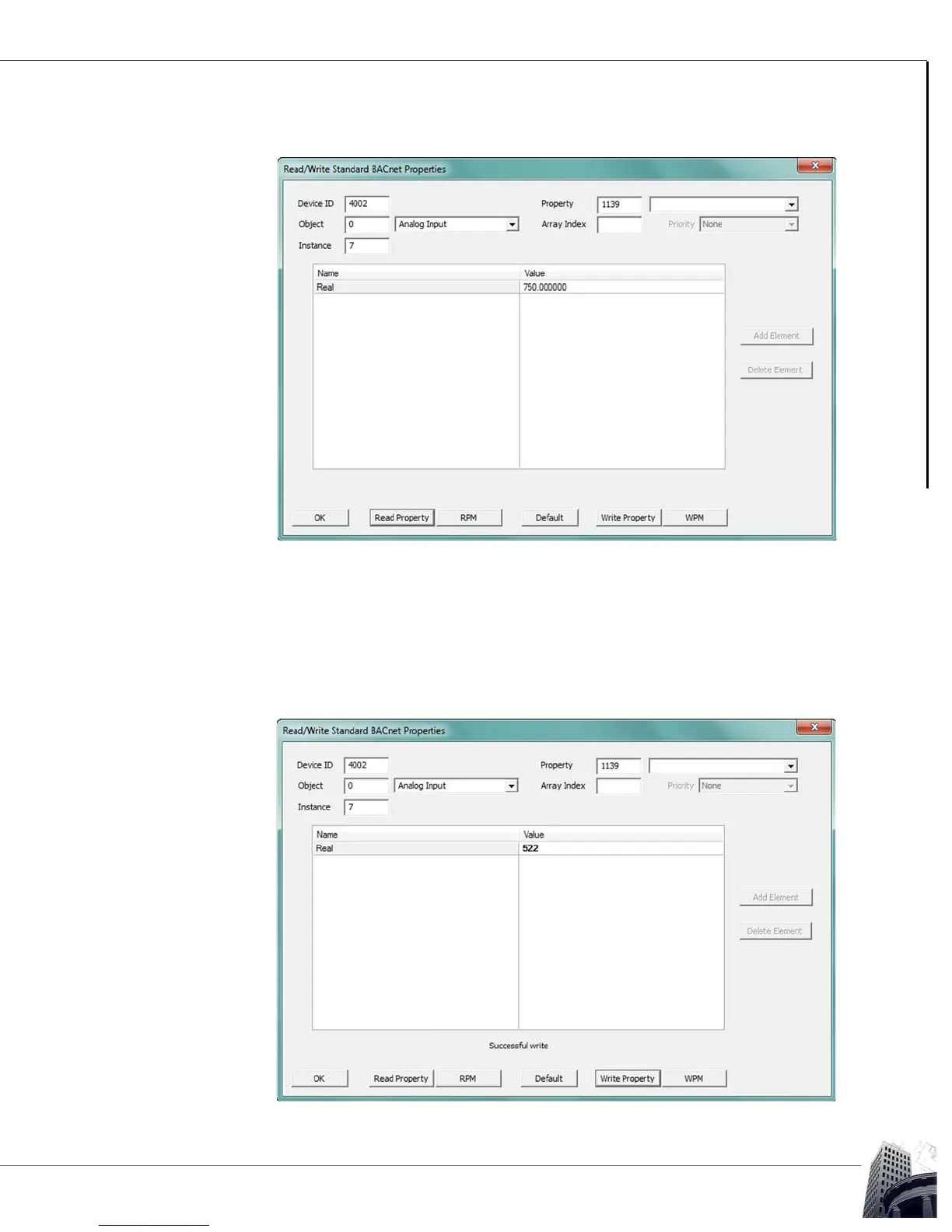

3 Click the Read Property button at the bottom of the dialog box to read the
present value sensed by the SSC CO2 sensor. In the example above, the value
displayed in the central frame is 750.000000.
4 Type over the present value displayed with a more accurate value of CO2
concentration. In the example below, the sensor is being manually re-calibrated
to 522, representing the current concentration of CO2 in the measured space.

Reliable Controls SMART-Space Controller Specifications

General

Brand	Reliable Controls
Model	SMART-Space Controller
Category	Controller
Language	English
