BACNET NETWORK APPLICATIONS
USER GUIDE
INPUT/OUTPUT CONFIGURATION
SMART-SPACE CONTROLLER
™
UNIVERSAL OUTPUTS
An output with jumper set to the universal position provides a 0–12 VDC output with a
maximum current load of 20 mA. The outputs are configured with RC-Studio to be two-
position or modulating.
Typically, the universal outputs on a SMART-Space Controller are used for modulating
control of a valve or damper actuator.
SMART-Space Controller outputs that can be configured as universal outputs always have
two terminals per output, positive (e.g., Out1+) and negative (e.g., OUT1-). The negative
terminal is connected internally to the COM terminal. Figure 28 shows the recommended
method for wiring an SSC universal output to a typical 0–10 VDC modulating actuator and
a standard pilot relay.
Down Universal
The metal strip in the square output jumper must be vertically aligned. Installing the jumper
with the metal strip horizontally aligned will result in incorrect output operation.
Relay outputs should be the first choice for two-position control. If a universal output is to be
used for control of a pilot relay, care must be taken to ensure the pilot relay draws less than
20 mA.

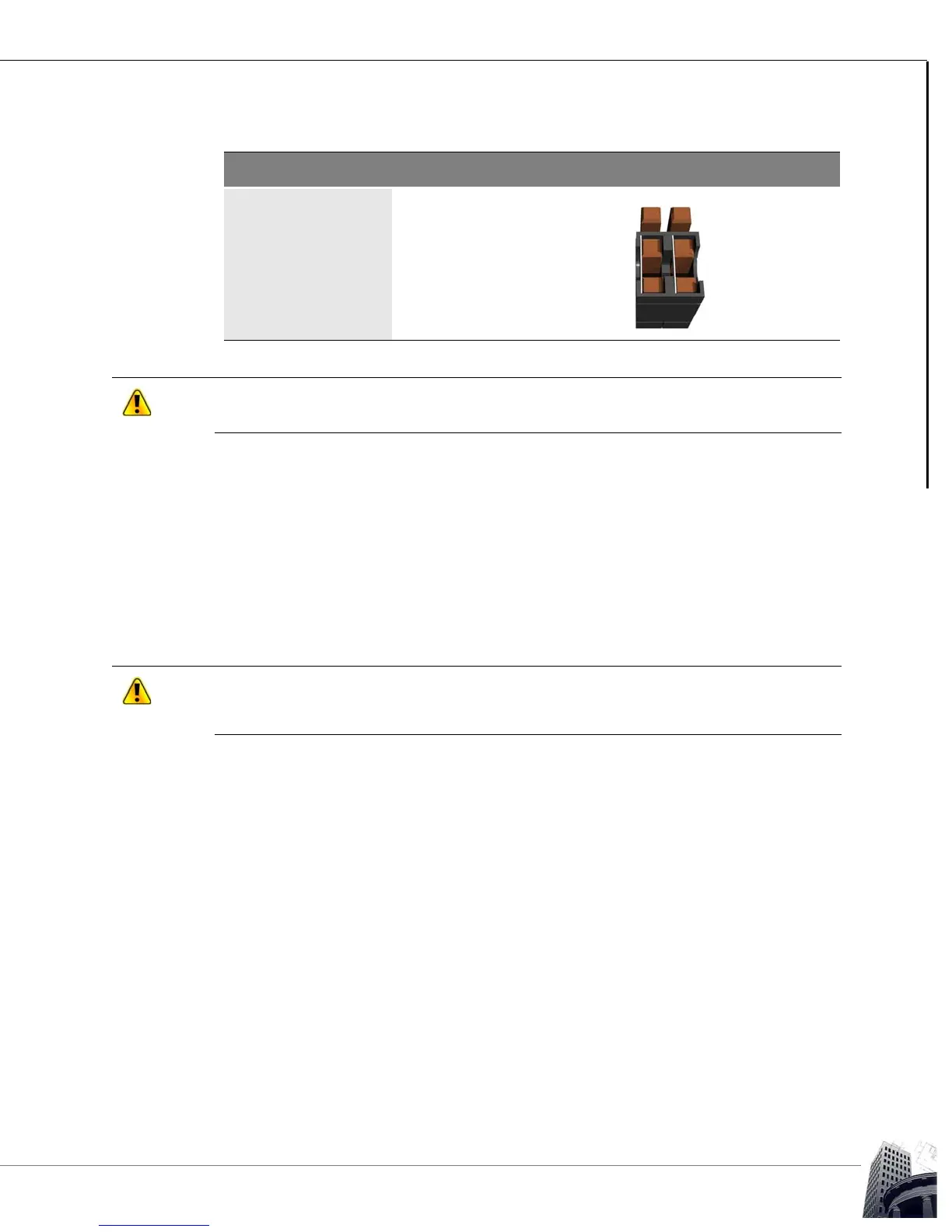

TABLE 6: OUTPUT JUMPER SETTINGS
Jumper Position Jumper Type Image
